MODEL 2200
www.comtecltd.com For Kasco Corp use only.
15
SERVICING THE PRESS
UNPLUG/DISCONNECT THE PRESS BEFORE PERFORMING ANY
SERVICE
In the upper control panel of the Press are the indicator light junction box, a fuse for
the heaters, and thermostat circuit. To check or replace the fuse, unscrew the three
screws holding the panel to the machine and lift the panel up. This will expose the
terminal strip and the fuse. (See Figure 9)

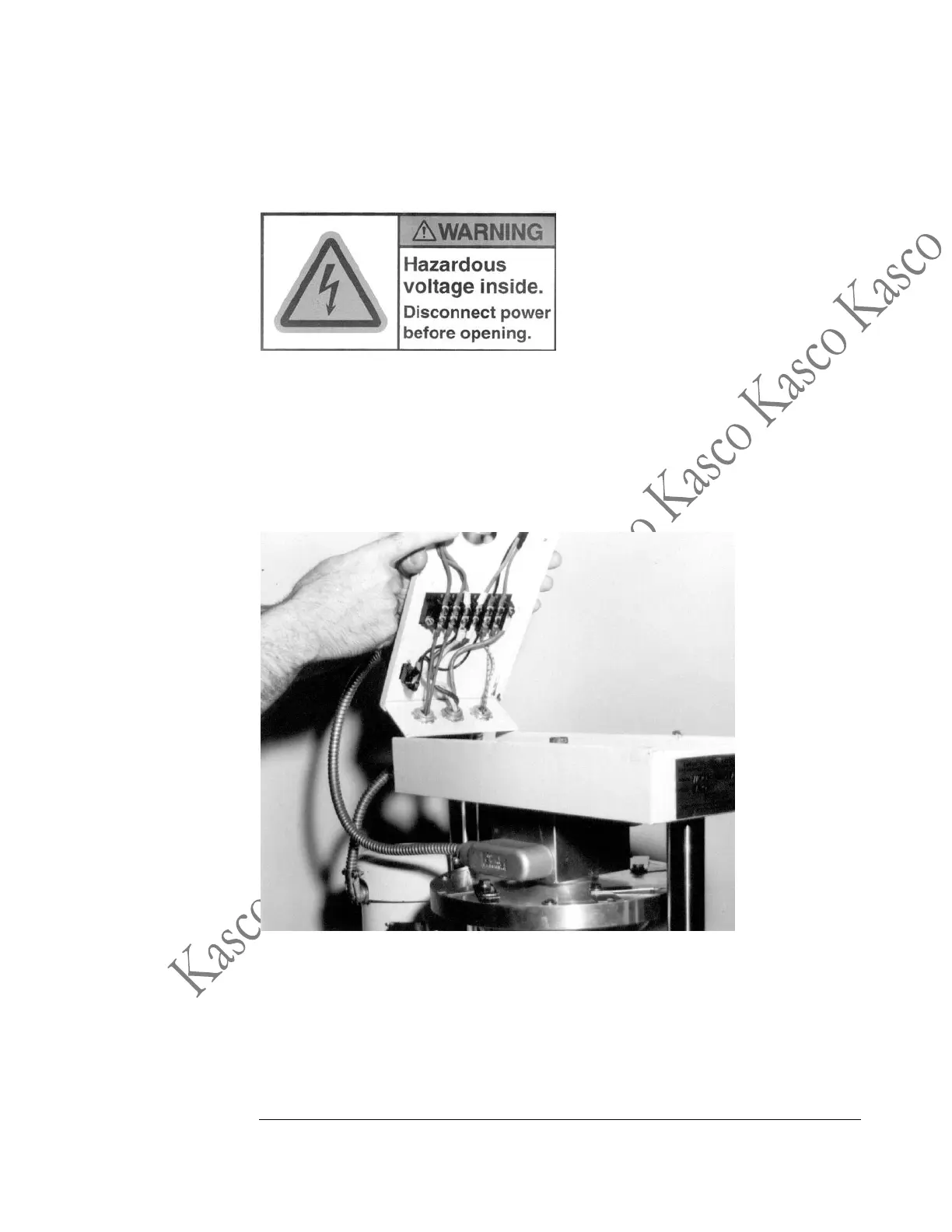

Figure 9 Upper Control Panel Removed
The heating elements of the machine can be accessed under the cover on the left hand
side of the heater block (See Figure 10 and Figure 11).
