MNC-0300-036 9 of 26 Revision E
Unpacking and Installation
Power and Interface Interconnections
When performing the procedures in this section refer to the Wiring and
Interconnect Drawings for your specific amplifier. These drawings are
located in the appendix titled Interconnect Drawings.
Prime Power Connections
The AC Prime Power receptacle is located on the amplifier front panel.
Nominal line voltage is 100 to 260 VAC (180 to 260 VAC on some high
power units), 47-63 Hz, single phase. The amplifier will operate when the
AC line voltage is anywhere in the specified range. Figure 3 , Connector
J2 Pinout for Standard Unit shows the pinouts for standard ODU. The
Prime Power Connector Part Number is C016-20C003 200 12. The
Mating Connector Part Number is C016 20D003 200 12.

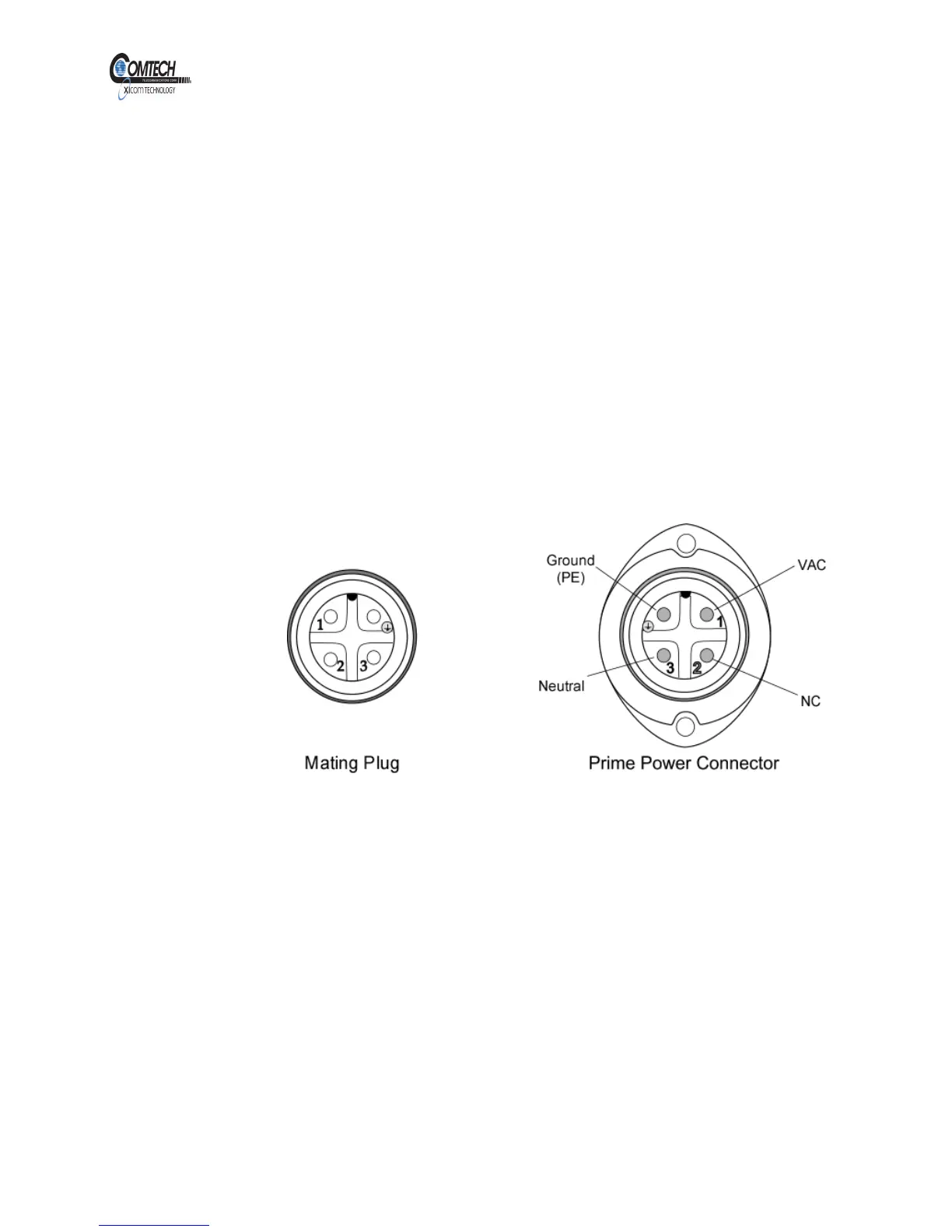

Figure 3, Connector J2 Pinout for Standard Unit
Refer to the Outline Drawing in the appendix titled Mechanical Drawings.
EAR EXPORT CONTROLLED: The information contained in this Manual refers or relates to a product that is subject
to the U.S. Export Administration Regulations (EAR). Transfer of data herein by any means to a Foreign Person,
whether in the U.S. or abroad, may require an export license from the U.S. Department of Commerce.
