MNC-0300-036 18 of 26 Revision E
Unpacking and Installation

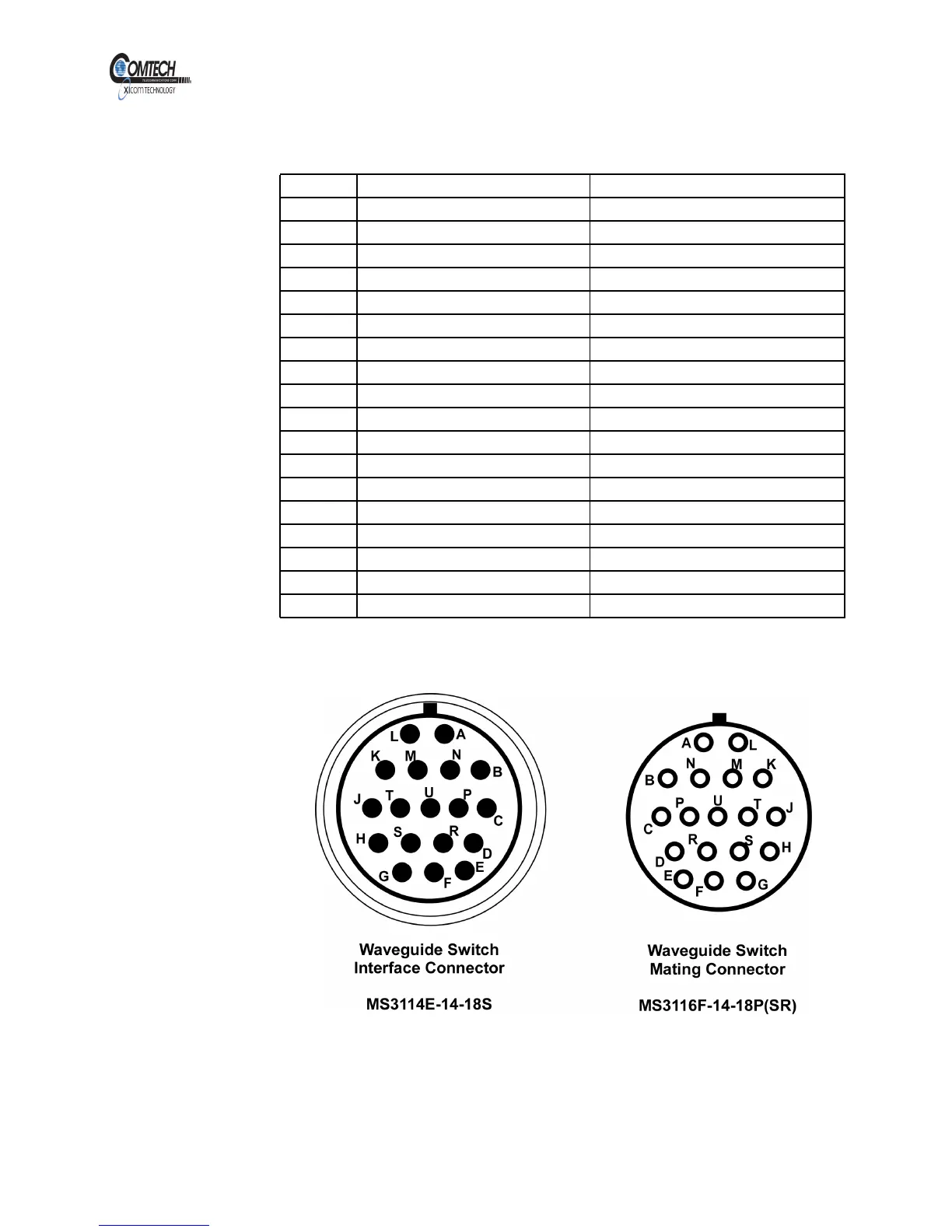

Figure 9, Waveguide Connector Pin Layout
Table 3, J6 Waveguide Switch Connector Pinouts
PIN Legacy Interface Function Updated Interface Function
A WG SW1 POS A CMD WG SW1 POS A CMD
B WG SW1 POS B CMD WG SW1 POS B CMD
C WG SW2 POS A CMD WG SW2 POS A CMD
D WG SW2 POS B CMD WG SW 2 POS B CMD
E WG SW1 POS A IND WG SW1 POS A IND
F WG SW1 POS B IND SG SW1 POS B IND
G WG SW1 RF INHIBIT WG SW1 RF INHIBIT
H WG SW2 POS A IND WG SW2 POS A IND
J WG SW2 POS B IND WG SW2 POS B IND
K WG SW2 RF INHIBIT WG SW2 RF INHIBIT
L SUM FAULT OUT SUM FAULT OUT
M SUM FAULT IN SUM FAULT IN
N GND GND
P GND GND
R A/B AMP SELECT ADDRESS SELECT 1
S GND ADDRESS SELECT 2
T GND SUM FAULT IN 2
U GND +24 V
