3. Overview Feeder

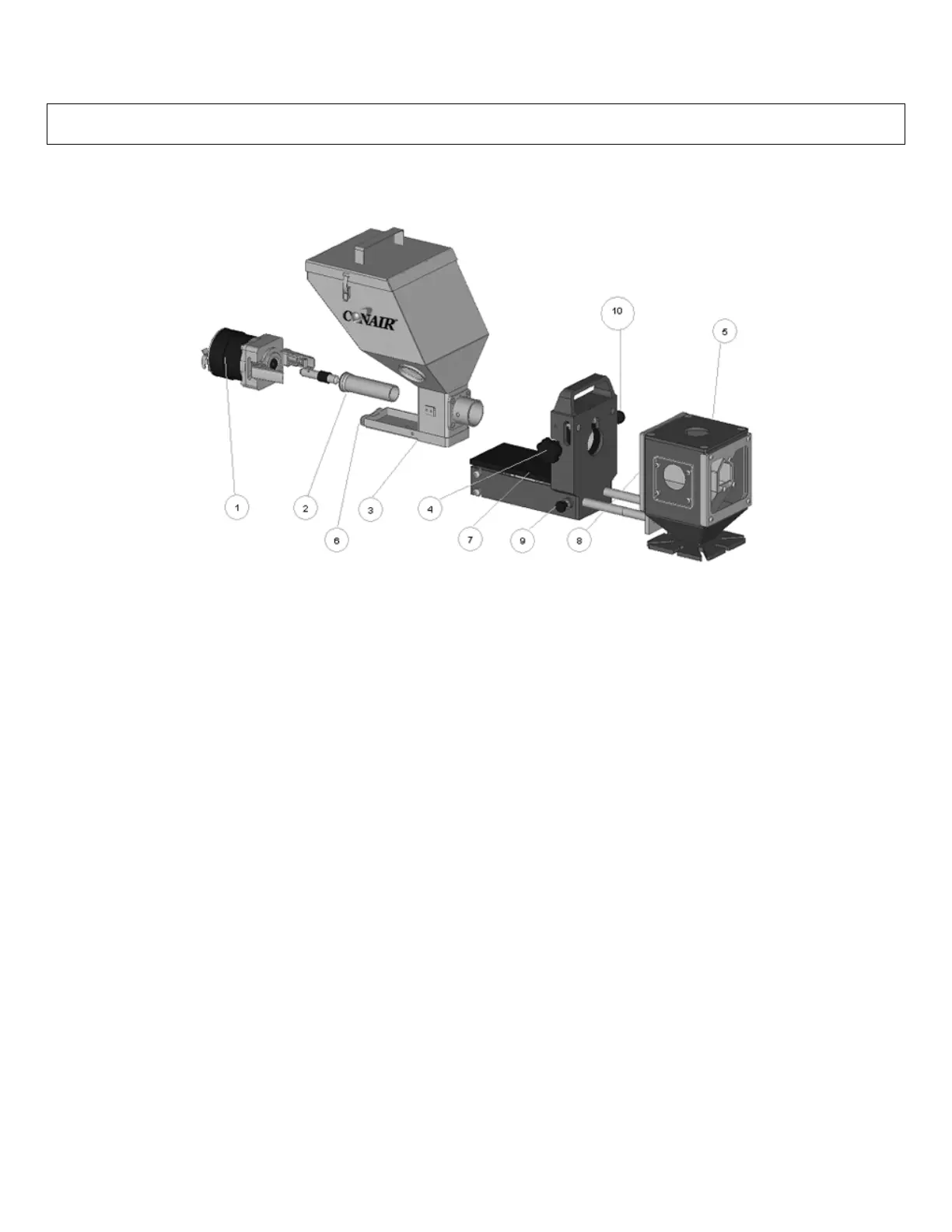

3.1 TrueFeed Component overview
L Note that the Dual TrueFeed will have two (2) of all the components listed above, except the
standard NST40 throat adapter. The Dual TrueFeed only requires one (1) throat adaptor.
1 Stepper motor
2 Dispensing cylinder
3
Hopper 0.2 ft
3
{6 liter}
4 Thumb knob M10x40
5 Standard NST40 Throat adaptor
6 Material discharge slide (in closed position)
7 TrueFeed Load frame
8 Slide frame (Optional)
9
Slide locking bolt
(locking the slide-out position)
Only supplied together with the optional slide mechanism
10
Slide locking bar
(locking the slide-in position)
Only supplied together with the optional slide mechanism
3 Dual Feed TrueFeed Manual
