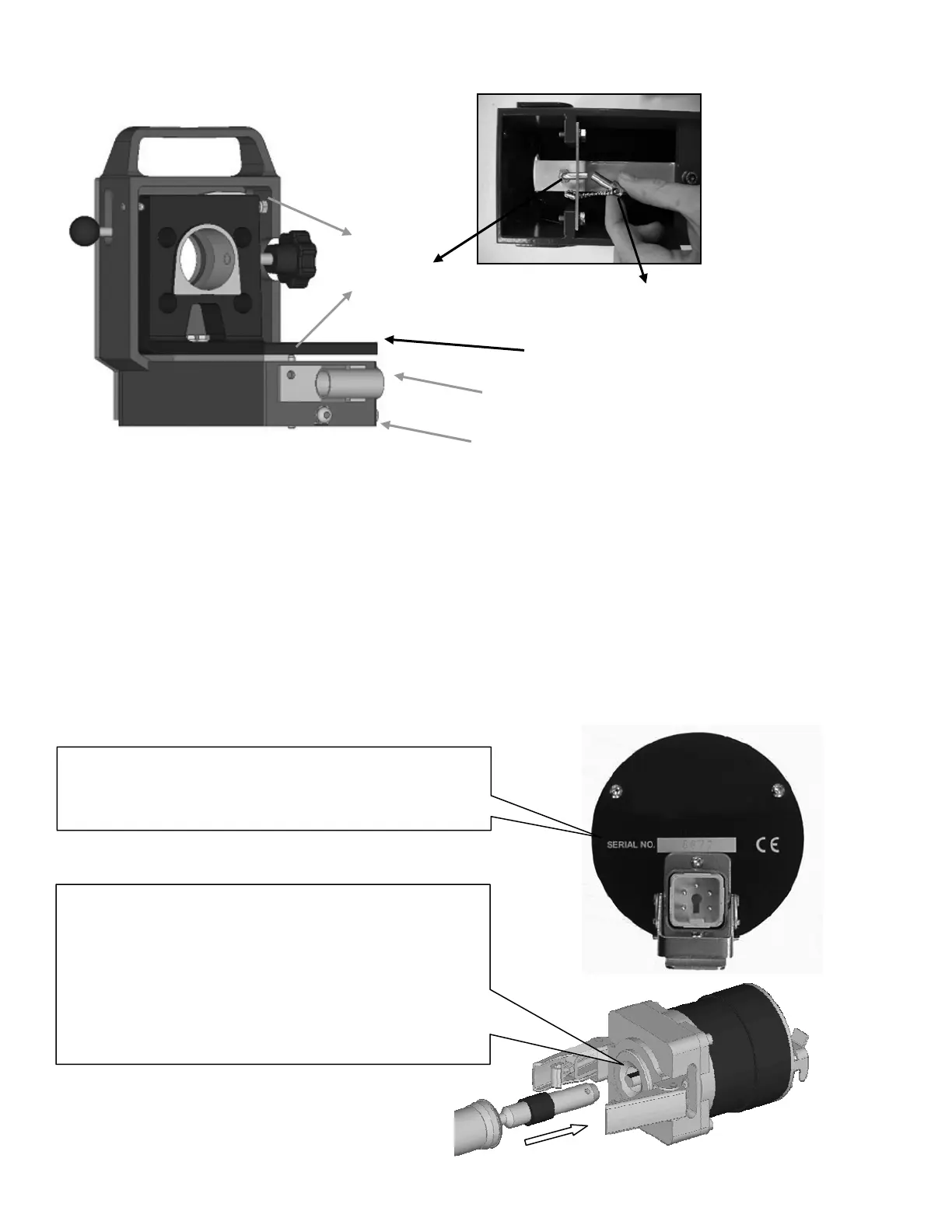

3.2 Weighing frame
IMPORTANT: Do not touch the weighing frame (and dispensing unit) while feeding.
It will have influence on the feeding.
IMPORTANT: Do not touch the safety bolts under the weighing platform. These are for overload
protection. There must be some space between the safety bolts and the frame.
3.3 Motor and feeding system
There are two main feeding systems, the dispensing cylinder and the feed screw.
(For more information see Section 5)
Safety bolts
(total of 4)
Balance frame
Transport protection pin
(Remove before operation)
Hopper loader tube support
(when option selected)
The serial number for the motor can be found on the
backside of the motor.
Motor shaft:
The motor shaft is equipped with one flat side which
fits precisely in the shaft of the dispensing cylinder.
To connect the dispensing cylinder, put it on the
motor shaft while turning it to the keyed section to find
the flat side of the shaft, then press the dispensing
cylinder completely backwards.
4 Dual Feed TrueFeed Manual
Weighing frame
