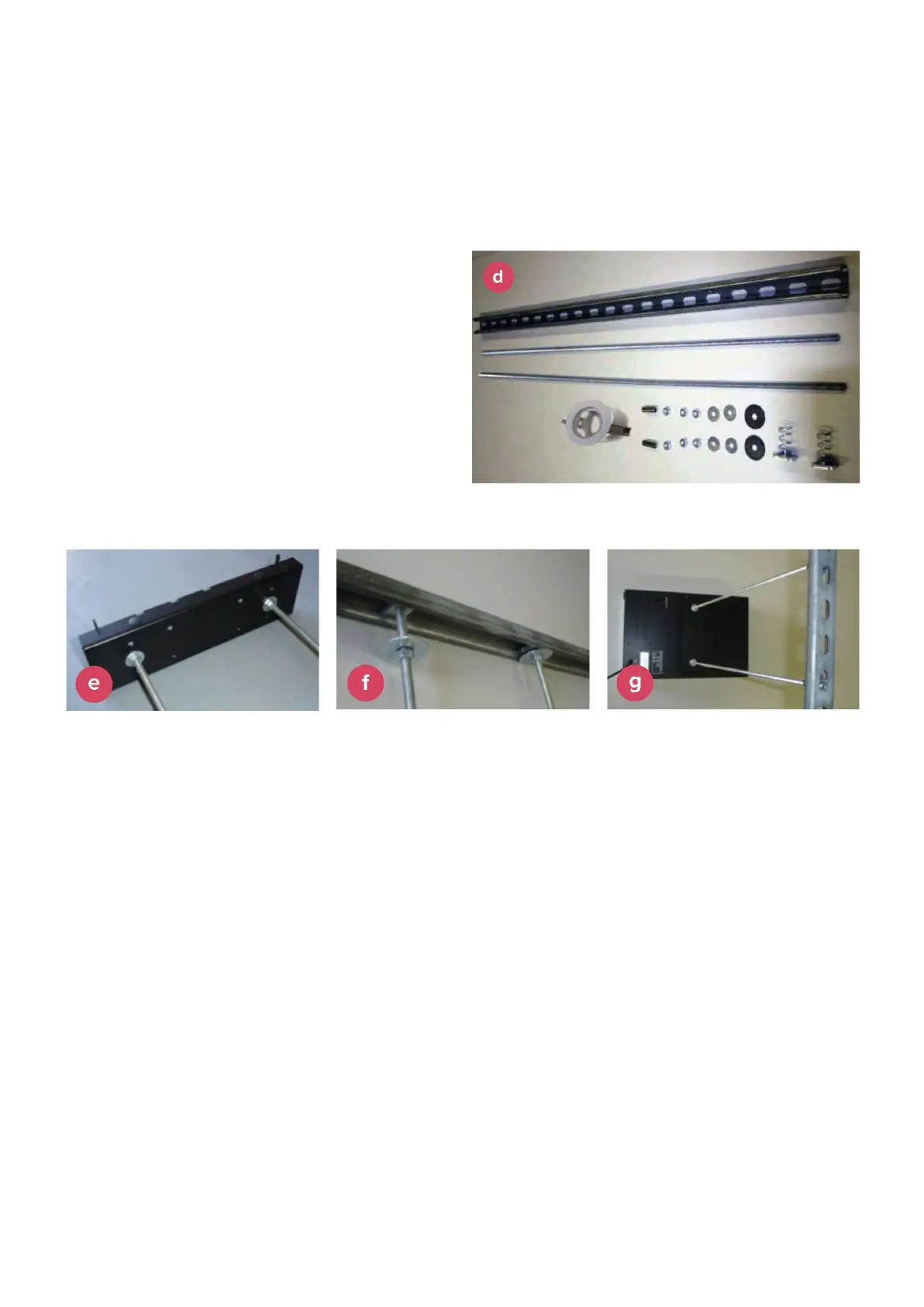

Suspension mounting
Suspending the Smoke Screen is achieved using a ‘Suspension Kit’ comprising a length of unistrut, two sections of
threaded bar and fixings.
Suspension Kit Contents
Unistrut 1 x 1 metre
Threaded bar 2 x 1 metre
Fixings:
1 x ceiling hole surround
2 x drop-in anchors
6 x full nuts
4 x 25mm washers
2 x 38mm washers
2 x channel nuts
Prepare the Smoke Screen by fitting
the angle brackets. Fix the required
length of M8 threaded bar to the
bracket using 4 x nuts and 4 x 25mm
washers.
Fix the unistrut into place. There are
a range of fixings to accommodate
concrete ceiling, girders etc.; if in
doubt contact the fixing supplier.
Attach the threaded bar to the
unistrut using the channel nuts,
38mm washers and M8 nuts. Once
this is done the Smoke Screen can
be lifted into position and the set
screws tightened as above.
Any fine adjustments can be made at
this stage as the nuts and the
threaded bar will take the weight of
the Smoke Screen.
The final assembly, viewed ‘through
the ceiling’ is in the photo. Any hole
made to allow smoke through a
suspended ceiling below the Smoke
Screen can be made good with a
cosmetic hole surround.
11
