2
2.1 POSITIONING
The Smoke Screen should ideally be sited in a covert position away from prying eyes and thereby reducing the
possibility of tamper or an attack. The ideal place for the Smoke Screen is above a ceiling from where the smoke
plume is used to its best effect, bursting on the ground and spreading outwards and upwards through 360°. If no
suitable ceiling location is available then the next best location is a wall mounting as close to ceiling height as
possible.

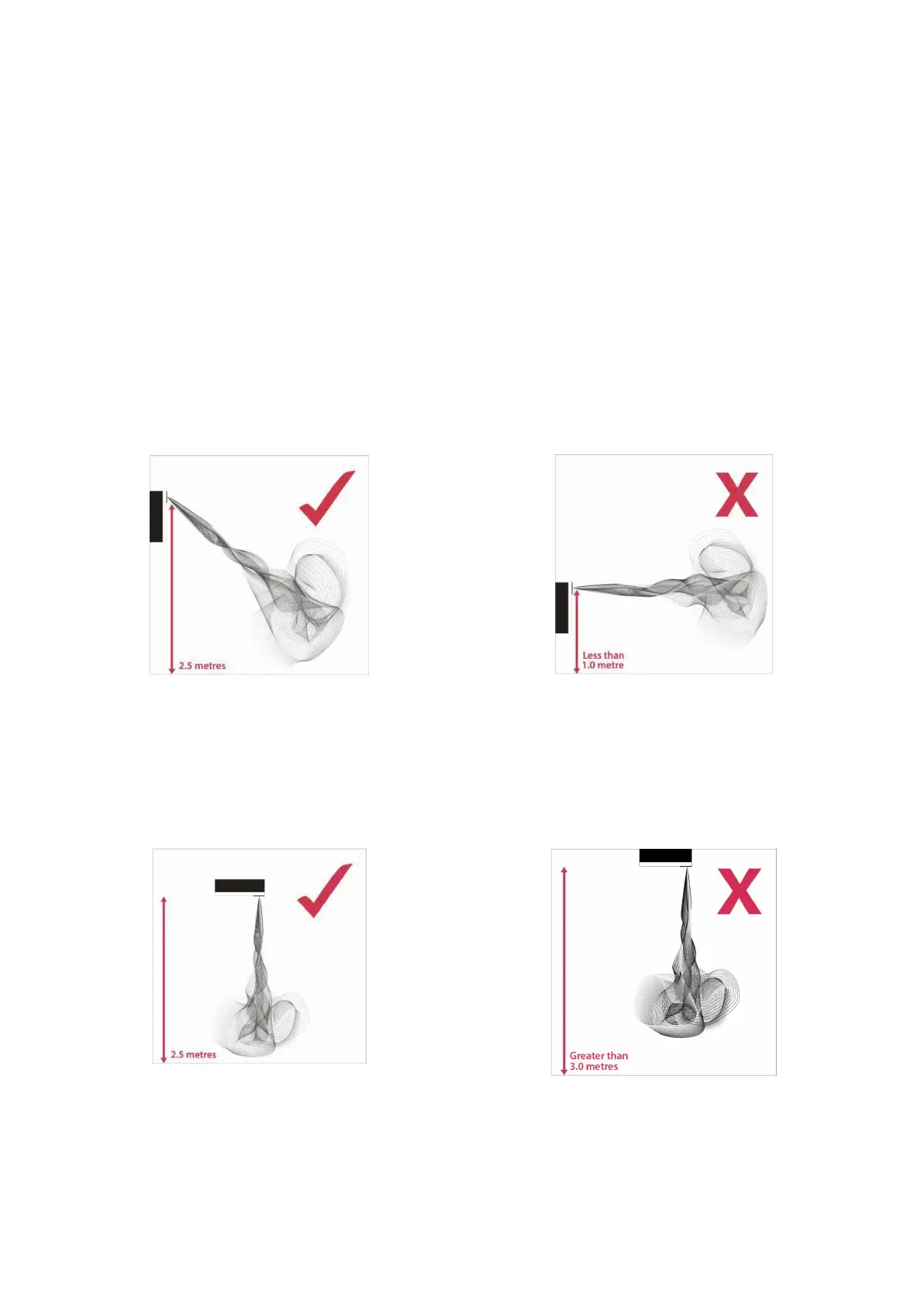

Wall-mounting
The optimum wall mounting position for the Smoke Screen is 2.5 metres above the floor facing the area to be
protected and using an appropriate angle nozzle. The maximum recommended mounting-height above floor level is
3 metres, the minimum is 1 metre and there should be no obstacle within 1 metre of the smoke output nozzle.
Ceiling-mounting
The optimum wall mounting position for the Smoke Screen is 2.5 metres above the floor facing the area to be
protected and using an appropriate angle nozzle. The maximum recommended mounting-height above floor level is
3 metres, the minimum is 1 metre and there should be no obstacle within 1 metre of the smoke output nozzle.
8
