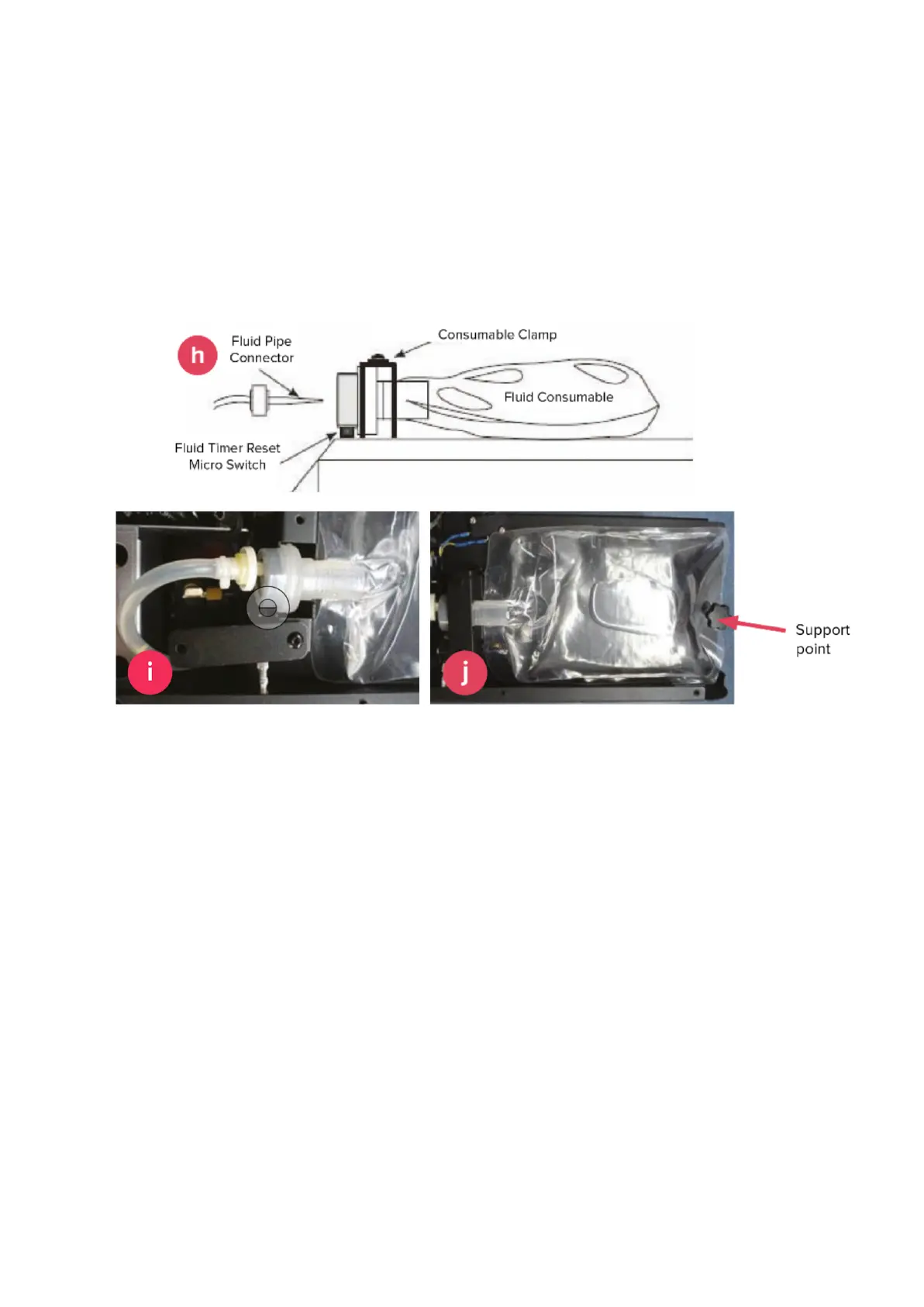

Changing a fluid consumable
Ensure that power is applied to the Smoke Screen; this should only be battery power. Remove the Smoke Screen
cover. Unscrew the consumable holder retaining screw and the consumable support screw. Push the fluid probe into
the “out” position in the consumable neck. Place the other end of the consumable onto the support and insert the
retaining screw. Carefully locate the consumable neck in the cradle (h) and (i). Close the retaining gate and insert the
retaining screw (j). Ensure the consumable neck is held correctly and the fluid micro switch is closed properly.
External reservoir
This facility is designed only for demonstration purposes; please contact Concept Smoke Screen if you wish to use
this function. When a 5 litre external fluid bottle is used and the timer is set to 5,000ml via the LCD control panel the
function of the micro switch on the fluid consumable holder is changed and a consumable should not be fitted. In this
mode, with power applied to the Smoke Screen, momentarily pressing and leaving open the micro switch on the fluid
consumable holder resets the fluid timer to 5,000ml available.
ALWAYS REPLACE A FULL FLUID CONSUMABLE OR 5,000ML BOTTLE EVERY TIME THE FLUID CONSUMABLE
HOLDER MICRO SWITCH IS RESET. FAILURE TO DO SO MAY RESULT IN DAMAGE TO THE SMOKE FLUID PUMP.
WHEN A NEW FLUID CONSUMABLE IS FITTED BATTERY POWER MUST BE APPLIED TO THE SMOKE SCREEN TO
RESET THE FLUID TIMER.
19
