P41

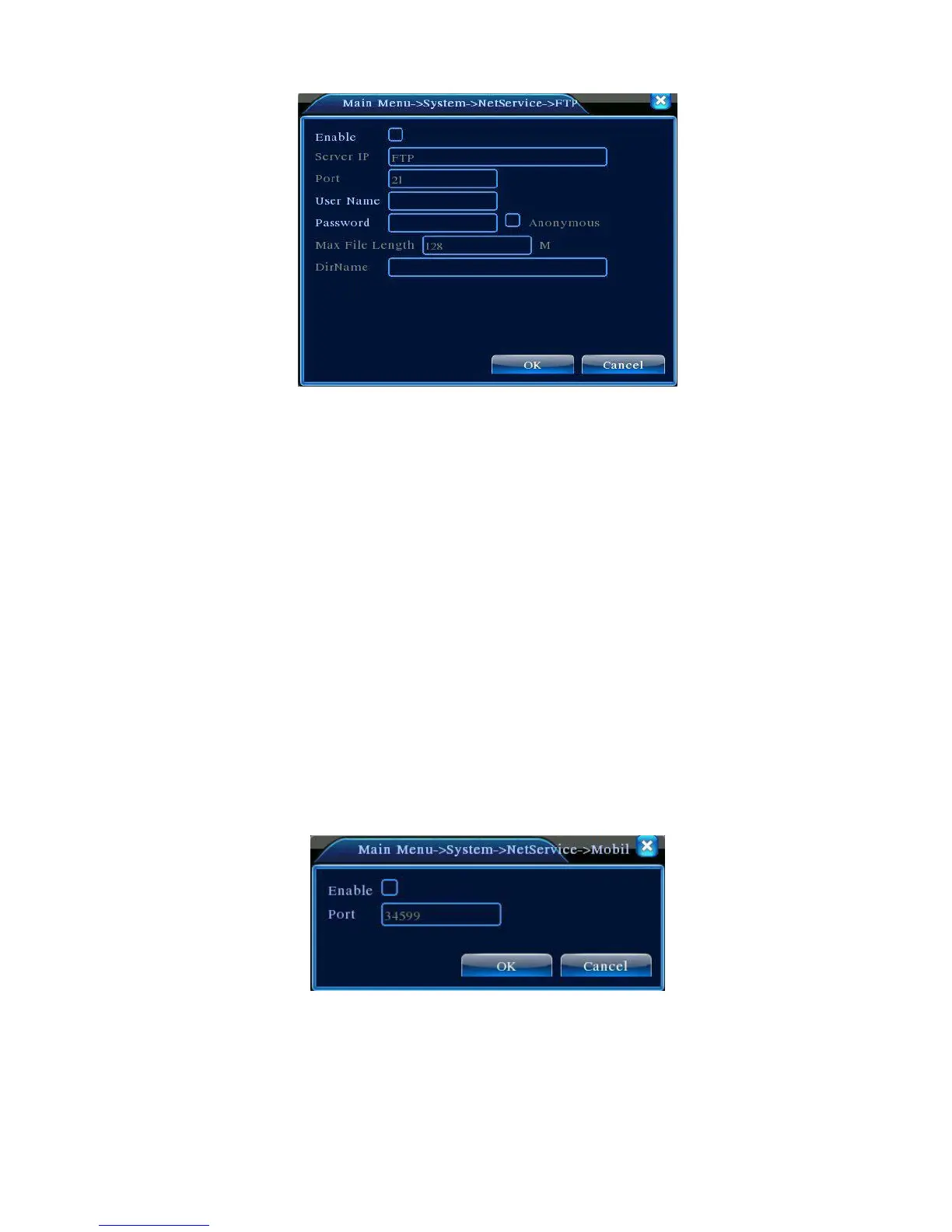

Picture 4.28 FTP setup
【Enable】Click Enable,then all settings will be available
【Server IP】IP address for FTP server
【Port】Domain Port of FTP,default 21
【User Name】User name of FTP
【Password】Password of user
【Anonymous】： enable anonymous,no need setting user name and password
【Max File Length】Max length for upload files at every packed,default 128M
【Dir Name】： The directory of upload file.
Note: The user should be with authority to upload files.
【Mobile Monitor Setup】
To visit the device by mobile,please make a router mapping of this port and use CMS to monitor and
operate it by protocol.
Picture 4.32 Mobile Monitor Setup
【Enable】 Select it to make sure abnormal function workable
【Port】 It’s a port of mobile monitoring which you need to make a router mapping of if want to visit
it by mobile
