INSTALLING THE CRYOWIZ™
Installation of this product should be performed only by CONCOA or an authorized CONCOA factory
trained technician. Knowledge of cryogenic installations and systems and certification as a CONCOA
authorized installation and repair technician are required.
The Installer must read and understands these instructions.
The CryoWiz™ uses four mounting tabs to secure the system to a wall or to a panel - see the General
Arrangement and the Back Detail Showing Mounting Tabs below.
Mount the
CryoWiz™
at a height
convenient for making connections that also clears dewars and other systems in the installation space.

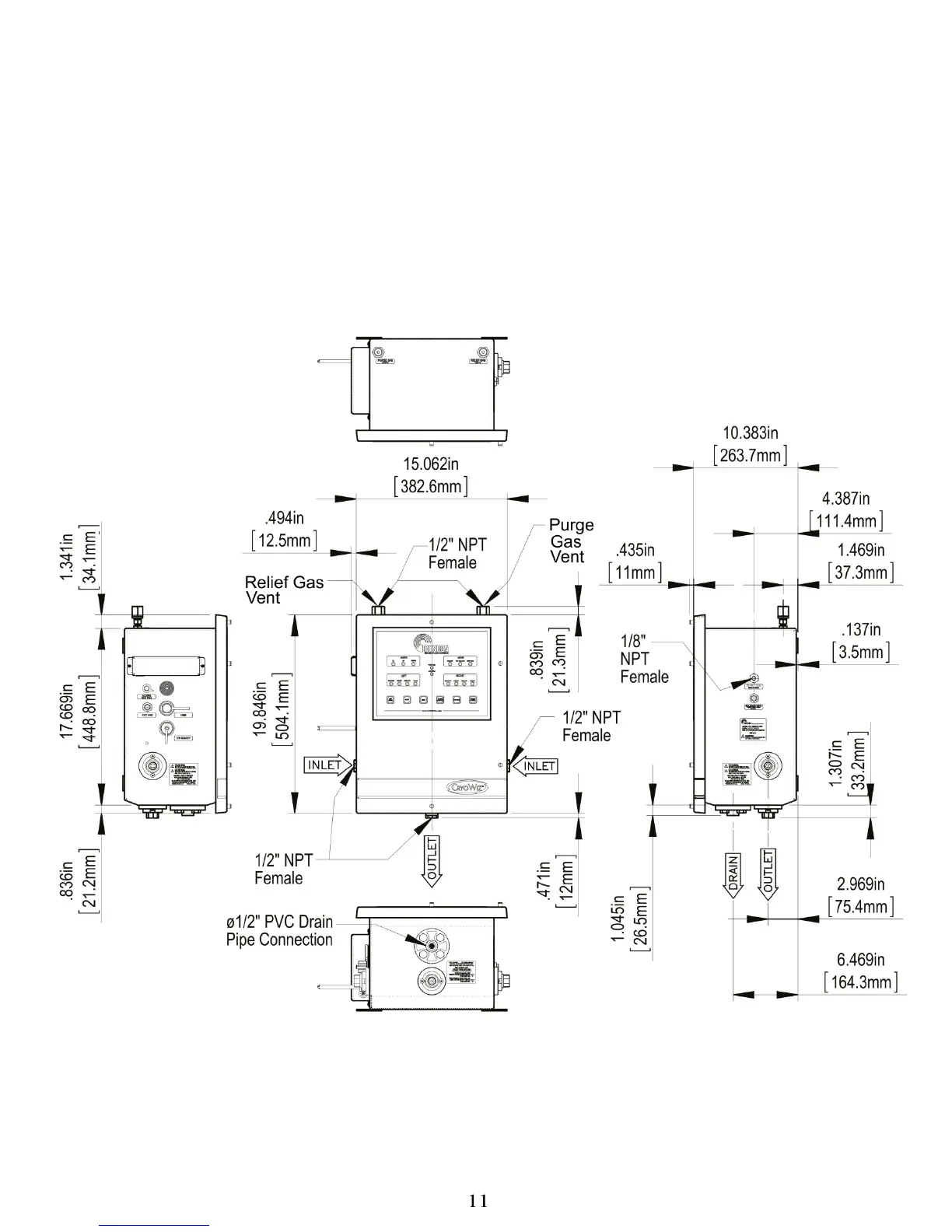

GENERAL ARRANGEMENT
