DIP SWITCH FUNCTION
SW1-1
unassigned
SW1-2
unassigned
SW2-1
OFF = Keypad Not Locked | ON = Keypad Locked
SW2-2
unassigned
SW3-1
OFF = 5 Independent Alarms | ON = 1 Master Alarm
SW3-2
OFF = Alarm Will Not Sound | ON = Alarm Will Sound
Table 3
DIP SWITCHES
Make sure power is not supplied to the system. Open the front door by loosening the 4 screws on the front cover.
Dip Switch Settings

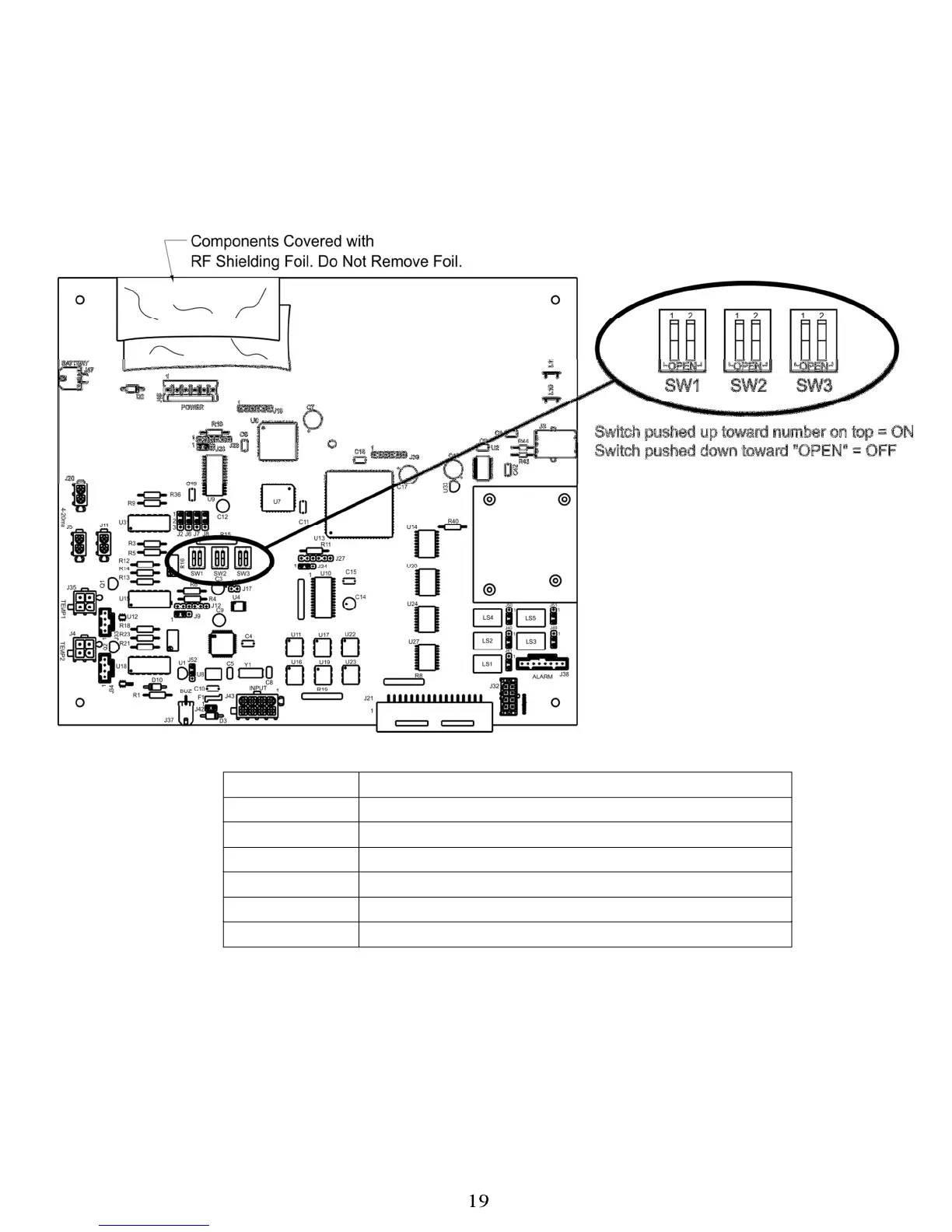

The keypad lockout, alarm configuration, and audible alarm silence features can be set using dipswitches on
the circuit board. See figure below and Table 3.
