3.3.4 Option 4 – Auto Shutoff Mode
The auto shutoff mode can prolong battery life for
applications using the battery input power to the
indicator.
Option 4 allows the indicator to be configured to shut
off automatically when idle for a specified time (1–9
minutes). Parameter 4.2 can be enabled to reset the
shutoff timer if motion is detected on the scale after
the timer is started.
Option 4 is not a “sleep mode”; once the indicator
shuts off, it must be turned on again. With Option 4
enabled, the on/off switch becomes active (see
Figure 3-12) and can be used to restart the unit.
NOTES:
•Option 4 requires hardware setup inside the
indicator enclosure and must be enabled at the
factory.
•Option 3 (time and date) must be enabled and
set to use Option 4.
Prompts for auto shutoff mode (OP.4) are shown in
Table 3-13.

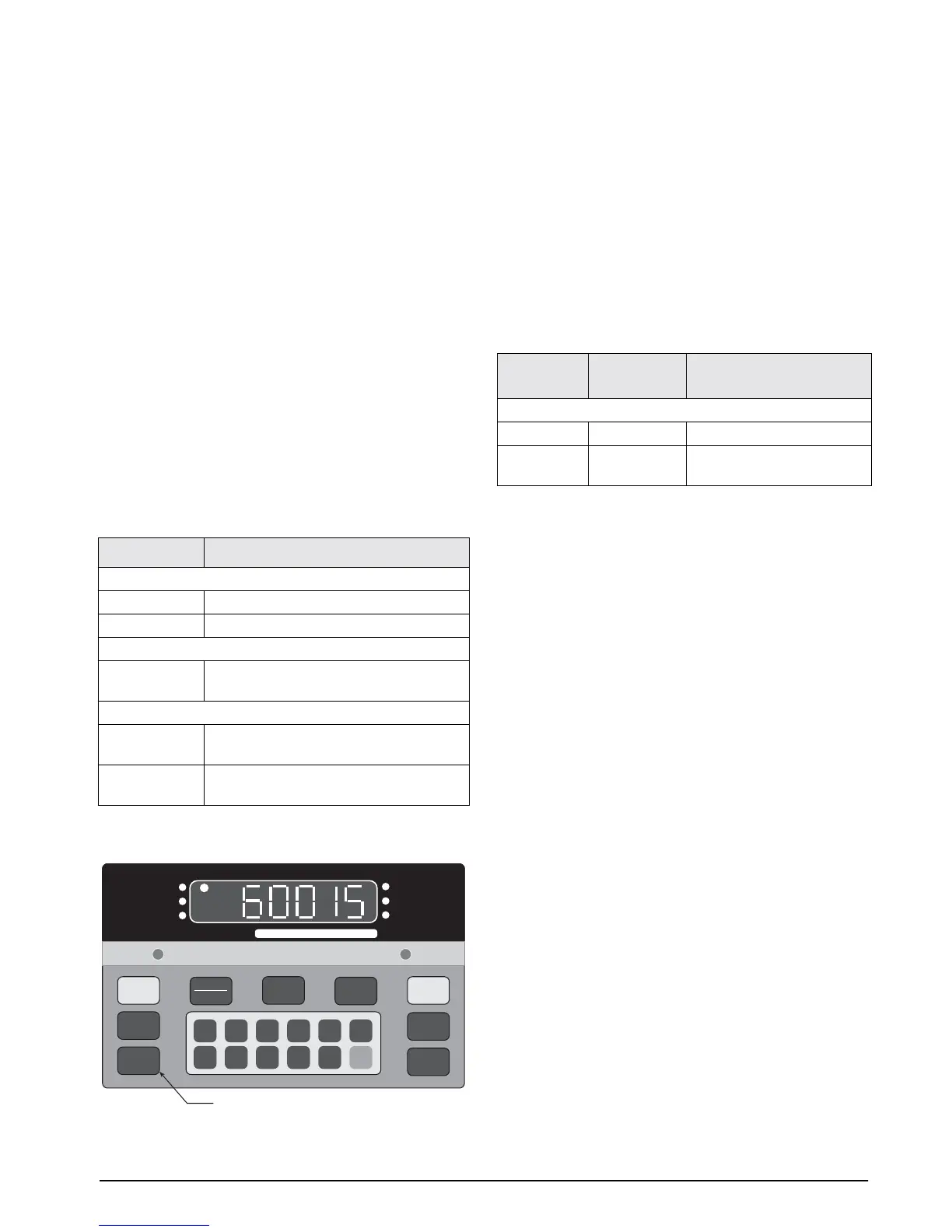

Figure 3-12. On/Off Switch for Option 4
3.3.5 Option 6 – Five-Point Linear Calibration
There are five calibration points that can be entered
sequentially. Calibrations using fewer than five points
will linearize the curve up to the last data point.
Enabling Option 6 places the indicator in a
linearization calibration when the unit is in the
calibration mode (SW1-1 closed on front panel DIP
switch). Use the five-point linearization procedure
outlined in Section 4.3 on page 30 to perform a scale
calibration when Option 6 is enabled.
The five-point linearization calibration (OP.6) is
shown in Table 3-14.
Prompt Display Interpretation
Auto Shutoff Mode
OP.4 oFF Off: Auto shutoff mode disabled
OP.4 on On: Auto shutoff mode enabled
Shutoff timer value
4.1 n Set number of minutes, 1–9, before
shutoff
Motion detection
4.2 on On: Shutoff timer is reset if motion is
detected before timer expires
4.2 oFF Off: Indicator always shuts down when
shutoff timer expires
Table 3-13. Option 4 Configuration Selections
1
6
2
7
3
8
4
9
5
0
CE
ENT
TARE
RECALL
ZERO
NET
GROSS
TARE
lb/kg
CONV
PRINT
1 SET
POINT
2 SET
POINT
CAPACITY
600 x 0.1
ZERO
NET
GROSS
lb
kg
MOTION
ON/OFF switch
Prompt
Display
Interpretation Notes
Five-point linearization
OP.6 oFF Off —
OP.6 on On Enter up to five linearization
points
Table 3-14. Option 6 Configuration Selections
