10

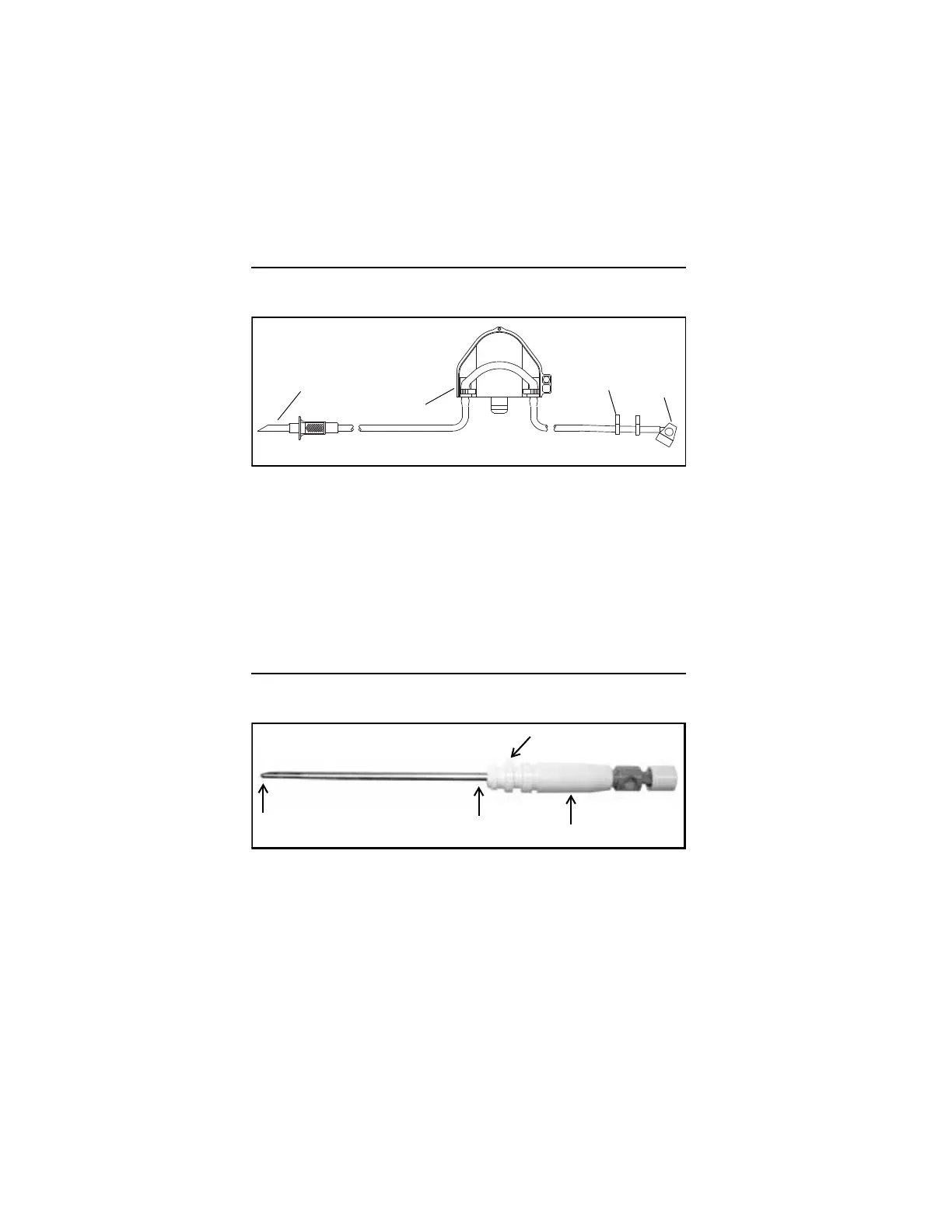

2.1.2 Tubing Sets Descriptions
The E9416 (4.2 mm) and E9417 (3.7 mm) Tubing Sets are used to provide
irrigation to irrigated shaver blades.
1. Spike Line — Connects to the fluid supply for fluid distribution to the
surgical site.
2. Cassette — Attaches to the peristaltic pump of the controller to aid in fluid
delivery.
3. Handpiece Cord Clips — Used to attach the tubing to the handpiece
cord.
4. Irrigation Collar — Attaches to the blade hub to allow fluid
distribution to the surgical site.
2.1.3 Shaver Blades, Bur Description
1. Cutting tip.
2. Shaver blade/bur hub- connects to the shaver handpiece.
3. Alignment key.
4. Irrigation port (on irrigated shaver blades only).
E9416/E9417 Tubing Set
1
2
3
4
