2.2 Assembly/Installation Instructions

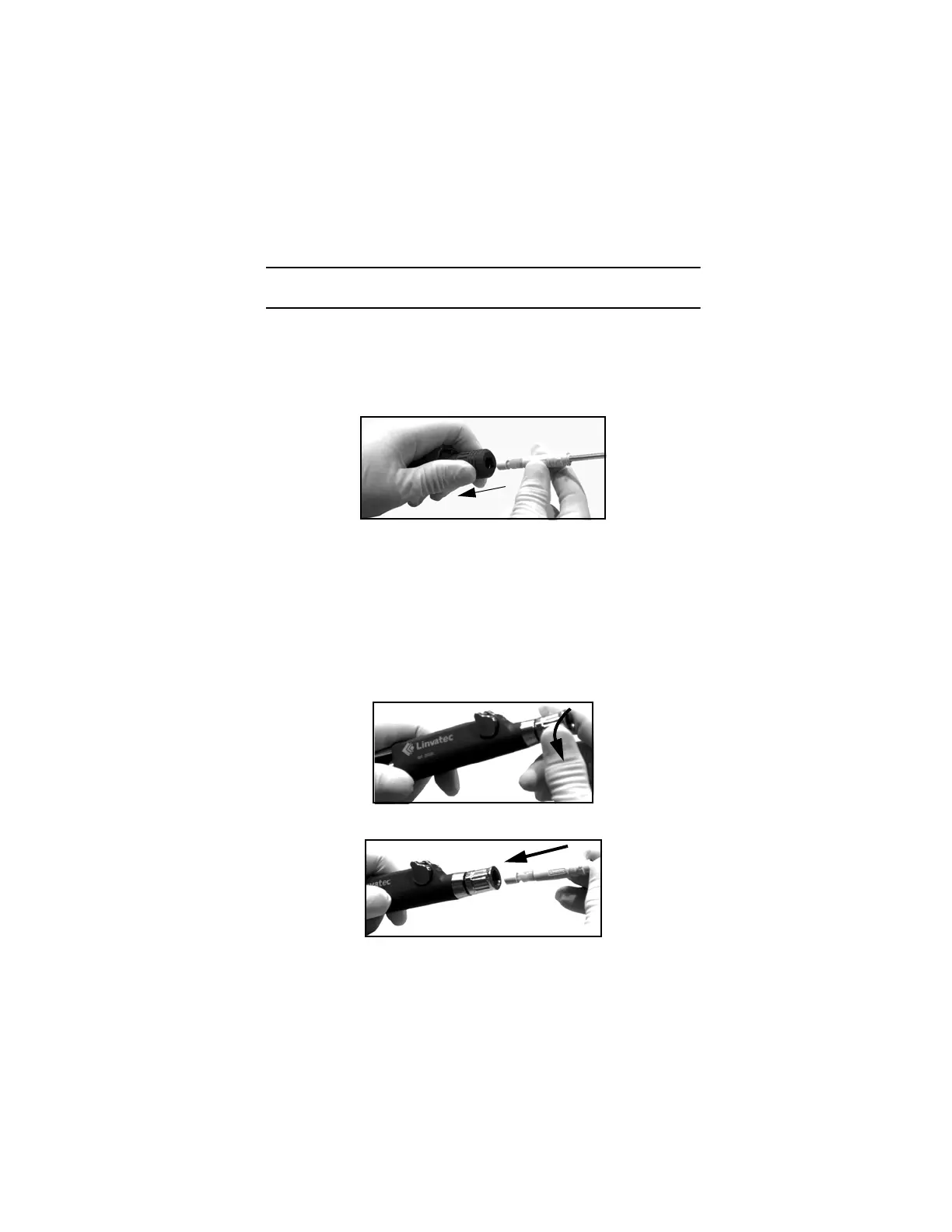

2.2.1 Shaver Blade Installation and Removal
To install and remove a shaver blade into the MC9840 handpiece:
1. While pulling the quick-connect locking collet back towards the body of the
handpiece, completely insert the shaver blade hub into the collet. Ensure
alignment key is in line with the slot on the locking collet.
2. Release the locking collet. The shaver blade is now locked into place.
3. The shaver blade cutting window may be placed in any position by simply
rotating the collet, which allows 360° positioning of the blade cutting
window.
4. To remove the blade, repeat the above steps and pull the blade out.
To install and remove a shaver blade or bur into the E9005
handpiece.
1. Open the collet by turning the locking collet counterclockwise as viewed
from the collet end of the handpiece.
2. Insert a shaver blade or bur until the shaft is completely seated.
