9
b.
b.
b.
b. When the" Start "is displayed on the menu,if the memory still have the former data
in
storage ,the
"
Do you really want to recover the memory" dialog box will be displayed when pressing the
"menu"button ,then press the"up button"or"down button"to choose setting,then press the"menu
button"to confirm setting,the dialog box will be displayed as figure 10:It needs to set the starting
time for data storage by users , users can change the setting value by pressing the"up button"or"down
button",and confirm the setting value by pressing the"menu button", the black cursor will move to
next place after setting.When the black cursor move to"Yes"(store) or "No"(don't store), press the"up
button"or"down button"to choose setting,then press the"menu button"to confirm setting.
c.
c.
c.
c. When the" Stop "is displayed on menu,the ＂ Do you really want to stop recording ＂ dialog box
will be displayed when pressing the "menu button".then press the"up button"or"down button"to
choose setting,then press the"menu button"to confirm setting.

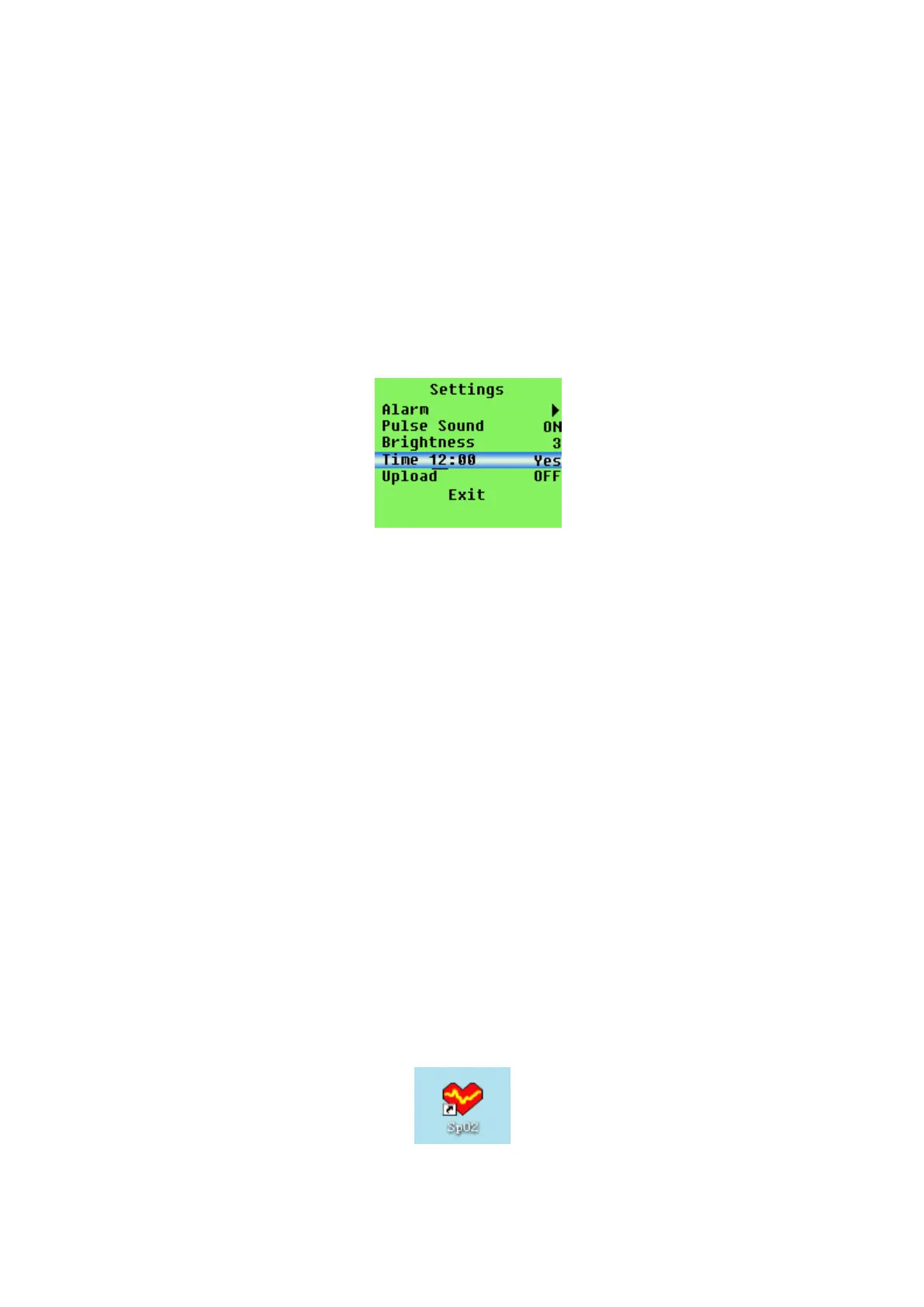

Figure 10.
d.
d.
d.
d. If the data storage function is being turned on, when return to the measuring interface, a red
"REC"sign and a flashing red dot would appear on screen, which means the device is
in
a state of
storing.
e.
e.
e.
e. In the state of storing, whatever interface the device is on (measuring interface, menu interface),
the sign "Recording" would appear on the screen
in
30 seconds, and then the screen will be
automatically shut down. If pressing any button(power on/off excluded) at this moment, the sign
"Recording" would appear on the screen, and then the screen will be automatically shut down
again;
if
pressing the "power on/off button", the device would return to the former interface.
f.
f.
f.
f. I f turning on the data storage function, the former data storage will be automatically removed.
g.
g.
g.
g. In the state of data storing, after the screen is automatically shut down, the pulse sound
indication would be off for saving power.
h.
h.
h.
h. When the storage space is full,
it
displays “ Memory is full ” on the screen, and then shut down
in
a few seconds.
But
it
will still display “ Memory is full ” by the next time you turn on the device on
the purpose of warning the user,
if
press any button(power on/off excluded) again,
it
will enter the
measuring interface.
e
e
e
e ） Stored
Stored
Stored
Stored data
data
data
data transmission
transmission
transmission
transmission setting
setting
setting
setting
Firstly, please install the affiliated software into the computer, and then two icons would appear on
the desktop after installation. The icon of SpO2 is a program for receiving real-time data which is
shown as figure 11 ; the icon of SpO2 Review is a program for receiving stored data which is shown
as figure 12 .
Figure 11.SpO2 program
