Contec CMS800G - Monitor and Setup; The Monitor Overview


Single, Twins Monitoring optional

9 chip pulse width beam probe

Extra-long life, high-resolution built-in thermal printer matrix, the output waveform, text, and
other information

Built-in communication port, can be connected with central monitoring system.
3 Monitor and Setup
3.1 The Monitor

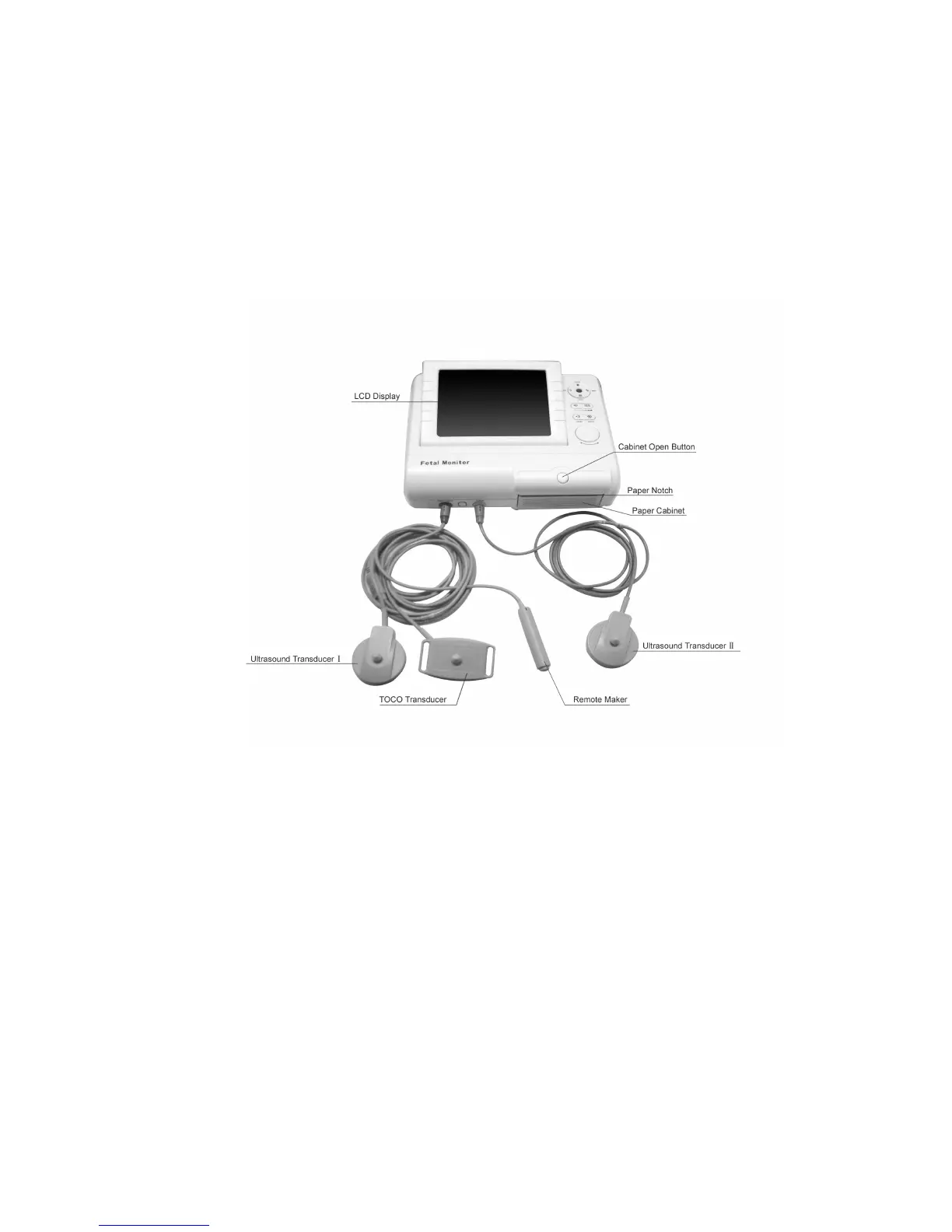

Figure 3.1 Appearance (Twins configuration, only for reference)
3.1.1 Transducer Introduction
Ultrasound TransducerⅠ
④
TOCO Transducer
④
Remote Marker
④
Ultrasound TransducerⅡ
④
1
④
Ultrasound TransducerⅠ
The multi-crystal, broad beam ultrasound transducer is used for monitoring fetal heart
rate(FHR1).The ultrasound transducer operates at a frequency of 1.0MHz. Put the ultrasound
transducer on maternal abdomen to transmit lower energy ultrasound wave to fetal heart, then
receive the echo signal from it.
④
2
④
TOCO Transducer
This transducer is a toco tonometer whose central section is depressed by the forward
displacement of the abdominal muscles during a contraction. It is used for assessment of
frequency and duration of uterine contractions. It gives a subjective indication of contractions
pressure.
④
3
④
Remote Marker
The remote marker is a hand-held switch operated by patient. The mother is normally instructed
