Contec SPC-8520-LA - LVDS LCD Panel Connector: CNK1

3. Hardware Installations
22
SPC-8520-LA , SPC-8521-LA

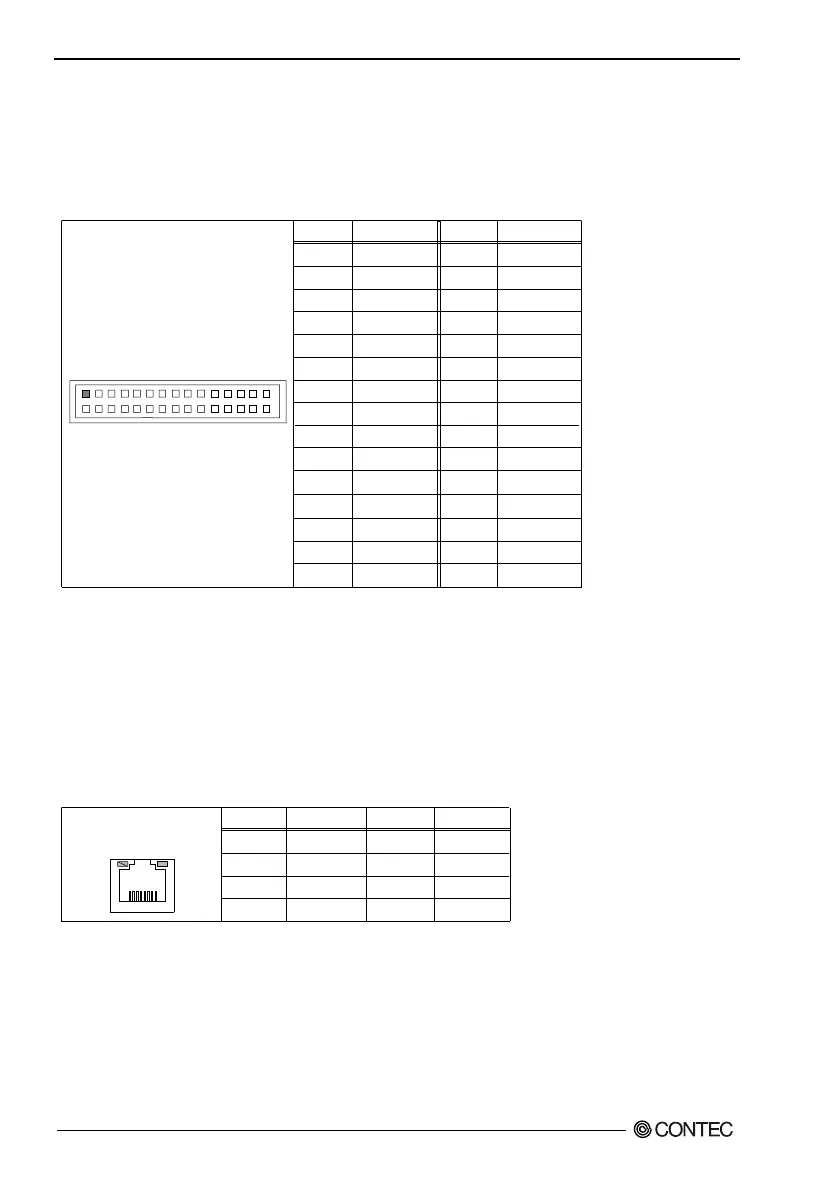

LVDS LCD panel Connector: CNK1
CNK1 consist of 30-pin connector that using the Hirose’s DF13A-30DP-1.25V. The product supports 1
channels of LVDS LCD panel display.
Table 3.12. LVDS LCD panel Connector
Pin No.
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
Function
A_TX1+
A_TX1-
GND
A_TX3+
A_TX3-
GND
LCD_VDD
LCD_VDD
GND
DDC_DATA
Reserved
+5V (BKL)
+5V
+12V
+12V
Pin No.
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
Function
A_TX0+
A_TX0-
GND
A_TX2+
A_TX2-
GND
A_CLK1+
A_CLK1-
GND
DDC_CLK
Reserved
Reserved
BKL_EN
GND
GND
CNK1
Housing: DF13-30DS-1.25C
(HIROSE)
Contact: DF13-2630SCF
(HIROSE)
2
1
30
29
LCD_VDD : +3.3V LCD power out (1A Max.)
+5V(BKL) : Power out controlled by BKL_EN signal (1A Max.)
Reserved : keep none connect
10/100BASE-TX LAN Connector: CNL1
This connector is for the 10/100 LAN adapter 10/100Mbps base-TX RJ45 single port (1x1) tab-up with
LEDs integrated magnetic connector. The follow table shows the pin assignments of this connector.
Table 3.13. 10/100BASE-TX LAN Connector
Function
TX+
TX-
RX+
N.C.
Function
N.C.
RX-
N.C.
N.C.
Pin No.
1
2
3
4
Pin No.
5
6
7
8
CNL1
Link / ACT
LED
Speed
LED
81
Left LED: Speed LED
10M: OFF, 100M: Orange
Right LED: Link/Ack LED
Link: Green, Ack: Blink
