Contec SPC-8520-LA - External Power Connector (Only SPC-8521-LA): CN6

3. Hardware Installations
28
SPC-8520-LA , SPC-8521-LA
External Power Connector (Only SPC-8521-LA)
: CN6
This connector support only SPC-8521-LA. The supply of the power is possible from this connector in
the case that it does not use the Back Plane.

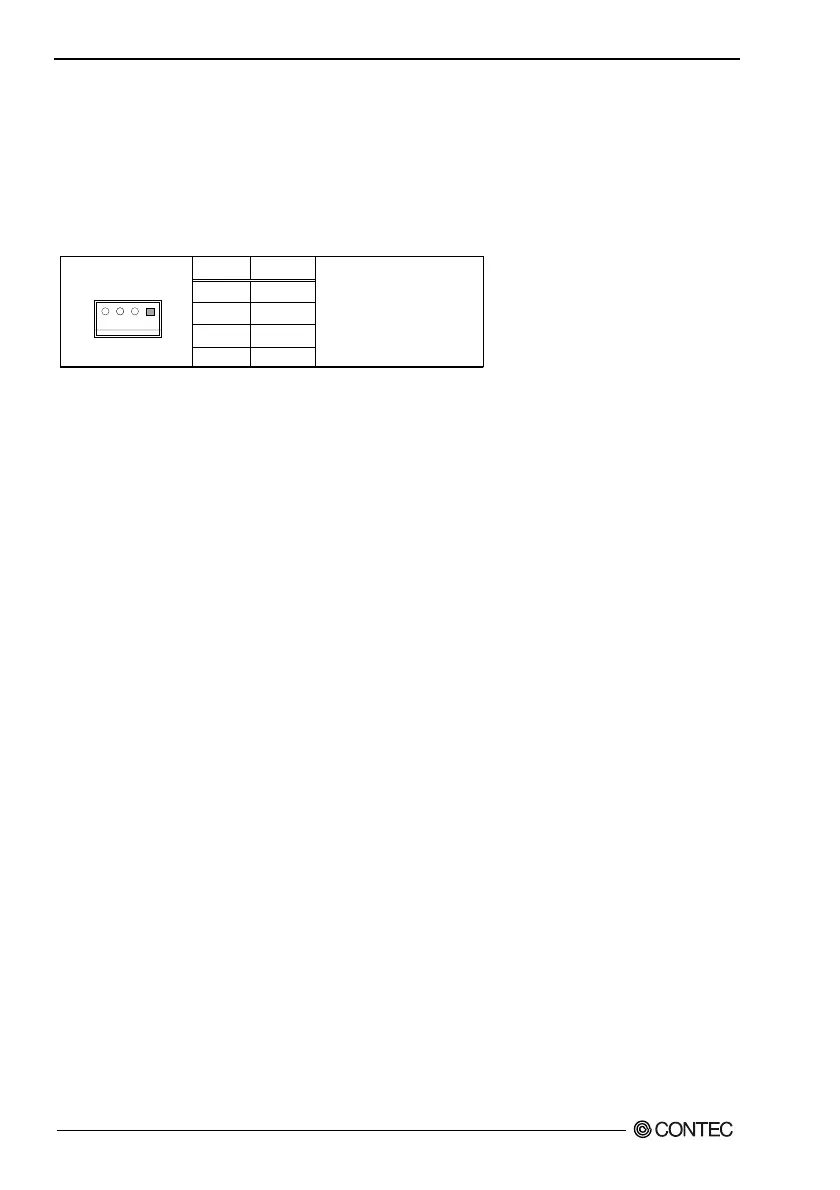

Table 3.23. External Power Connector
Pin No.
1
2
3
4
Function
GND
GND
Vcc(+5V)
Vcc(+5V)
CN6
4 3 2 1
Housing:VHR-4N(JST)
Contact:SVH-21T-P1.1(JST)
