3. Hardware Installations
SPC-8520-LA, SPC-8521-LA
23
Parallel Port Connector: CNP1
The parallel port bracket can use to add an additional parallel port for additional parallel devices. There
are four options for parallel port operation:
- Compatible (Standard mode)
- Bi-Directional (PS/2 compatible)
- Bi-Directional EPP. A driver from the peripheral manufacturer is required for operation.
- Bi-Directional High-speed ECP

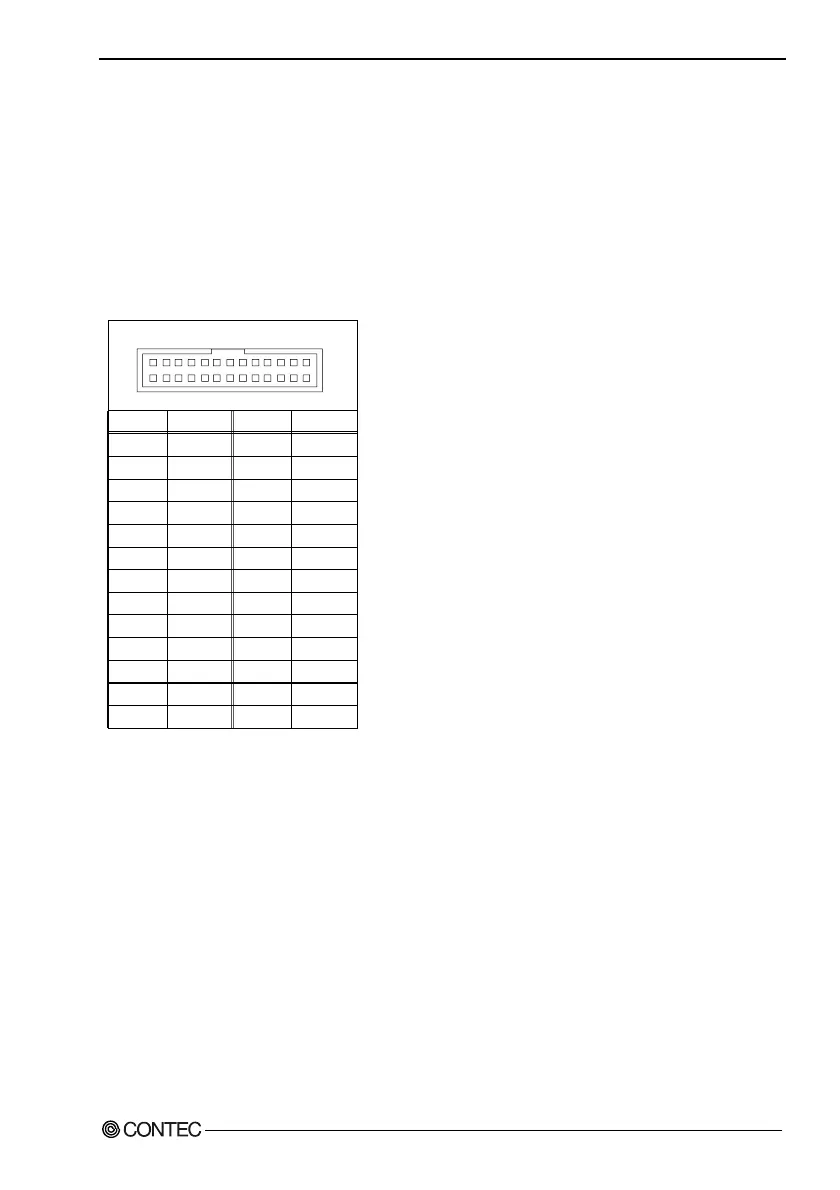

Table 3.14. Parallel Port Connector
Pin No.
1
3
5
7
9
11
13
15
17
19
21
23
25
Function
STROBE
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
ACK
BUSY
PE
SLCT
Pin No.
2
4
6
8
10
12
14
16
18
20
22
24
26
Function
ALF
ERROR
INIT
SLCT IN
GND
GND
GND
GND
GND
GND
GND
GND
N.C.
CNP1
1
2
25
26
