7. BIOS Setup
SPC-8520-LA, SPC-8521-LA
71
Description Choices
Resources Controlled by
The Award Plug and Play BIOS can automatically configure
all the boot and Plug and Play - compatible devices. If you
select Auto, all the interrupt request (IRQ) and DMA
assignment fields disappear, as the BIOS automatically
assigns them.
If you use a manual setup option, you can set to Legacy ISA,
the IRQ/DMA which you do not wish to be assigned
automatically in the next IRQ/DMA Resources setup.
This will prevent the IRQ/DMA number from being
assigned automatically by BIOS.
IRQ n Resources

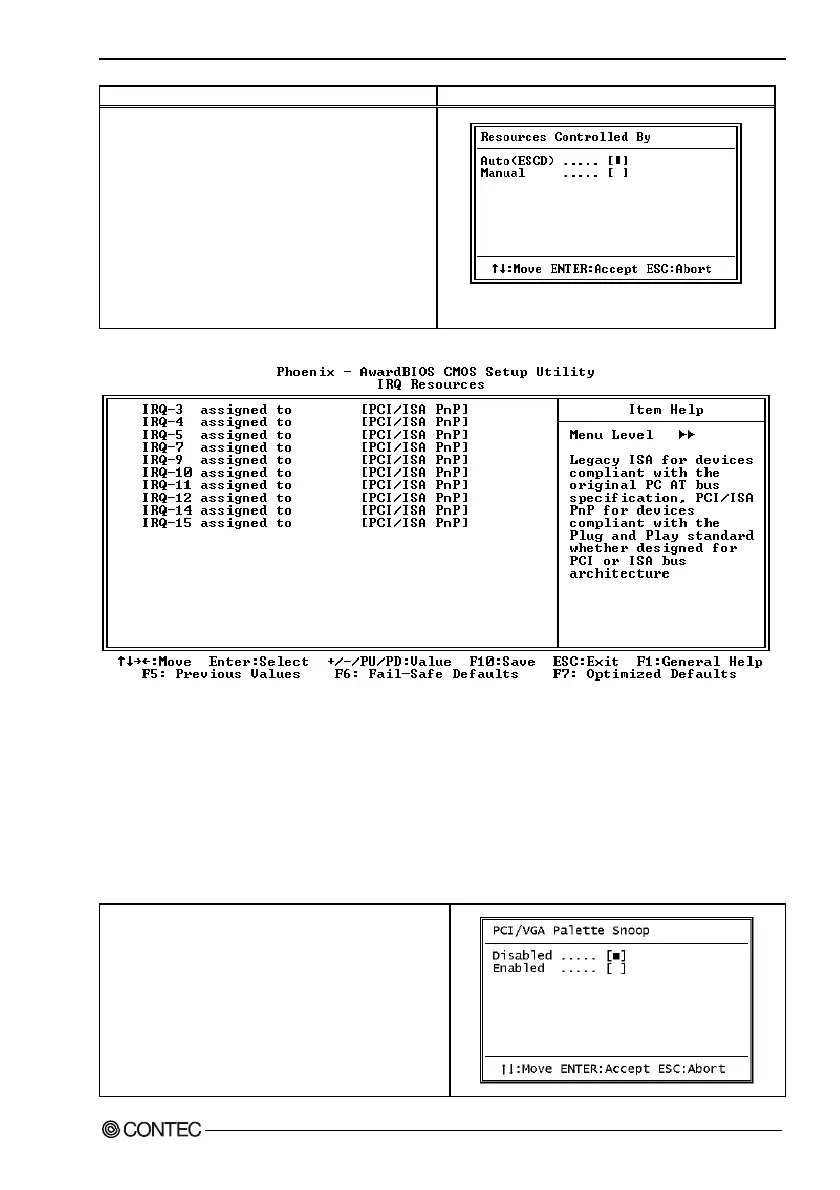

Figure 7.12. IRQ n Resources
When resources are controlled manually, assign each system interrupt as on of the following type,
depending on the type of device using the interrupt.
Legacy ISA Devices compliant with the original PC AT bus specification, requiring a specific interrupt
(Such as IRQ4 for serial port 1)
PCI/ISA PnP Devices compliant with the Plug and Play standard, whether designed for PCI or ISA bus
architecture.
The Choice: Legacy ISA and PCI/ISA PnP.
PCI/VGA Palette Snoop
Leave this field at Disabled.
