CS1171 Hand-Held Programmer User's Manual
Control Solutions LLC Page 14 of 56

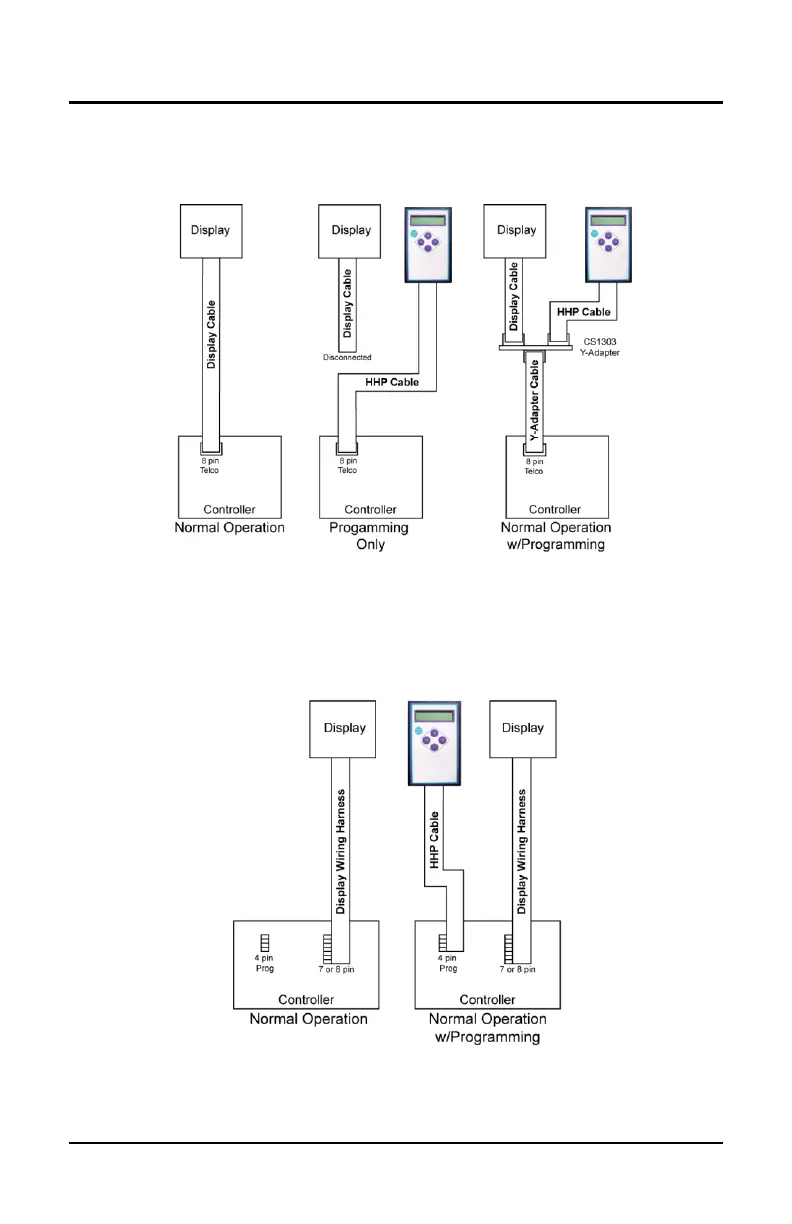

Figure 5 shows a Controller attached to the display unit through an 8-pin to 8-pin
connection, the HHP through an 8-pin to 8-pin connector and the CS1303 Y-adapter
connected to the HHP, intelligent display unit and the controller.
Figure 6 shows a Controller attached to the display unit through an 8-pin to 8-pin
connection and the display unit through the 8-pin to 8-pin connector with the HHP
connected through an 8-pin to 4-pin cable.
Figure 6 - 8-pin to 4-pin Connection
Figure 5 - 8-pin to 8-pin Connection
