CS1171 Hand-Held Programmer User's Manual
Control Solutions LLC Page 16 of 56

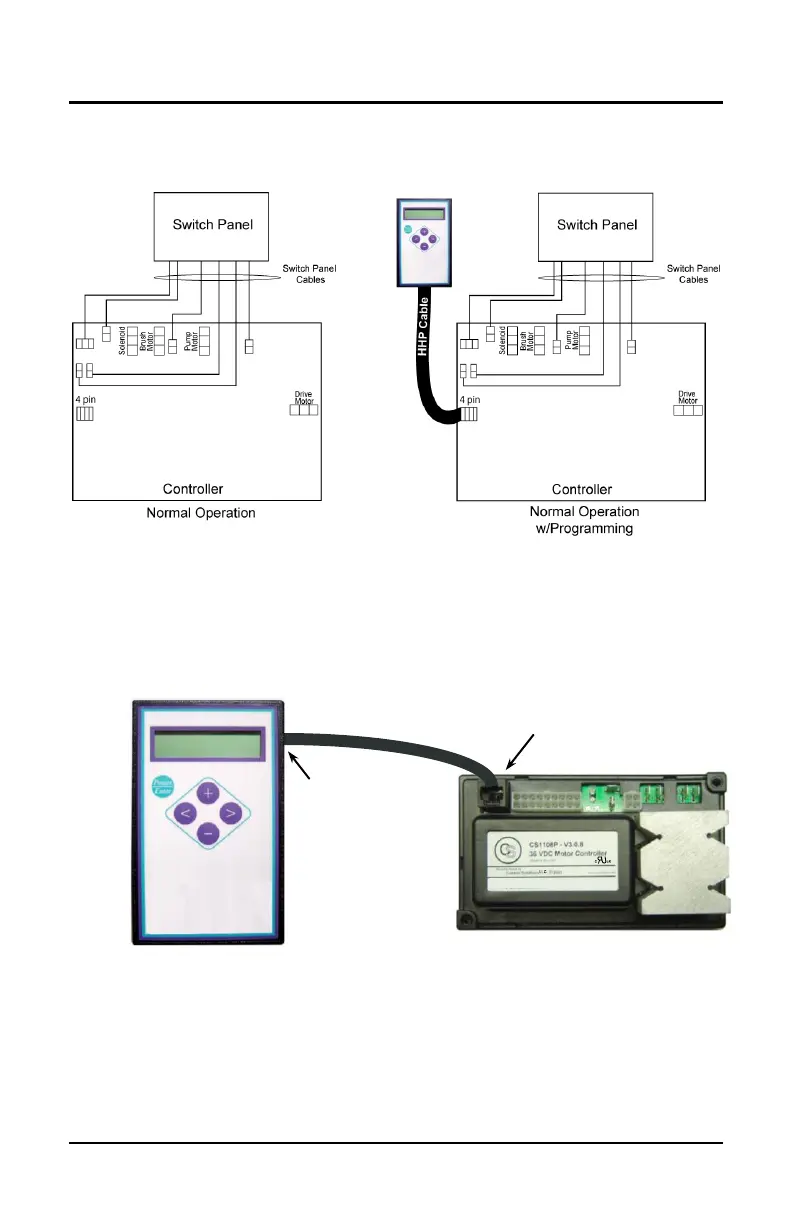

Figure 9 shows the CS1117 Motor Controller attached to an HHP through an 8-pin to 4-pin
cable along with the switch panel.
Figure 10 shows an example of the CS1171 Hand-Held Programmer connected to the
CS1108 PWM Motor Controller using the 8-pin to 8-pin Telco type interface.
To JP1
To RJ45 on
back of HHP
Figure 10 - HHP Connection to CS1108
Figure 9 - CS1117 Connection to Controller with Switch Panel
