Commander SE User Guide 32
Issue Number 8 www.controltechniques.com

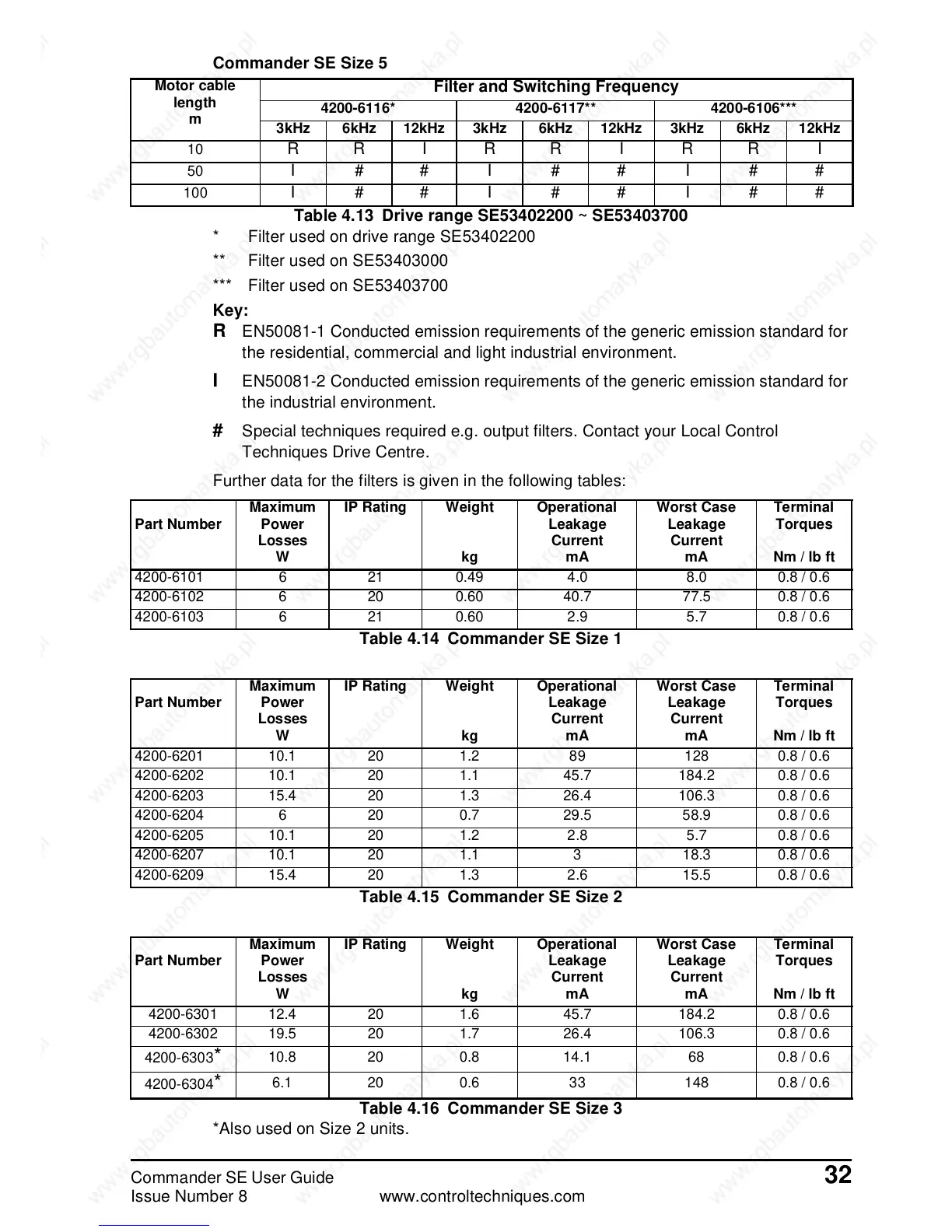

Commander SE Size 5
Table 4.13 Drive range SE53402200 ~ SE53403700
* Filter used on drive range SE53402200
** Filter used on SE53403000
*** Filter used on SE53403700
Key:
R EN50081-1 Conducted emission requirements of the generic emission standard for
the residential, commercial and light industrial environment.
I EN50081-2 Conducted emission requirements of the generic emission standard for
the industrial environment.
# Special techniques required e.g. output filters. Contact your Local Control
Techniques Drive Centre.
Further data for the filters is given in the following tables:
Table 4.14 Commander SE Size 1
Table 4.15 Commander SE Size 2
Table 4.16 Commander SE Size 3
*AlsousedonSize2units.
Motor cable
length
m
Filter and Switching Frequency
4200-6116* 4200-6117** 4200-6106***
3kHz 6kHz 12kHz 3kHz 6kHz 12kHz 3kHz 6kHz 12kHz
10
RR I RR I RR I
50
I##I##I##
100
I##I##I##
Part Number
Maximum
Power
Losses
W
IP Rating Weight
kg
Operational
Leakage
Current
mA
Worst Case
Leakage
Current
mA
Terminal
Torques
Nm / lb ft
4200-6101 6 21 0.49 4.0 8.0 0.8 / 0.6
4200-6102 6 20 0.60 40.7 77.5 0.8 / 0.6
4200-6103 6 21 0.60 2.9 5.7 0.8 / 0.6
Part Number
Maximum
Power
Losses
W
IP Rating Weight
kg
Operational
Leakage
Current
mA
Worst Case
Leakage
Current
mA
Terminal
Torques
Nm / lb ft
4200-6201 10.1 20 1.2 89 128 0.8 / 0.6
4200-6202 10.1 20 1.1 45.7 184.2 0.8 / 0.6
4200-6203 15.4 20 1.3 26.4 106.3 0.8 / 0.6
4200-6204 6 20 0.7 29.5 58.9 0.8 / 0.6
4200-6205 10.1 20 1.2 2.8 5.7 0.8 / 0.6
4200-6207 10.1 20 1.1 3 18.3 0.8 / 0.6
4200-6209 15.4 20 1.3 2.6 15.5 0.8 / 0.6
Part Number
Maximum
Power
Losses
W
IP Rating Weight
kg
Operational
Leakage
Current
mA
Worst Case
Leakage
Current
mA
Terminal
Torques
Nm / lb ft
4200-6301 12.4 20 1.6 45.7 184.2 0.8 / 0.6
4200-6302 19.5 20 1.7 26.4 106.3 0.8 / 0.6
4200-6303
*
10.8 20 0.8 14.1 68 0.8 / 0.6
4200-6304
*
6.1 20 0.6 33 148 0.8 / 0.6
