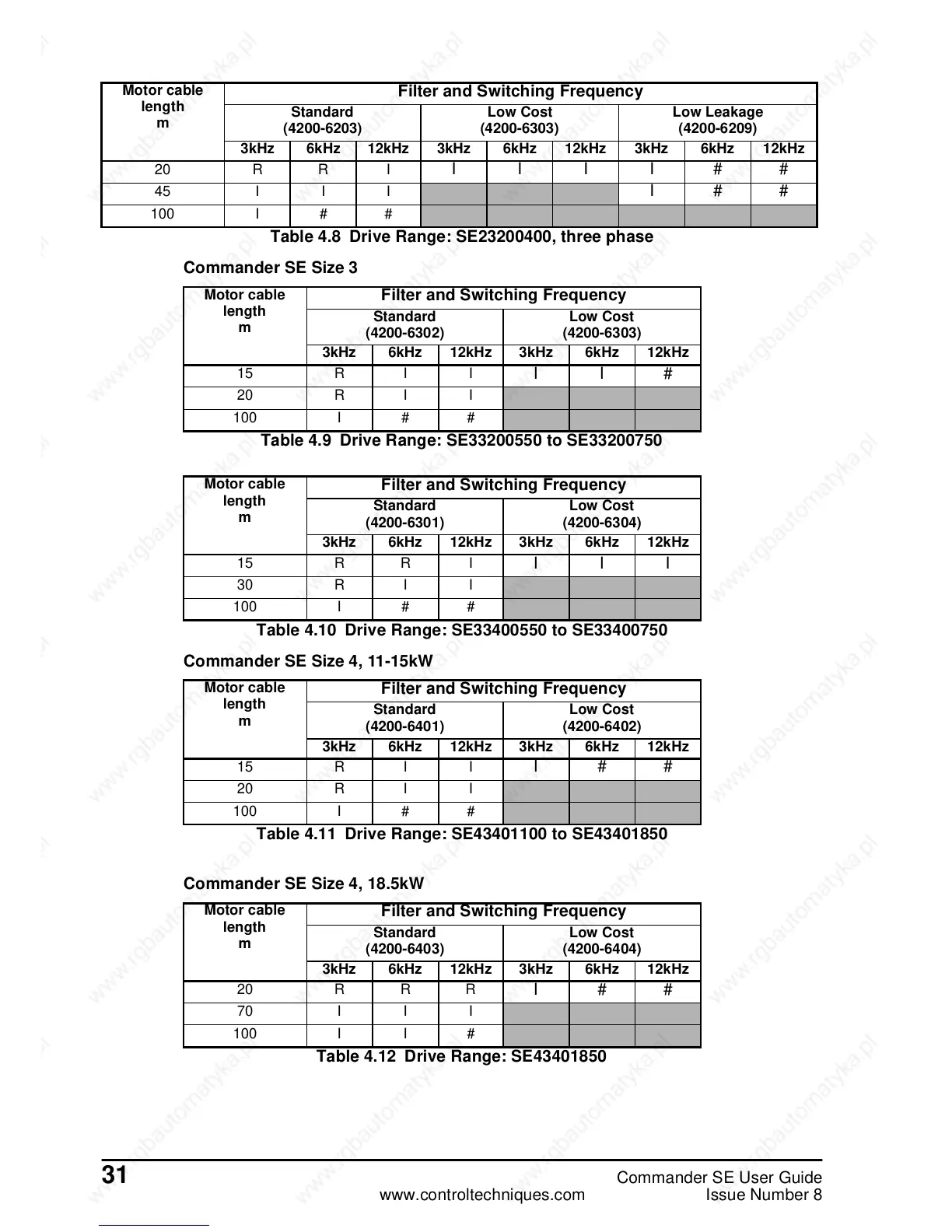

Table 4.8 Drive Range: SE23200400, three phase
Commander SE Size 3
Table 4.9 Drive Range: SE33200550 to SE33200750
Table 4.10 Drive Range: SE33400550 to SE33400750
Commander SE Size 4, 11-15kW
Table 4.11 Drive Range: SE43401100 to SE43401850
Commander SE Size 4, 18.5kW
Table 4.12 Drive Range: SE43401850
Motor cable
length
m
Filter and Switching Frequency
Standard
(4200-6203)
Low Cost
(4200-6303)
Low Leakage
(4200-6209)
3kHz 6kHz 12kHz 3kHz 6kHz 12kHz 3kHz 6kHz 12kHz
20 R R I
IIII##
45 I I I I##
100 I # #
Motor cable
length
m
Filter and Switching Frequency
Standard
(4200-6302)
Low Cost
(4200-6303)
3kHz 6kHz 12kHz 3kHz 6kHz 12kHz
15 R I I
II#
20 R I I
100 I # #
Motor cable
length
m
Filter and Switching Frequency
Standard
(4200-6301)
Low Cost
(4200-6304)
3kHz 6kHz 12kHz 3kHz 6kHz 12kHz
15 R R I
III
30 R I I
100 I # #
Motor cable
length
m
Filter and Switching Frequency
Standard
(4200-6401)
Low Cost
(4200-6402)
3kHz 6kHz 12kHz 3kHz 6kHz 12kHz
15 R I I I##
20 R I I
100 I # #
Motor cable
length
m
Filter and Switching Frequency
Standard
(4200-6403)
Low Cost
(4200-6404)
3kHz 6kHz 12kHz 3kHz 6kHz 12kHz
20 R R R
I##
70 I I I
100 I I #
