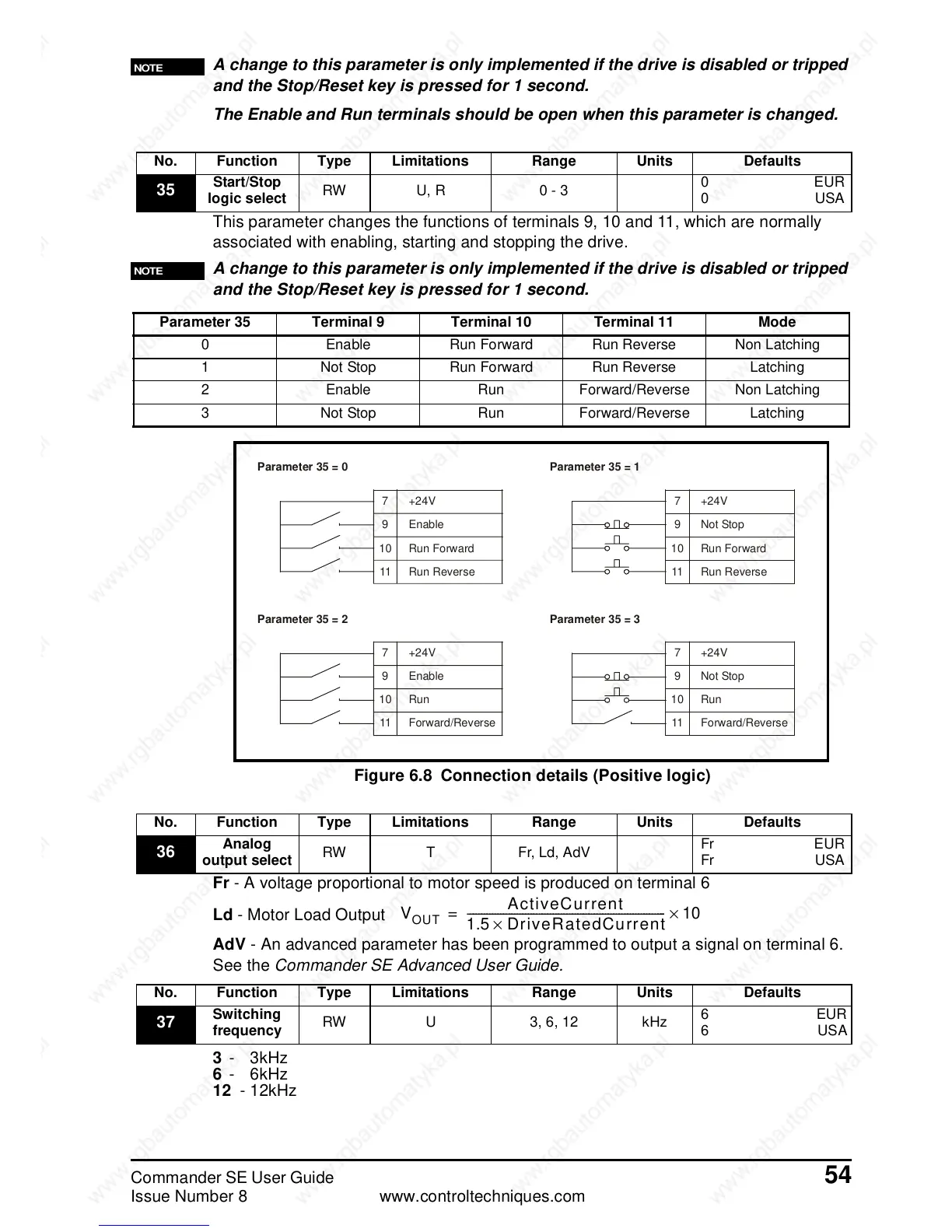

Control Techniques Commander SE SE53403000 User Manual

Commander SE User Guide 54
Issue Number 8 www.controltechniques.com
A change to this parameter is only implemented if the drive is disabled or tripped
and the Stop/Reset key is pressed for 1 second.
The Enable and Run terminals should be open when this parameter is changed.
This parameter changes the functions of terminals 9, 10 and 11, which are normally
associated with enabling, starting and stopping the drive.
A change to this parameter is only implemented if the drive is disabled or tripped
and the Stop/Reset key is pressed for 1 second.
Figure 6.8 Connection details (Positive logic)
Fr - A voltage proportional to motor speed is produced on terminal 6
Ld - Motor Load Output
AdV - An advanced parameter has been programmed to output a signal on terminal 6.
See the Commander SE Advanced User Guide.
3 -3kHz
6 -6kHz
12 -12kHz
NOTE
No. Function Type Limitations Range Units Defaults
35
Start/Stop
logic select
RW U, R 0 - 3
0EUR
0USA
NOTE
Parameter 35 Terminal 9 Terminal 10 Terminal 11 Mode
0 Enable Run Forward Run Reverse Non Latching
1 Not Stop Run Forward Run Reverse Latching
2 Enable Run Forward/Reverse Non Latching
3 Not Stop Run Forward/Reverse Latching
+24V
Enable
Run Forward
Run Reverse
7
9
10
11
Parameter 35 = 0
+24V
Not Stop
Run Forward
Run Reverse
7
9
10
11
Parameter 35 = 1
+24V
Enable
Run
Forward/Reverse
7
9
10
11
Parameter 35 = 2
+24V
Not Stop
Run
Forward/Reverse
7
9
10
11
Parameter 35 = 3
No. Function Type Limitations Range Units Defaults
36
Analog
output select
RW T Fr, Ld, AdV
Fr EUR
Fr USA
V
OUT
ActiveCurrent
1.5 DriveRatedCurrent×
------------------------------------------------------------------------
10×=
No. Function Type Limitations Range Units Defaults
37
Switching
frequency
RW U 3,6,12 kHz
6EUR
6USA
