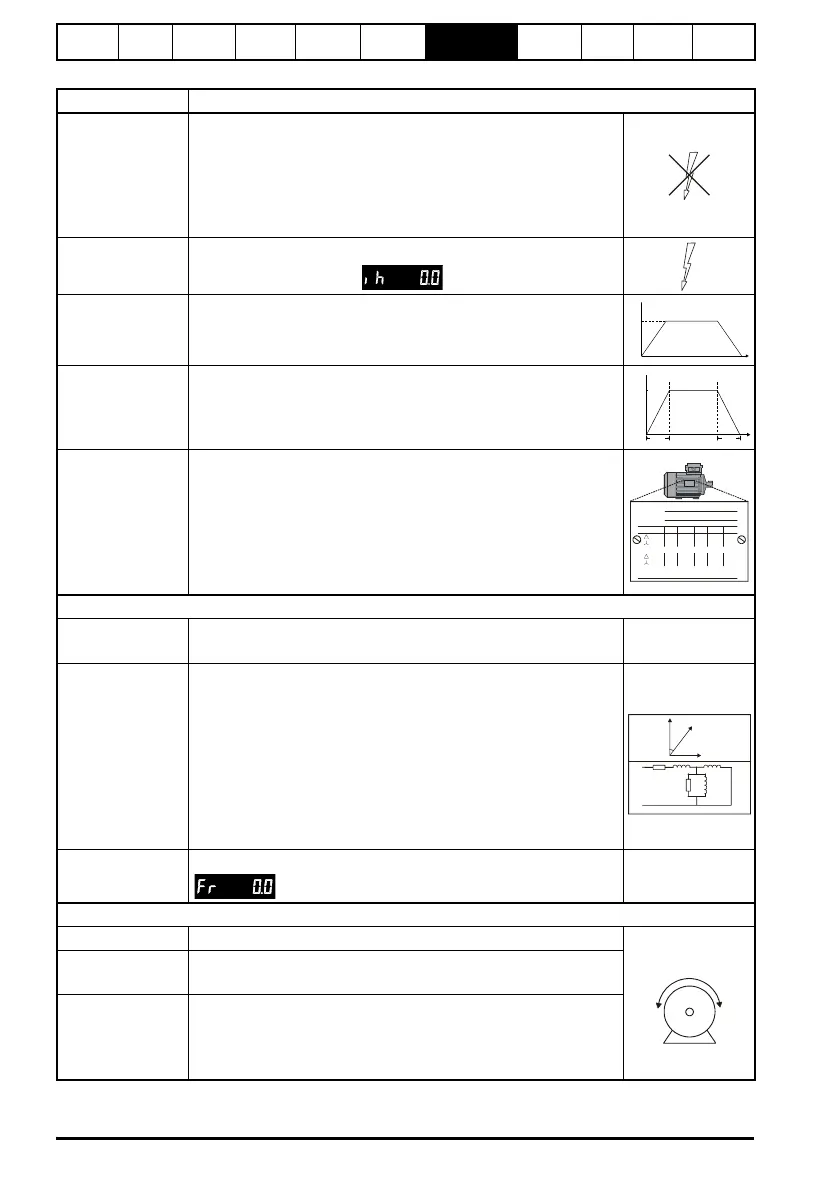

Action Detail
Before power up
Ensure:
• The drive enable signal is not given, terminal B4 is open
• The run signal is not given, terminal B5/B6 is open
• The motor is connected to the drive
• The motor connection is correct for the drive ∆ or Y
• The correct supply voltage is connected to the drive
Power up the
drive
Ensure:
• The drive displays:
Enter minimum
and maximum
speeds
Enter:
• Minimum speed Pr 01 (Hz)
• Maximum speed Pr 02 (Hz)
Enter
acceleration and
deceleration
rates
Enter:
• Acceleration rate Pr 03 (s/100Hz)
• Deceleration rate Pr 04 (s/100Hz)
Enter motor
nameplate
details
Enter:
• Motor rated current in Pr 06 (A)
• Motor rated speed in Pr 07 (rpm)
• Motor rated voltage in Pr 08 (V)
• Motor rated power factor in Pr 09
• If the motor is not a standard 50/60Hz motor, set Pr 39
accordingly
Ready to autotune
Enable and run
the drive
Close:
• The Enable and Run Forward or Run Reverse signals
Autotune
The Commander SK will carry out a non-rotating autotune on
the motor. The display will flash alternatively between 'Auto'
and tunE' to show that an autotune is being carried out on
the motor.
The motor must be stationary to carry out an autotune
correctly.
The drive will carry out a non-rotating autotune every time it
is first started after each power-up. If this will cause a
problem for the application, set Pr 41 to the required value.
Autotune
complete
When the autotune has been completed, the display will show:
Ready to run
Run The drive is now ready to run the motor.
Increasing and
decreasing speed
Turning the speed potentiometer will increase and decrease
the speed of the motor.
Stopping
To stop the motor under ramp control, open either the run
forward or run reverse terminal.
If the enable terminal is opened while the motor is running,
the motor will coast to a stop.
Pr 02
t
Pr 01
100Hz
Pr 03
t
Pr 04
Mot X XXXXXXXXX
No XXXXXXXXXX kg
IP55 I.cl F C 40 s S1 °
VHzmin
-1
kW cos φ A
230
400
50 1445 2.20 0.80 8.50
4.90
CN = 14.5Nm
240
415
50 1445 2.20 0.76 8.50
4.90
CN = 14.4Nm
CTP- VEN 1PHASE 1=0,46A P=110W R.F 32MN
I.E.C 34 1(87)
cos ∅
σ L
S
R
S
