10.7 Menu 7: Analog I/O

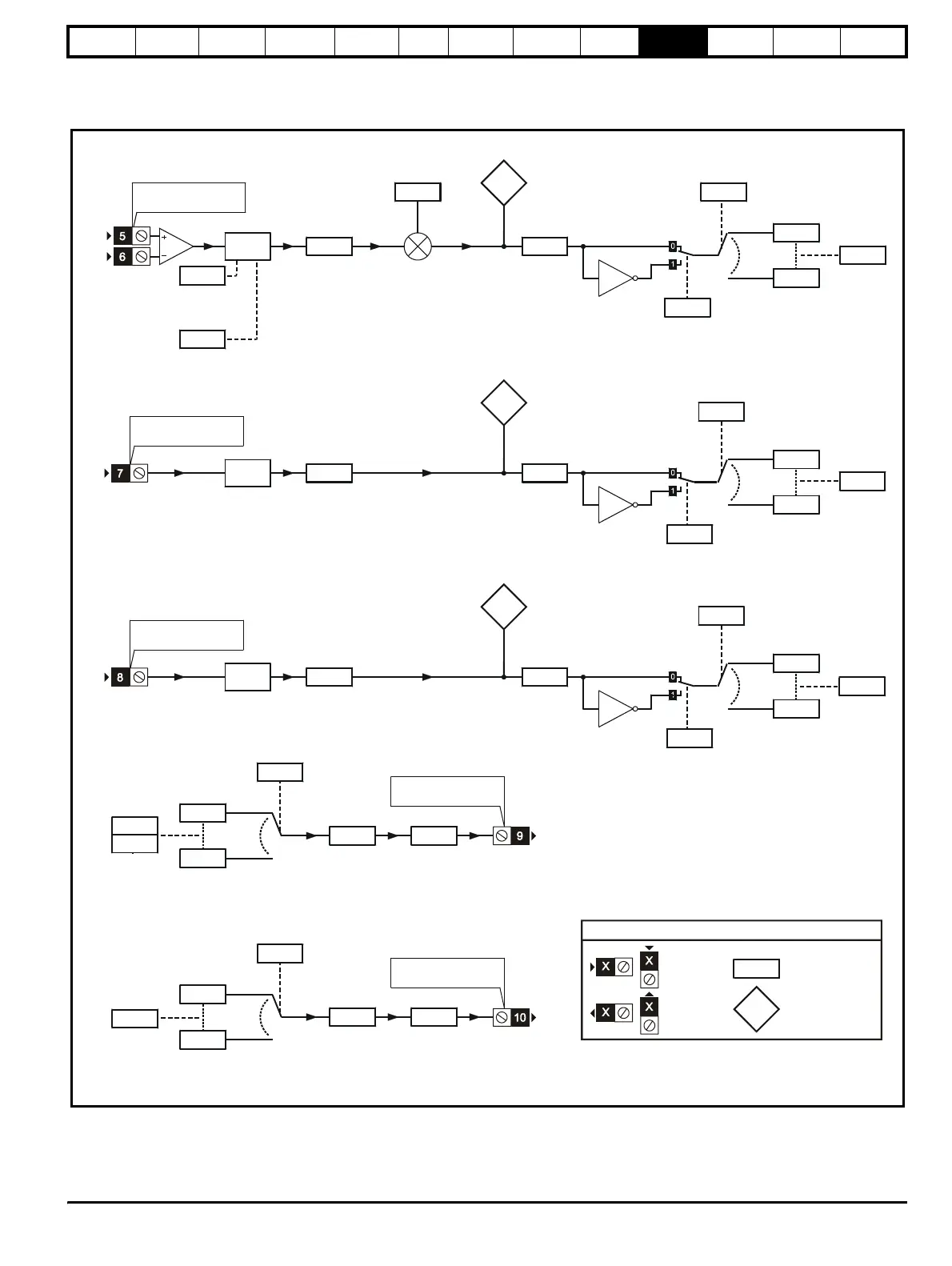

Figure 10-12 Menu 7 logic diagram
Analog input 2
A/D
7.11
Analog input 2
mode selector
7.12
Analog
input 2
scaling
??.??
Any
unprotected
variable
parameter
??.??
7.14
Function-2
destination
parameter
7.25
Calibrate
analog input 1
full scale
7.26
V/f sample
time
7.06
Analog input 1
mode selector
7.07
Analog input 1
offset trim
7.08
Analog
input 1
scaling
??.??
Any
unprotected
variable
parameter
??.??
7.10
Function-1
destination
parameter
V/f
x(-1)
Analog input 1
Analog input 3
A/D
7.15
Analog input 3
mode selector
7.16
Analog
input 3
scaling
??.??
Any
unprotected
variable
parameter
??.??
7.18
Function-3
destination
parameter
??.??
Any variable
parameter
??.??
7.19
Analog output 1
source parameter
7.20
Analog
output 1
scaling
7.21
Analog
output 1
mode
selector
Analog output 1
??.??
Any
variable
parameter
??.??
7.22
Analog output 2
source parameter
7.23
Analog
output 2
scaling
7.24
Analog
output 2
mode
selector
7.09
Analog input 1
invert
x(-1)
7.01
Analog input 1
7.02
Analog input 2
x(-1)
7.03
Analog input 3
7.17
Analog input
3 invert
7.13
Analog input 2
invert
Analog output 2
1.36
Analog
ref. 1
1.37
Analog
ref. 2
0.00
*
*
Default setting
is Motor thermal
input
5.01
Motor
frequency
3.02
Speed
feedback
4.02
Motor
active
current
OL>
CL>
0.XX
0.XX
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default settings
