5 Getting Started
5.1 Understanding the display
The display consist of two horizontal rows of 7 segment displays.
The lower display shows the drive status or the current menu and
parameter number being viewed.
The upper display shows the parameter value or the specific trip type.

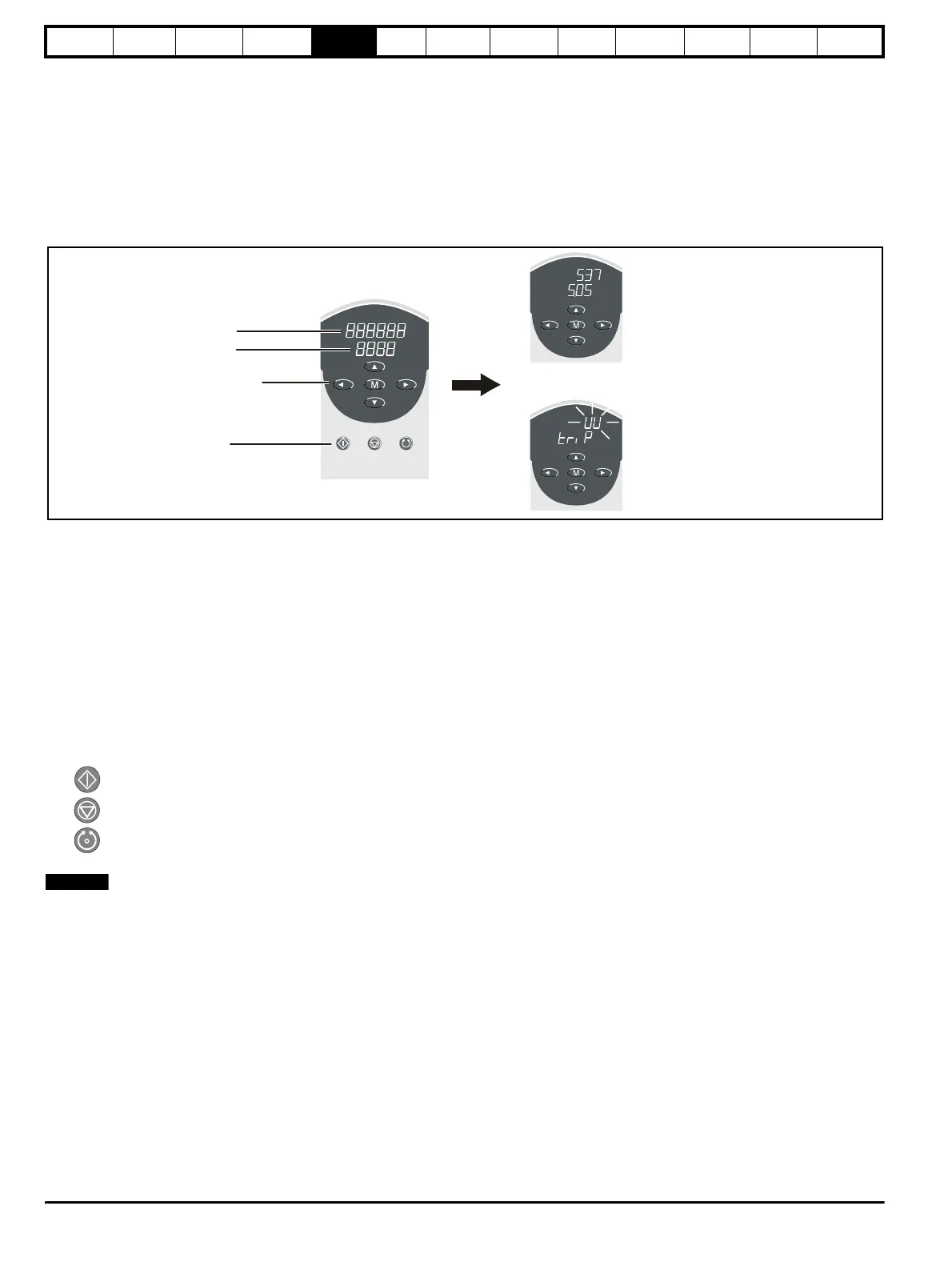

Figure 5-1 Keypad
5.2 Keypad operation
5.2.1 Control buttons
The keypad consists of:
1. Four arrow buttons
2. One mode button
3. Three control buttons
The arrow buttons are used to navigate the parameter structure and
change parameter values.
The mode button is used to change between the display modes –
parameter view, parameter edit, status.
The three control buttons are used to control the drive if keypad mode is
selected:
start (green)
stop (red)
forward / reverse (blue)
The red ‘stop’ button is also used to reset the drive.
Programming keys
Control keys
Upper display
Lower display
Pr value 5.05
Menu 5. Parameter 5
Trip type (UU = undervolts
)
Drive status = tripped
NOTE
