Unidrive User Guide 171
Issue Number: 9 www.controltechniques.com
10.16 Menu 16 Small option module set-up
Menu 16 is only available when either a UD50, UD51, UD52 or UD53
small option module is fitted.

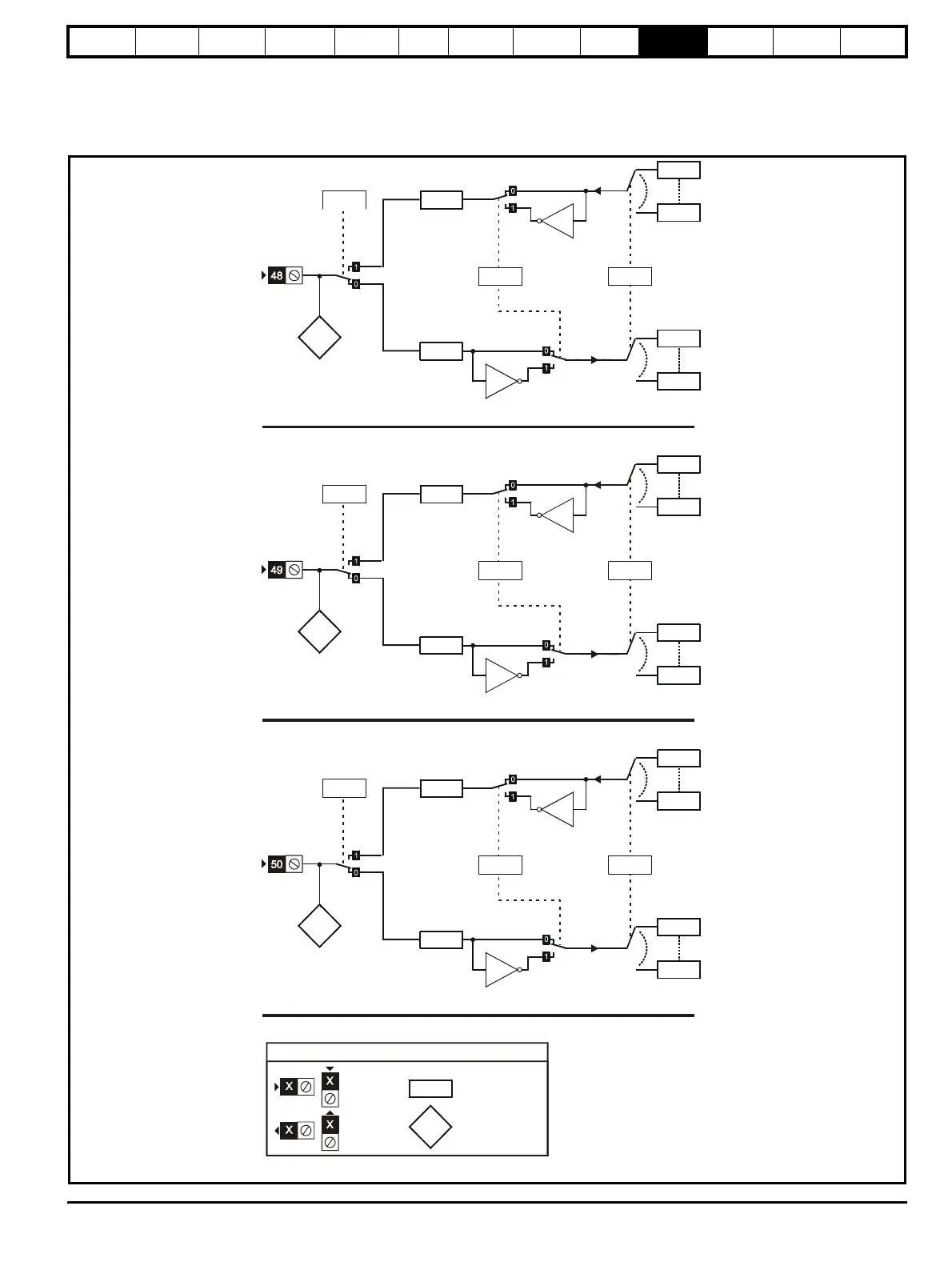

Figure 10-20 Menu 16 UD50 logic diagram, part 1
x(-1)
16.40
??.??
??.??
Destination
or source
parameter
Any unprotecte
d
bit parameter
??.??
Positive
logic select
Invert
Any bit
parameter
16.21
x(-1)
16.41
Open collector
outputs select
16.22
16.23
Output
enable
16.07
Input/output
state indicator
66
Input / output F7
??.??
x(-1)
16.40
??.??
??.??
Destination
or source
parameter
Any unprotecte
d
bit parameter
??.??
Positive
logic select
Invert
Any bit
parameter
16.24
x(-1)
16.41
Open collector
outputs select
16.25
16.26
Output
enable
16.08
Input/output
state indicator
66
Input / output F8
??.??
x(-1)
16.40
??.??
??.??
Destination
or source
parameter
Any unprotecte
d
bit parameter
??.??
Positive
logic select
Invert
Any bit
parameter
16.27
x(-1)
16.41
Open collector
outputs select
16.28
16.29
Output
enable
16.09
Input/output
state indicator
66
Input / output F9
??.??
0.XX
0.XX
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default settin
g
s
