Control Techniques Unidrive M100 Step-By-Step Guide

2 Unidrive M200/M201/M300 Step By Step Guide
Issue Number: 1
English

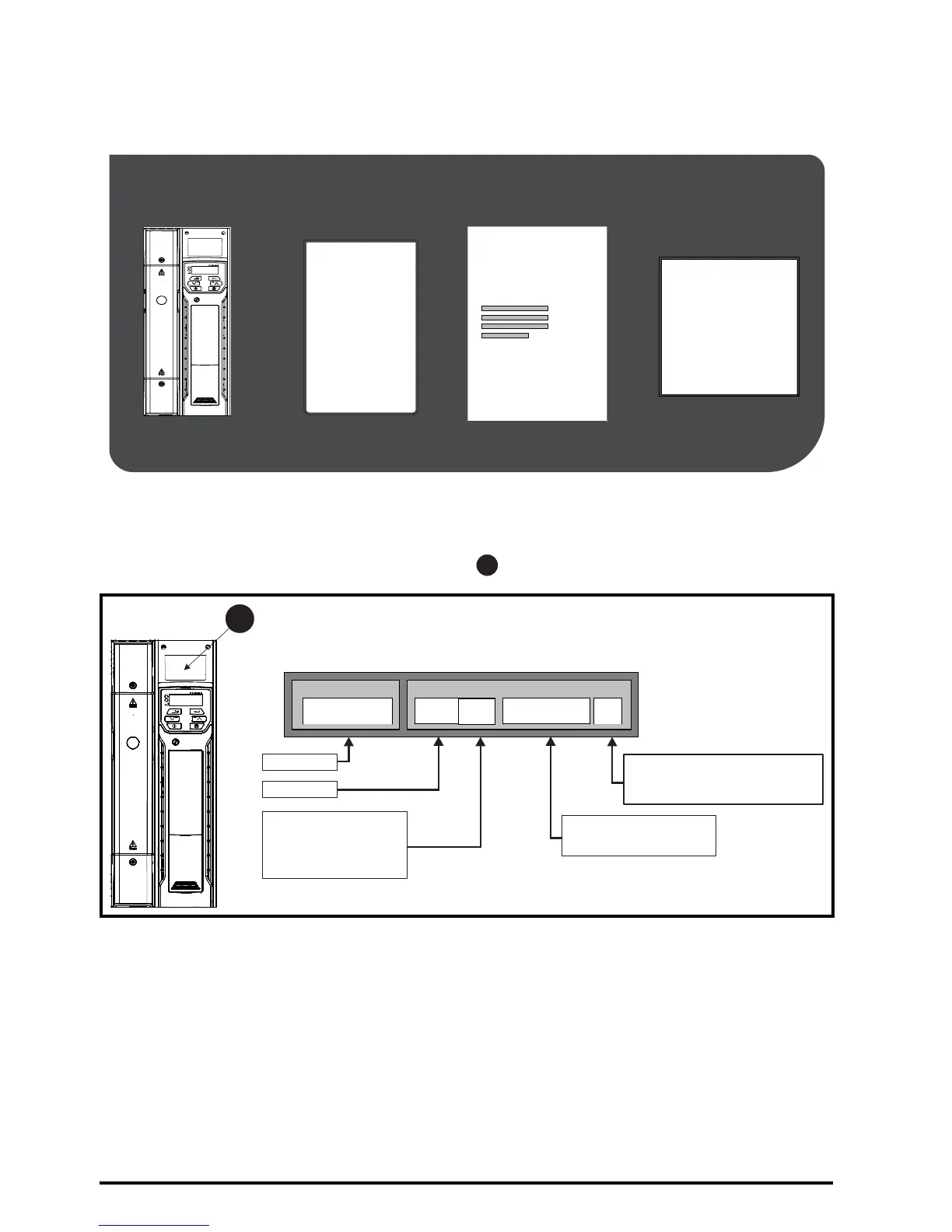

STEP 1: Check the contents of the box
Check you have all the components and your drive has not been damaged during transportation.
* With frame size 7, 8 and 9, surface mounting brackets are also supplied with the drive.
STEP 2: Check model and voltage
The model number can be found on the identification label on the top of the drive. Please check that the model
and the drive voltage range is suitable for the installation.
KIT BOX*
SAFETY
INFORMATION
+
+
+
STEP BY
STEP
GUIDE
1
Product line:
Frame size:
Current Rating :
Heavy Duty current rating x10
Drive Format :
A - AC in AC out
E - AC in AC out (without internal choke)
Voltage rating
:
2 - 200 V (200 - 240 ± 10 %)
4 - 400 V (380 - 480 ± 10 %)
5 - 575 V (500 - 575 ± 10 %)
6 - 690 V (500 - 690 ± 10 %)
Derivative
Electrical Specifications
M200 - 05 4 00270 A
1
