Controls MX Series User Manual

48

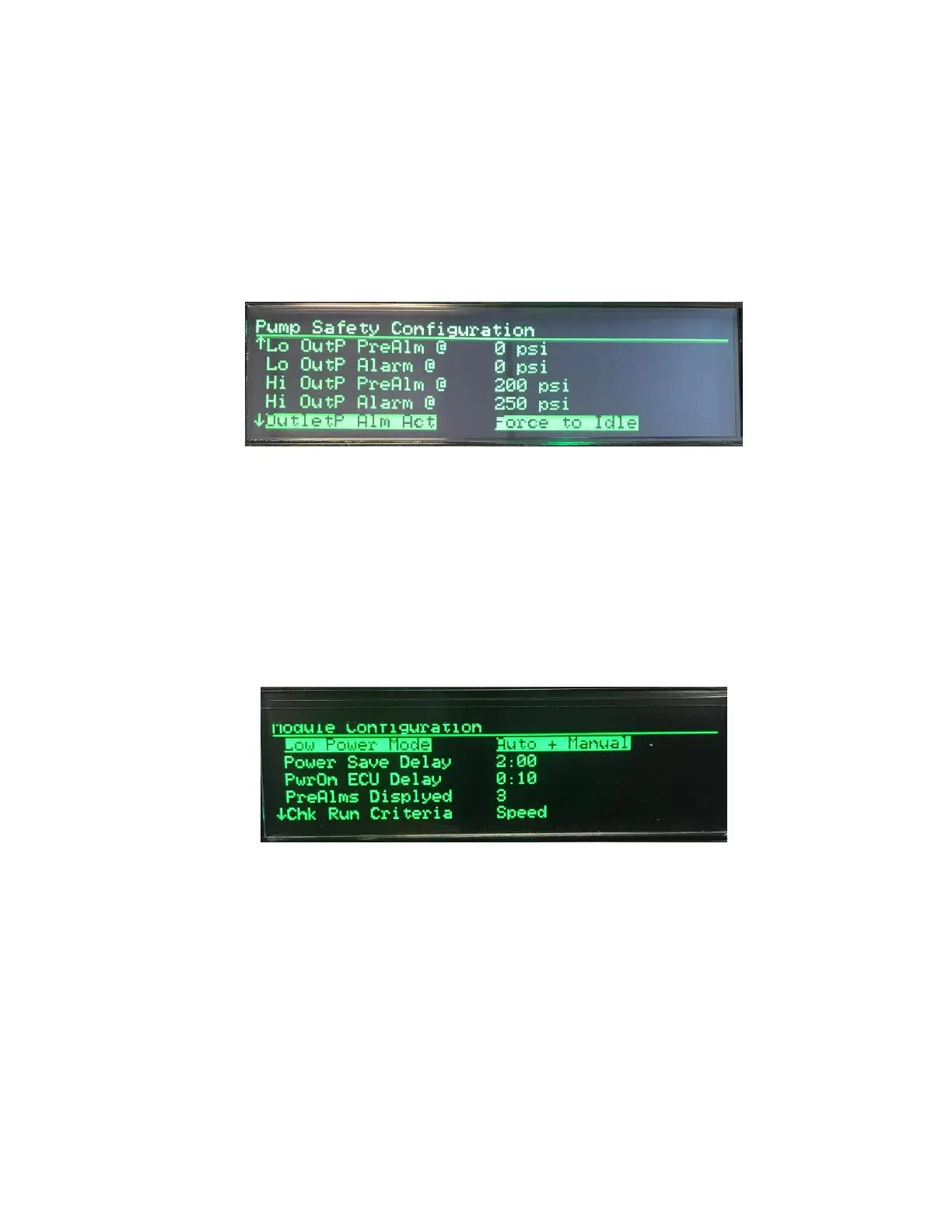

PUMP SAFETY CONFIGURATION
The module can provide warnings, shutdowns, deceleration, and other behaviors for the critical pump
parameters of suction pressure and discharge pressure. Simply set the thresholds and actions
desired. In the example below, a warning will be annunciated if the discharge pressure rises above 200
psi and the engine will be decelerated to minimum speed if it exceeds 250 psi.
MODULE CONFIGURATION
This menu allows you to configure the behavior of the module itself and to clear event logs, number of
start counters. Low Power Mode can also be selected here. You can assign the number of password
levels as well as set an OEM password.
