DISPLAY CONFIGURATION

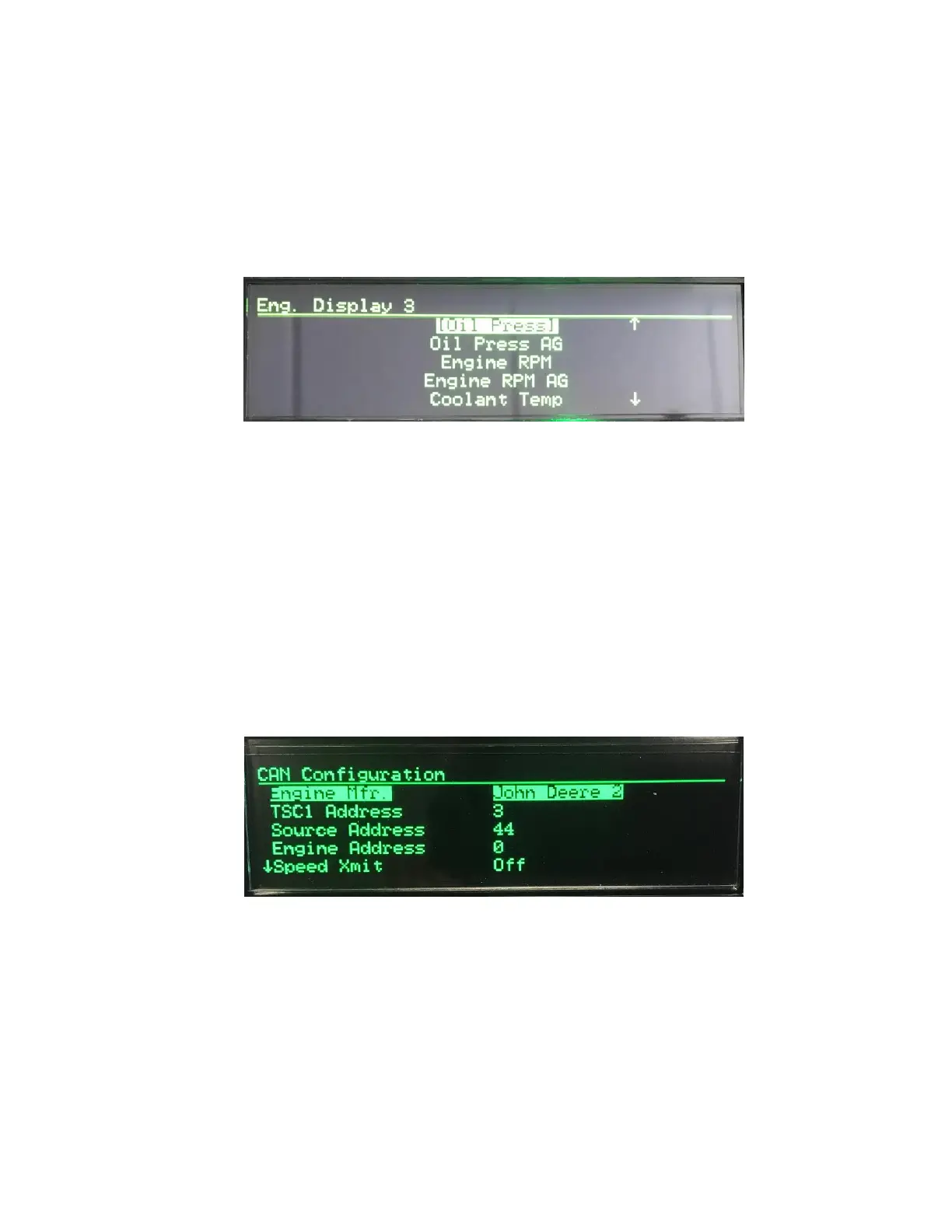

Use this area to set up the display with the parameters you desire to see on the full-time display. For
details on configuration, see DISPLAY OPTIONS in this manual. In the example below, Area 3 would
display engine Oil Pressure in digital format. The AG suffix stands for Analog Gauge presentation.
CAN CONFIGURATION
This menu is used to define how and what messages are transmitted on the J1939 CAN Bus.
Destination and broad cast addresses are defined here. Most CAN addresses will be programmed
based on the engine manufacturer selection automatically. However, you can overwrite the defaults if
desired. If you are connecting to a CAN based, telematics radio, you may want to enable the
transmission of parameters not being broadcast by the ECU and how and when the module will
transmit. Contact CI application engineers for assistance.
