6.4.2 Layout of the fully automatic oven cleaning system
Cleaning agent and rinse aid
Use only the cleaning fluids specified here to clean the combi oven.
NOTICE Damage caused as a result of improper use of cleaning agents will invalidate any warranty
claims.
The following table shows the approved cleaning agent and rinse aid:
Name Product Label color
Cleaning agents ConvoClean forte / new red
Rinse aid ConvoCare green

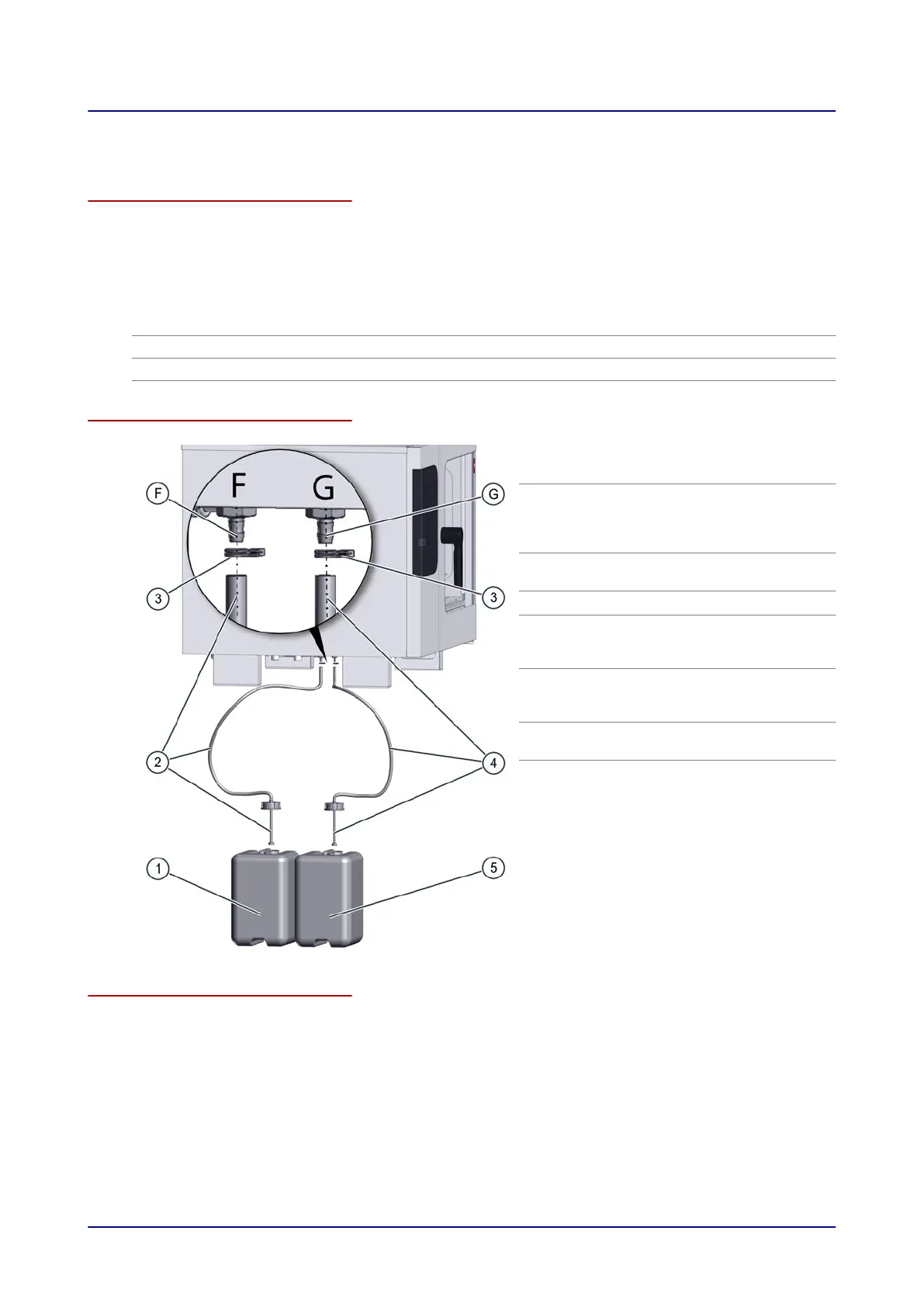

Layout of the fully automatic oven cleaning using connected cannisters
Item Name Color
coding
1
Canister containing
ConvoCare rinse aid
(ready-to-use solution
in defined mixing ratio)
green
(label)
2
Delivery tube for rinse-
aid suction nozzle
green (tube)
3
D10 wire clip -
4
Extractor tube for
cleaning agent suction
nozzle
red (tube)
5
Canister containing
ConvoClean new or
ConvoClean forte
red (label)
F
Appliance connector for
rinse aid supply
green
(lettering)
G
Appliance connector for
cleaning agent supply
red
(lettering)
Box for cleaning-fluid canisters (optional accessory)
The box for the cleaning-fluid canisters is an optional accessory for the combi oven and is available
from the manufacturer.
For table-top units on a stand:
■
The box can be suspended from the stand by means of the mounting brackets and the mounting
frame. The mounting frame must be fitted by placing it over the studs on the stand. The weight of
the combi oven placed on top of the mounting frame, plus the weight of the suspended box and
cleaning-fluid canisters, keeps the frame in place.
