7.3 Measuring appliance gaps
Measuring appliance gaps

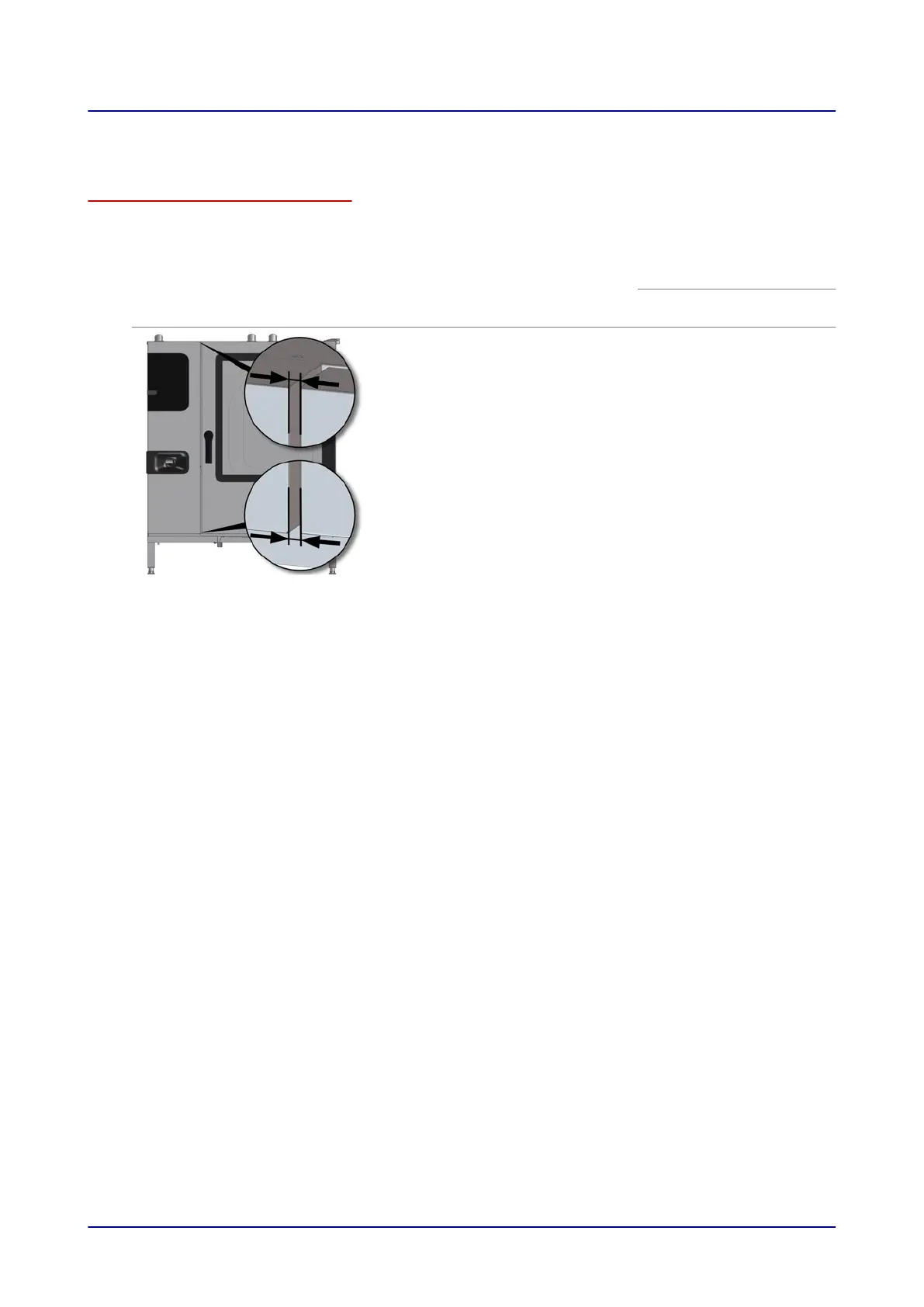

The figure shows a size 12.20 combi oven as an example for all appliance sizes.
The measured widths of the appliance gaps must lie within the following tolerance ranges:
Illustration Name Measurement
condition
Tolerance range
Table-top
units
Floor-stand‐
ing units
Door gap at the
front of the appli‐
ance
The appliance
door is closed.
12 ± 1 mm 10 ± 1 mm
