Space required for disappearing door - width and depth

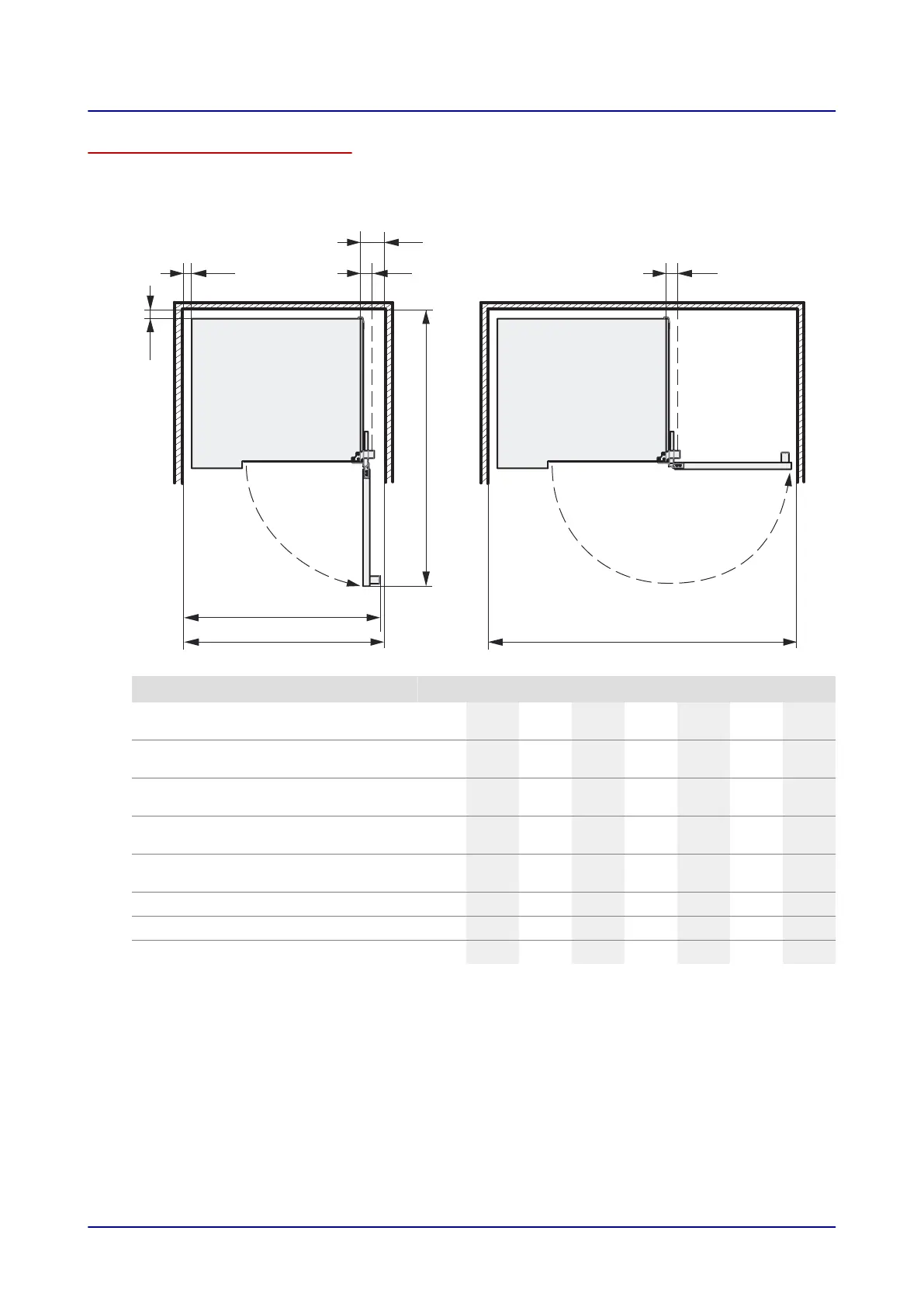

The following diagram and table show the space required for the appliance for different installation and
operating situations. They also show the minimum horizontal distances from adjacent walls and surfa‐
ces. The safety clearances on the left, right and rear must always be complied with.
Meaning 6.10 6.20 10.10 10.20 12.20 20.10 20.20
B1 Width requirement, appliance door
open at 90°
[mm] 1052 1297 1052 1297 1338 1093 1338
B2 Width requirement, appliance door
open at 180°
[mm] 1510 1960 1510 1960 2010 1560 2010
B3 Width requirement, disappearing
door retracted
[mm] 1055 1300 1055 1300 1345 1100 1345
R Space required on right-hand side,
disappearing door retracted
[mm] 130 130 130 130 160 160 160
T Depth requirement when opening
the appliance door
[mm] 1419 1824 1419 1824 1860 1455 1860
S1
Safety clearance on left-hand side [mm] 50 50 50 50 50 50 50
S2
Safety clearance at rear [mm] 50 50 50 50 50 50 50
S3
Safety clearance on right-hand side [mm] 50 50 50 50 50 50 50
5 Setting up the appliance
