4.

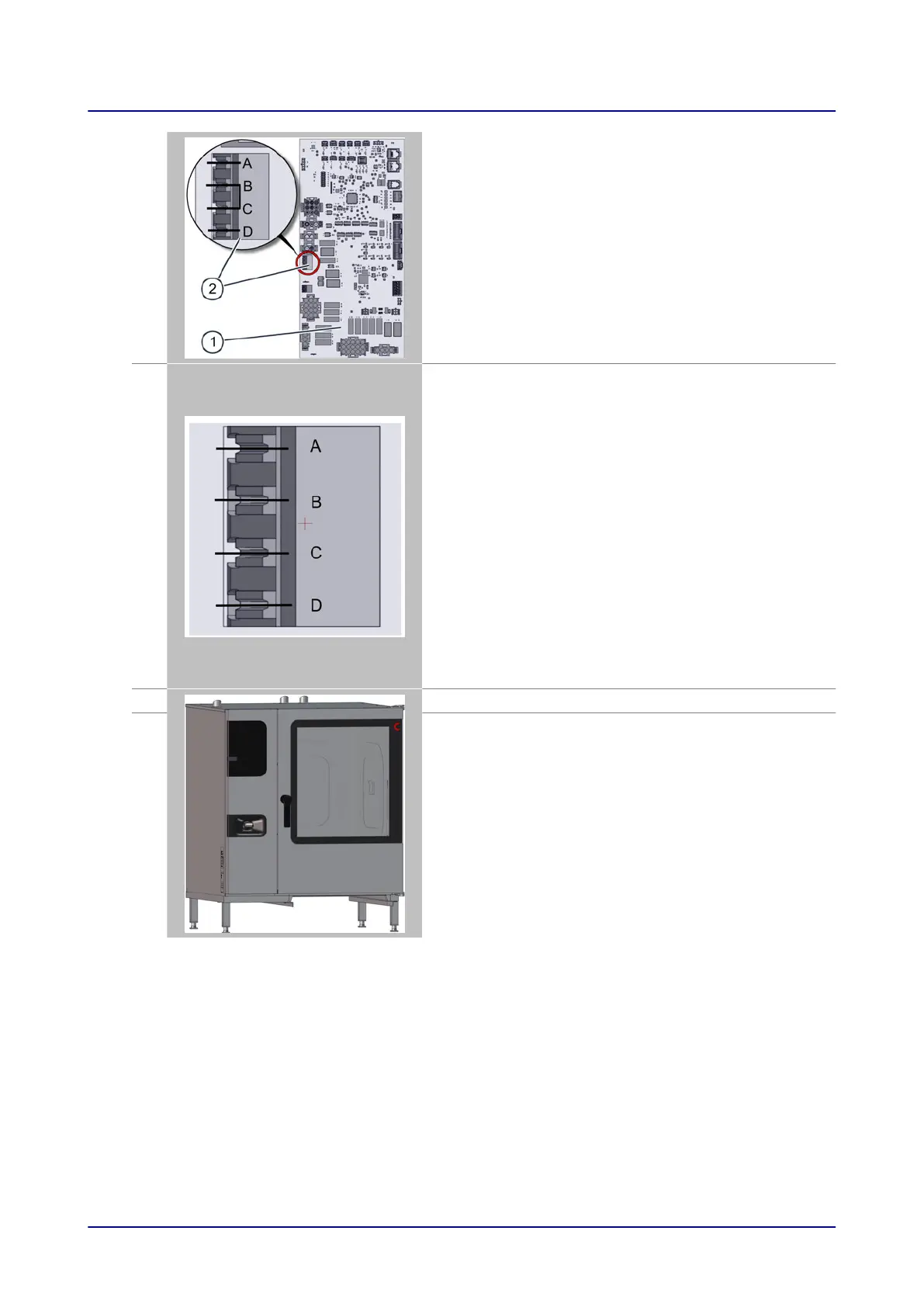

Remove the wire link between the terminals (B) and (C)
on terminal block -X37 (2).
5.
Connect the terminals (A), (B), (C) and (D) of terminal
block -X37 (2) to the energy optimization system.
Terminal Combi oven
Energy optimiza‐
tion system
A
Phase, when combi
oven is on
-
B
Phase, when combi
oven heating element
is on
Switching relay
C
Heater enable, B and
C must be connected
by switching relay in
the energy optimiza‐
tion system in order to
enable heating
Switching relay
D
Neutral -
6.
Refit the side panel on the combi oven.
7.
Put the combi oven and energy optimization system into
operation.
6 Installation
81
