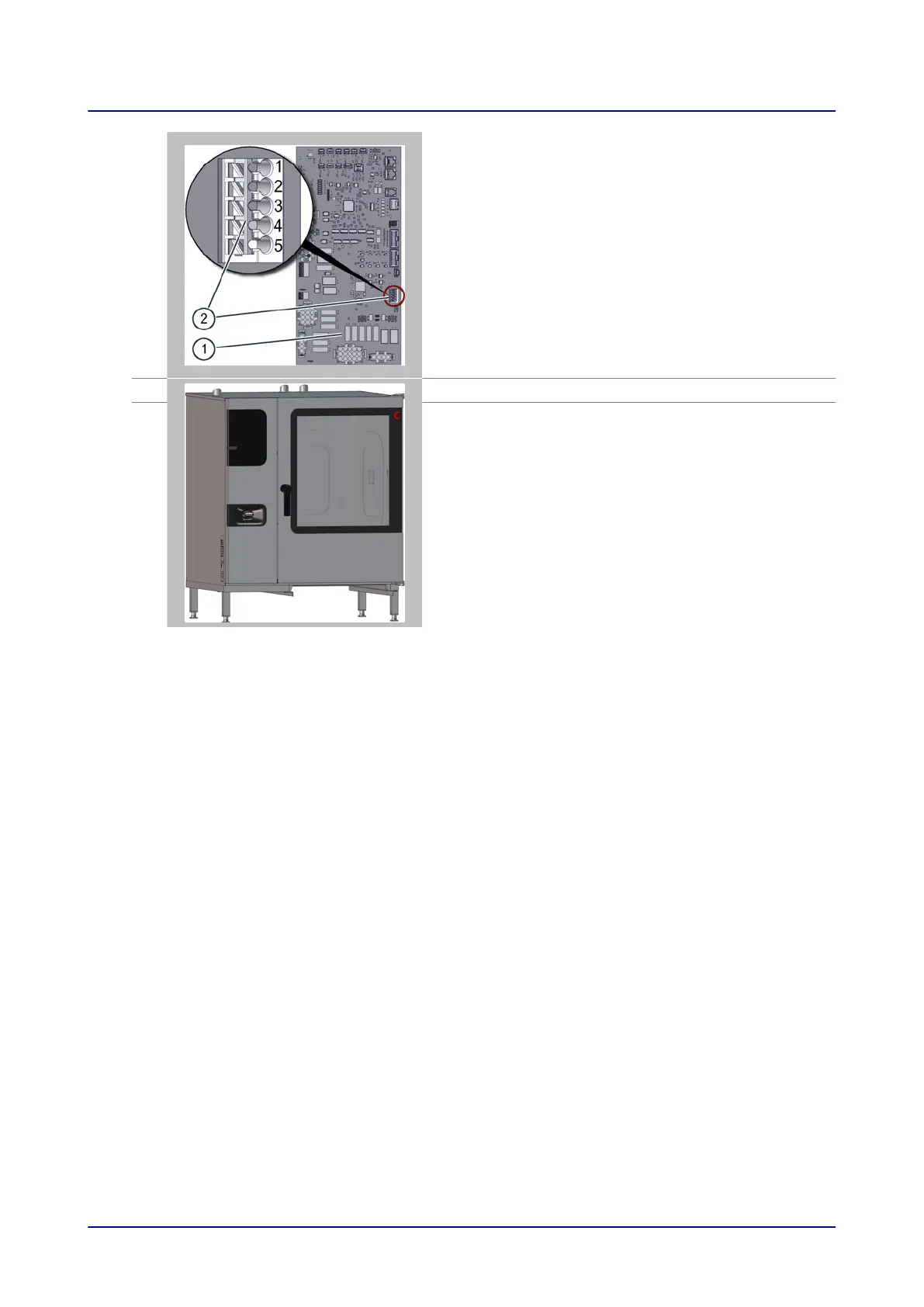

Connect the signal-tower connecting cable to the combi
oven in accordance with the PIN assignment shown be‐
low.
PIN Assignment Wire colour
1
GND BU (Blue)
2
Signal: buzzer GY (Grey)
3
Signal: red light BK (Black)
4
Signal: yellow light WH (White)
5
Signal: green light BN (Brown)
5.
Refit the side panel on the combi oven.
6.
Put the combi oven and signal tower into operation.
6 Installation
83

Convotherm 4 Series Specifications

General

Model	Convotherm 4 Series
Category	Oven
Temperature Range	30°C to 300°C
Type	Combi Oven
Cooking Modes	Steam, Convection, Combination
Steam Generation	Yes
Cleaning System	Automatic Cleaning System
