Convotherm 4 Series User Manual

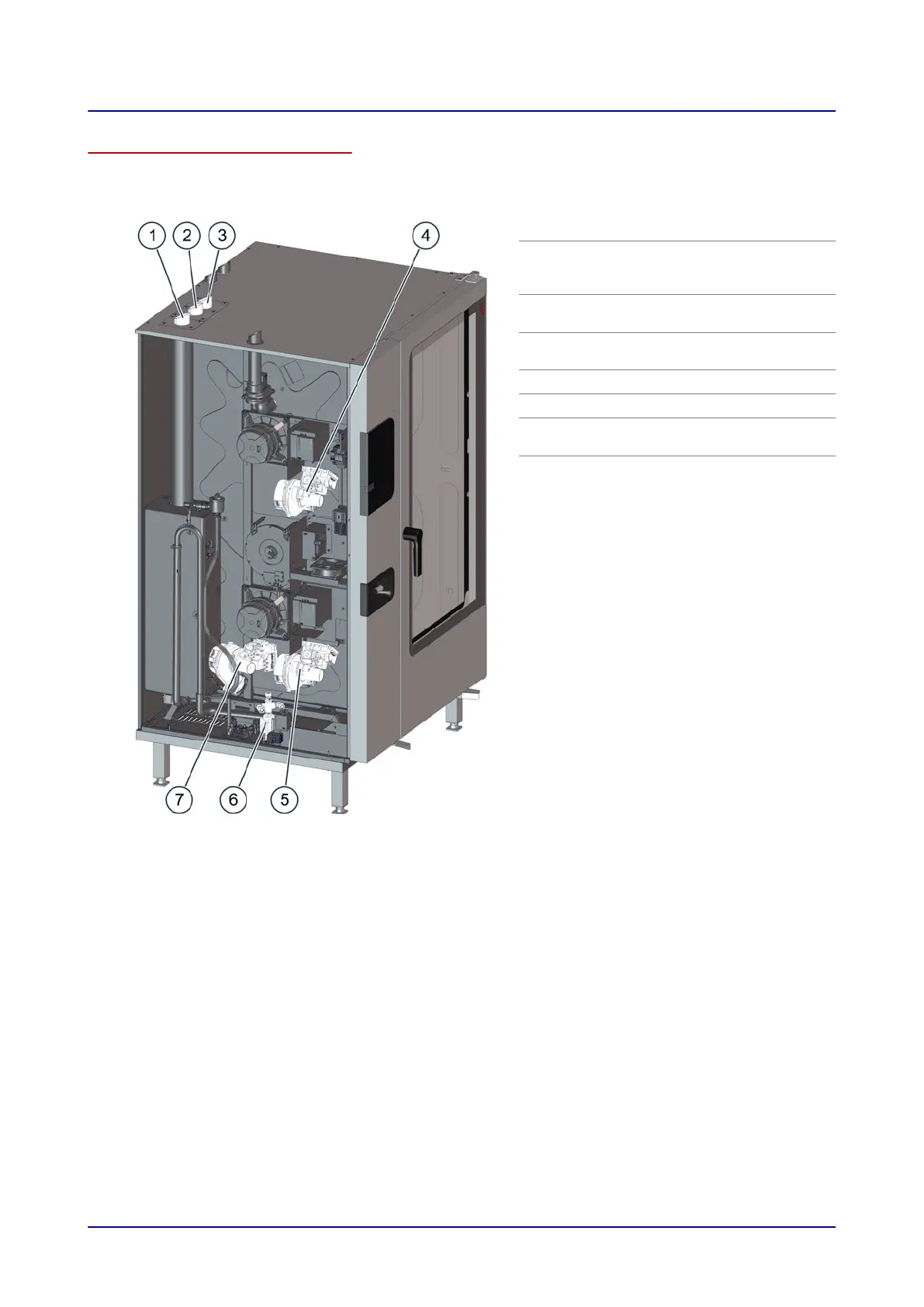

Position of the fan burners in appliances sizes 20.10 and 20.20
The following illustration shows a size 20.20 combi oven with boiler as an example of gas appliances
of size 20.10 and 20.20:
Item Name
1
Exhaust outlet from boiler burner
(only on models with boiler not
steam injection)
2
Exhaust outlet for bottom convection
burner
3
Exhaust outlet for top convection
burner
4
Top convection burner
5
Bottom convection burner
6
Main gas valve, connection to gas
supply in appliance floor
7
Boiler burner (only on models with
boiler not steam injection)
6 Installation
91

Convotherm 4 Series Specifications

General

Model	Convotherm 4 Series
Category	Oven
Temperature Range	30°C to 300°C
Type	Combi Oven
Cooking Modes	Steam, Convection, Combination
Steam Generation	Yes
Cleaning System	Automatic Cleaning System
