Service Handbook OEB/OES/OGB/OGS

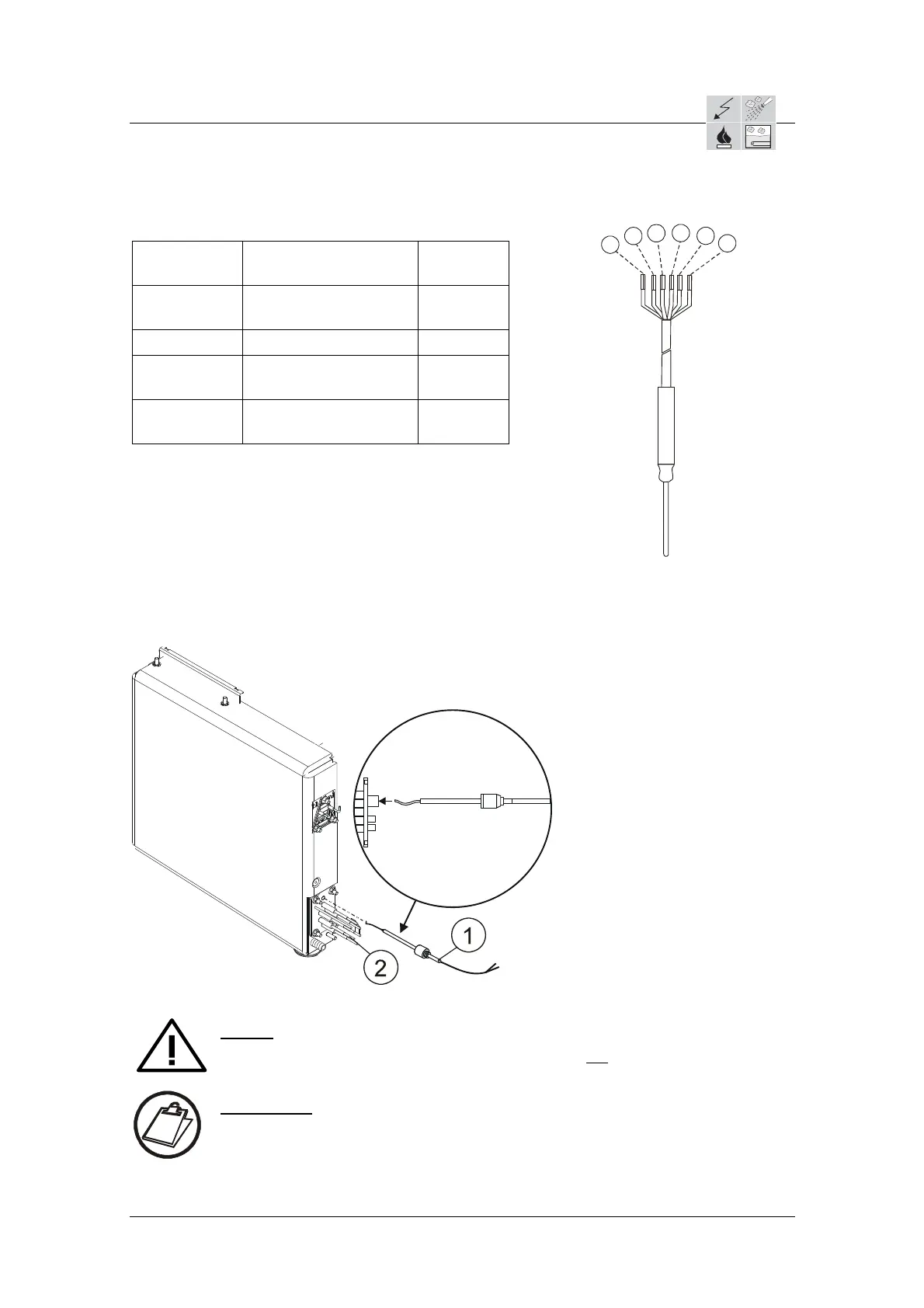

Connections for the CTC probes
B10
2
1
3
4
5
6
wire OEB/OES/OGB/OGS connectio
n-plan
1 =
green/blue
Casing ground X6/1
2 = green/red Tip of probe gauge (+) X6/2
3-5 = green Further gauge points
(+)
X6/3-5
6 = white Ground (-) measuring
points
X6/6
6.5.4 Safety thermostat probe N8 on flange immersion heater
Safety:
The safety thermostat must be connected to the top heating element.
Immersion heater
Safety thermostat probe N8 for
immersion heater
Part no.: 500 21 03
above
Instructions:
Slide the safety thermostat N8 all the way into the cable duct.
Assemble the safety thermostat with the cable spring above.
AS/11-2011 6_05e_Probe assembly and replacing_b
Page 4 / 5
