Service Handbook OEB/OES/OGB/OGS

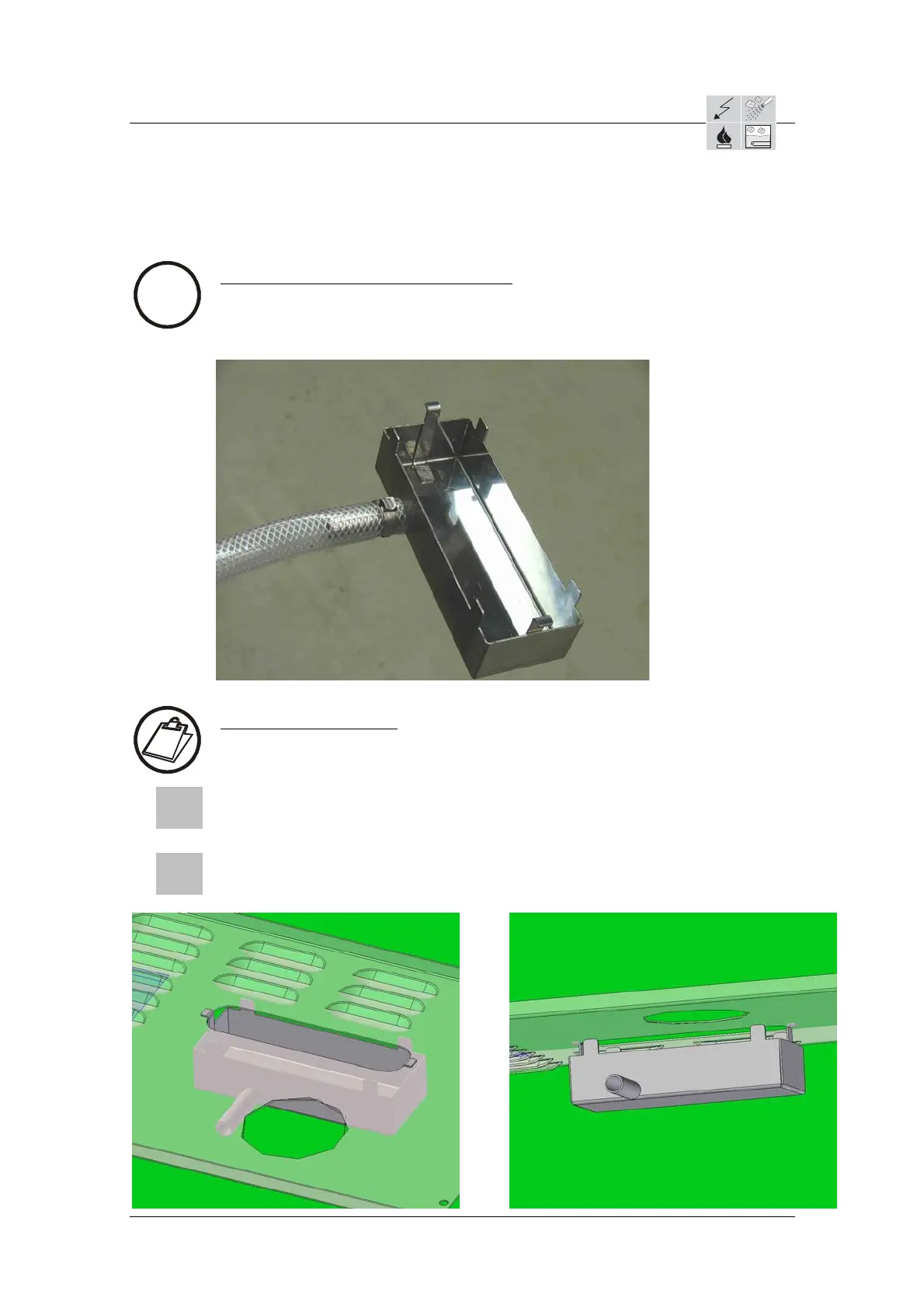

6.20 Tropfwanne für Sicherheits-Überlauf montieren / Drip tray for

overflow protection

Seite / Page 1 / 2

Information – Lieferzustand / Delivery :

 Tropfwanne incl. Schlauch für Sicherheits-Überlauf

 Drip tray incl. hose for overflow protection

Anleitung / Instructions:

 Rasten Sie die Tropfwanne in der Abdeckung des Kondensators ein.



Führen Sie den Schlauch parallel zum Geräteablauf in den Trichter des

Siphons.



Lock the drip tray into place on the cover of the condenser

 Lead the hose parallel to unit drainage into the siphon funnel.

AS/11-2011 6_20e_Drip tray for overflow protection_b
