Convotherm OGS 6.10 Service Handbook

Service Handbook OEB/OES/OGB/OGS

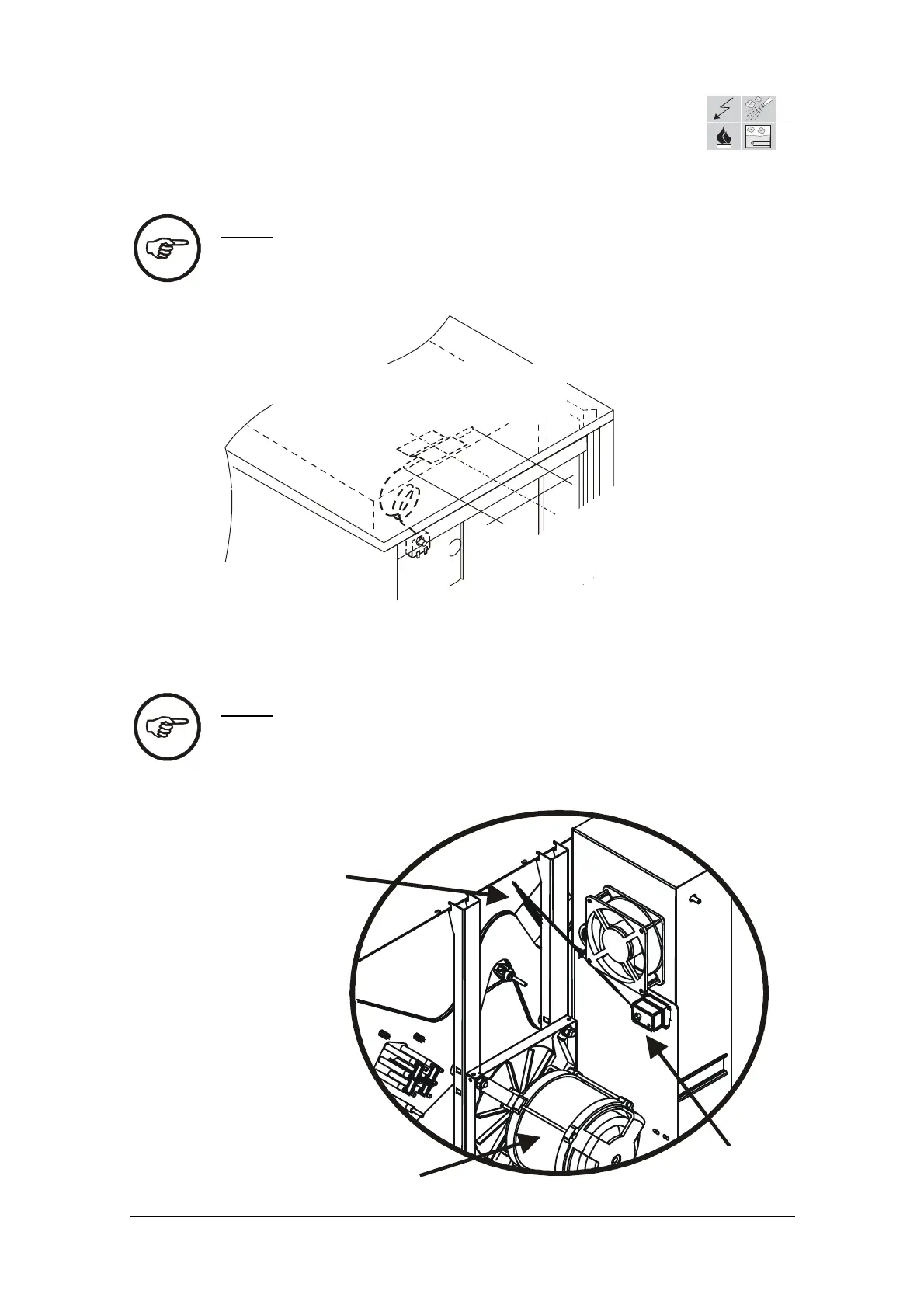

6.5.1 Safety thermostat above unit ceiling on table units
Notice:
The safety thermostat is located in the connection area of the unit above the unit
ceiling of the inner casing. Under the insulation is a clip underneath which the
thermostat is placed.
=
=
Tolerance +/- 5 mm
Safety thermostat probe B7 / B7.1
Part no.: 5001041
6.5.2 Safety thermostat behind the motor fastening on standing units
Notice:
The safety thermostat is located in the connection area of the unit behind the motor
fastening. Behind the U-holders on which the motor is assembled, there is a clip
underneath which the safety thermostat is placed. The thicker part of the probe
should protrude approx. 15 mm from the clip.
Motor
Motor
Return setting
knob
Safety thermostat probe
B7 / B7.1
AS/11-2011 6_05e_Probe assembly and replacing_b
Page 2 / 5
