Service Handbook OEB/OES/OGB/OGS
2.3 Basic Settings
2.3.5 Automatic Cleaning (optional)

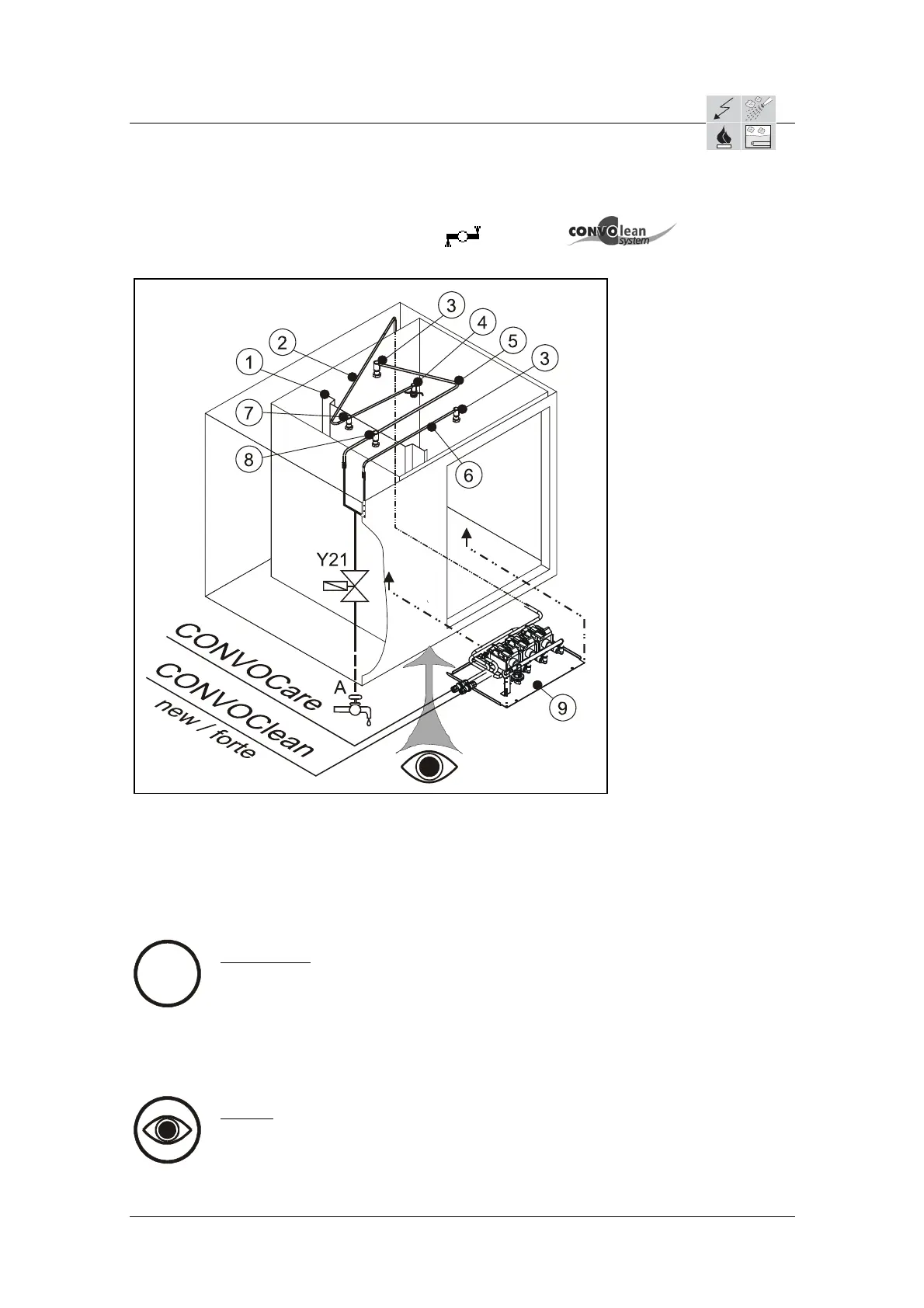

1 = Suction pa
nel 7 Injection nozzle Cleaner
2 = Cleaning pipes 8 Injection nozzle Water
3 = Sprinkler Nozzle Water 9 Pumping box (under the unit)
4 = Rotor Nozzle Cleaner
5 = Water pipes
6 = Additional Water pipes (only in X.20-units)
i
Information:
The time duration of the automatic cleaning is dependent on which cleaning
step is selected and can last anywhere from 41 minutes (Step 1) to~ 2 ½ h
(Step 4+).
After the automatic cleaning is finished, the buzzer sounds for 10 minutes and
afterwards the unit switches itself off (Stand by-operation).
Page 1 / 2
Check:
Noise, Water flowing out of drain
AS/11-2011 2_03_05e_Automatic Cleaning_c
