Convotherm OGS 6.10 Service Handbook

Service Handbook OEB/OES/OGB/OGS

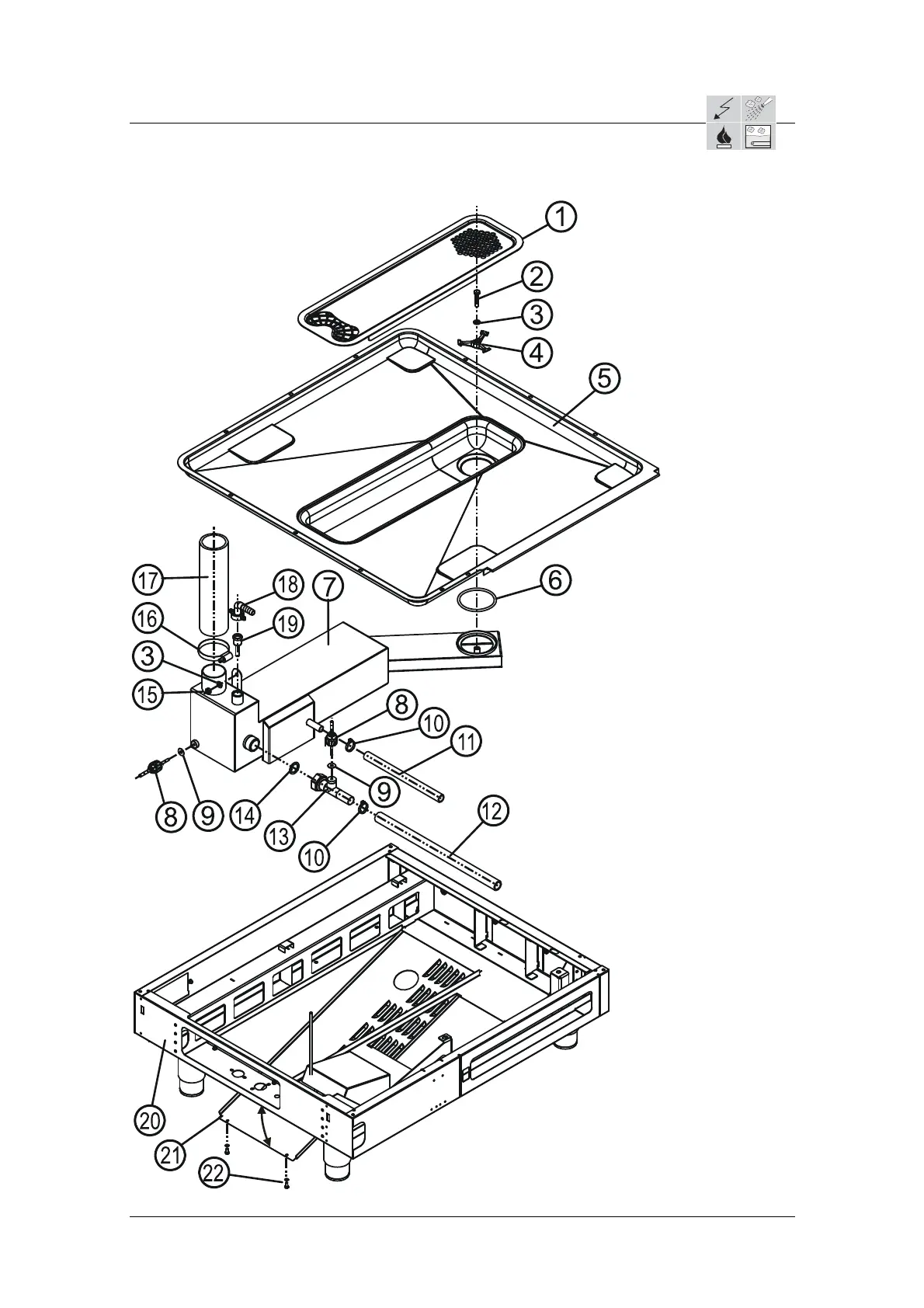

AS/11-2011 6_11e_Condenser removal and installation_b
1 = Cover
Demoisturizing tub
2 = Hexagon screw M6
3 = Washer 6,4
4 = Holder cross
condenser
5 = Oven chamber floor
6 = O-Ring 6015000
7 = Condenser
8 = Thermo couple probe
Standing unit 5002100
Table unit 5002101
9 = Thermo couple probe
seal 6005260
10 = Cable binder 4007087
11 = Hose to unit drip tray
12 = Bypass hose
13 = Bypass gauge pipe
2016007
14 = Copper seal 6015060
15 = Hexagon nut M6 self
locking 8004042
16 = Hose clamp
17 = Breather pipe
18 = Angle hose connection
19 = Insert nozzle
condenser
20 = Outer floor
21 = Floor clap
22 = Screw M5 with washer
Page 3 / 3
