Convotherm OGS 6.10 Service Handbook

Service Handbook OGB/OGS
AS/11-2011 Item 7016475 6_23e_Removing and replacing the burners_c.doc
Page 3 / 3

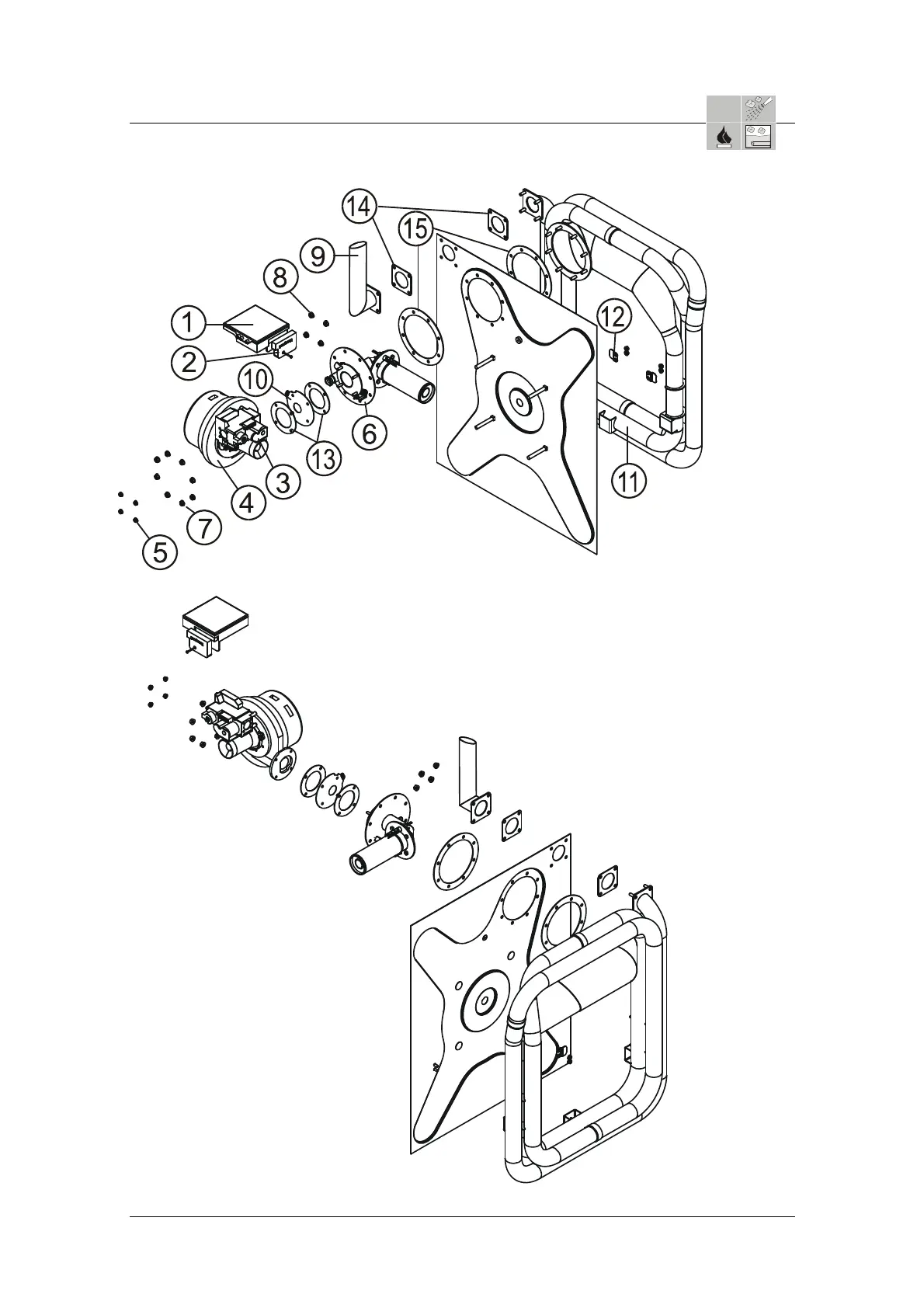

1 = Burner controller
2 = Burner controller cover
3 = Gas valve
4 = Burner fan
5 = Burner fan flange screws
6 = Burner insert
7 = Nuts on burner insert flange
8 = Nuts on exhaust gas pipe flange
9 = Exhaust gas pipe
10 = Restriction flange
11 = Heat exchanger
12 = Bracket for heat exchanger
13 = Restriction flange seals (2x)
14 = Gas exhaust seals (2x)
15 = Heat exchanger seals (2x)
