Convotherm OGS 6.10 Service Handbook

Service Handbook OEB/OES/OGB/OGS
Page 2 / 2

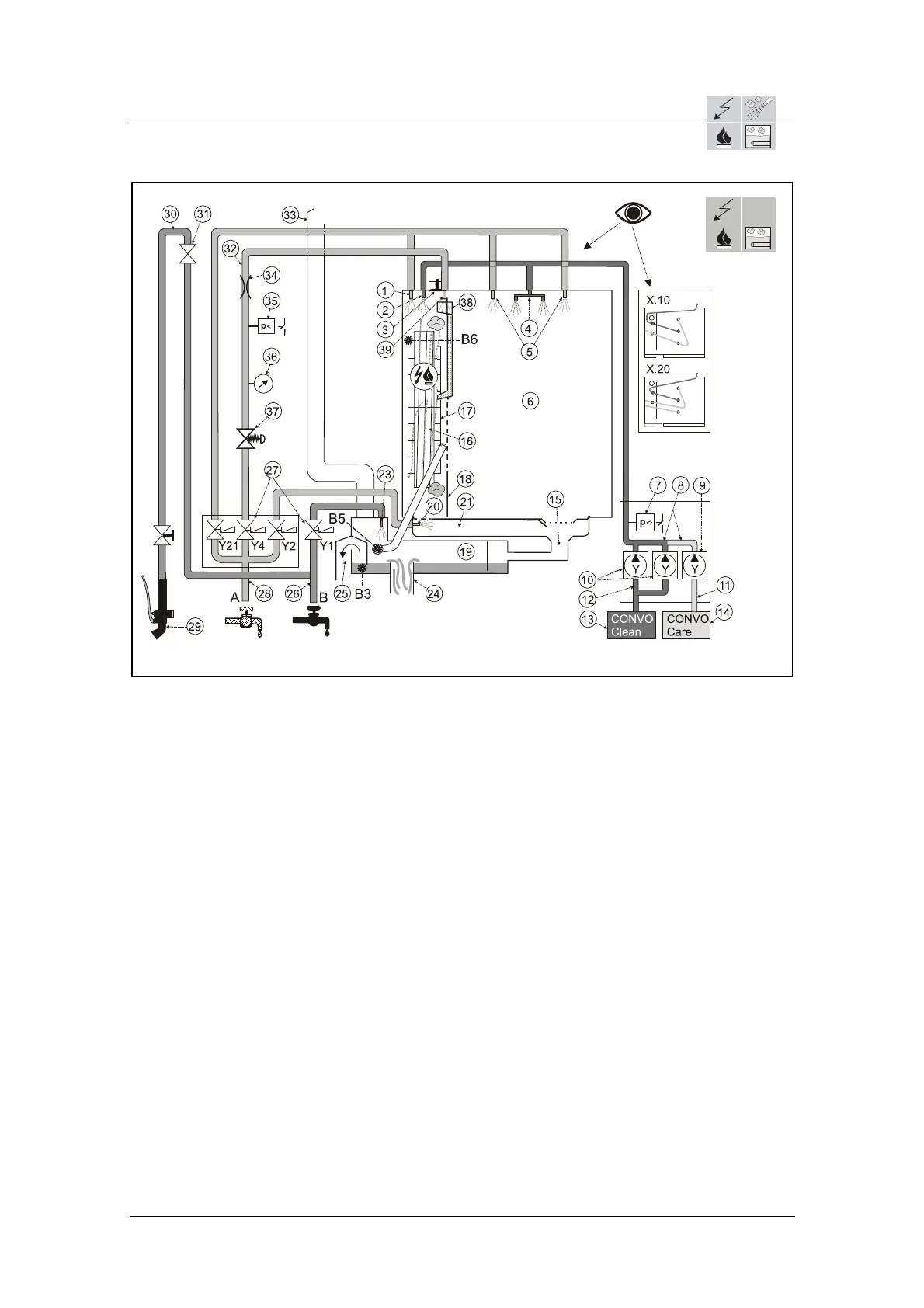

Unit with direct injection
1 = Injection nozzle Water (CONVOClean
system)
2 = Injection nozzle Cleaner (CONVOClean
system)
3 = Pressure compensation valve (Low
pressure protection)
4 = Rotor nozzle Cleaner (CONVOClean
system)
5 = Sprinkler nozzle Water (CONVOClean
system)
6 = Oven chamber
7 = Pressure switch CONVOClean system (S2)
8 = Hose connection pumps pressure side
9 = Pump CONVOCare (Y20)
10 = Cleaner pump (Y22 / Y23)
11 = Hose connection green CONVOCare-pump
suction side
12 = Hose connection red Cleaner-pump suction
side
13 = Cannister cleaning solution CONVOClean
14 = Cannister Nozzle spray solution
CONVOCare
15 = Oven drain
16 = Convection heating / heat exchanger
17 = Fan
18 = Suction panel
19 = Condenser
20 = Demoisturizing nozzle
21 = Demoisturizing tub
22 =
Bypass pipe
23 = Condenser cooling nozzle
24 = Condenser drain
25 = Condenser over flow
26 = Water connection B (hard water)
27 = Solenoid valve with Flow quantity limiter
28 = Water connection A ( Soft water)
29 = Hand shower
30 = Hand shower hose
31 = Stop valve Hand shower
32 = Water inlet
direct injection
33 = Ventilation pipe
34 = Reducer nozzle
35 = Pressure switch injection
36 = Manometer injection
37 = Pressure regulator
38 = Water injection
distributor
39 = Nozzle injection
