Optional equipment and accessories
Installation manual 77
Cleaning agent and detergent consumption
The table below shows the cleaning agent and detergent consumption in ml per cleaning cycle for
cleaning level 1:
Material Appliance size Consumption (ml)
CONVOClean forte 6.10 / 6.20 / 10.10 / 10.20 350
CONVOCare 6.10 / 6.20 / 10.10 / 10.20 200
CONVOClean forte 12.20 / 20.10 / 20.20 500
CONVOCare 12.20 / 20.10 / 20.20 200
Installation location for the cleaning agent and detergent canisters
Install the canisters as follows:
The canisters should be located for easy access beside the appliance on a flat surface.
The canisters must not be positioned above the level of the surface on which the appliance stands.
The level of the surface on which the canisters stand must not lie more than 1 m below the tube
connections on the appliance.
Arrangement of the cleaning-agent and detergent supply system:

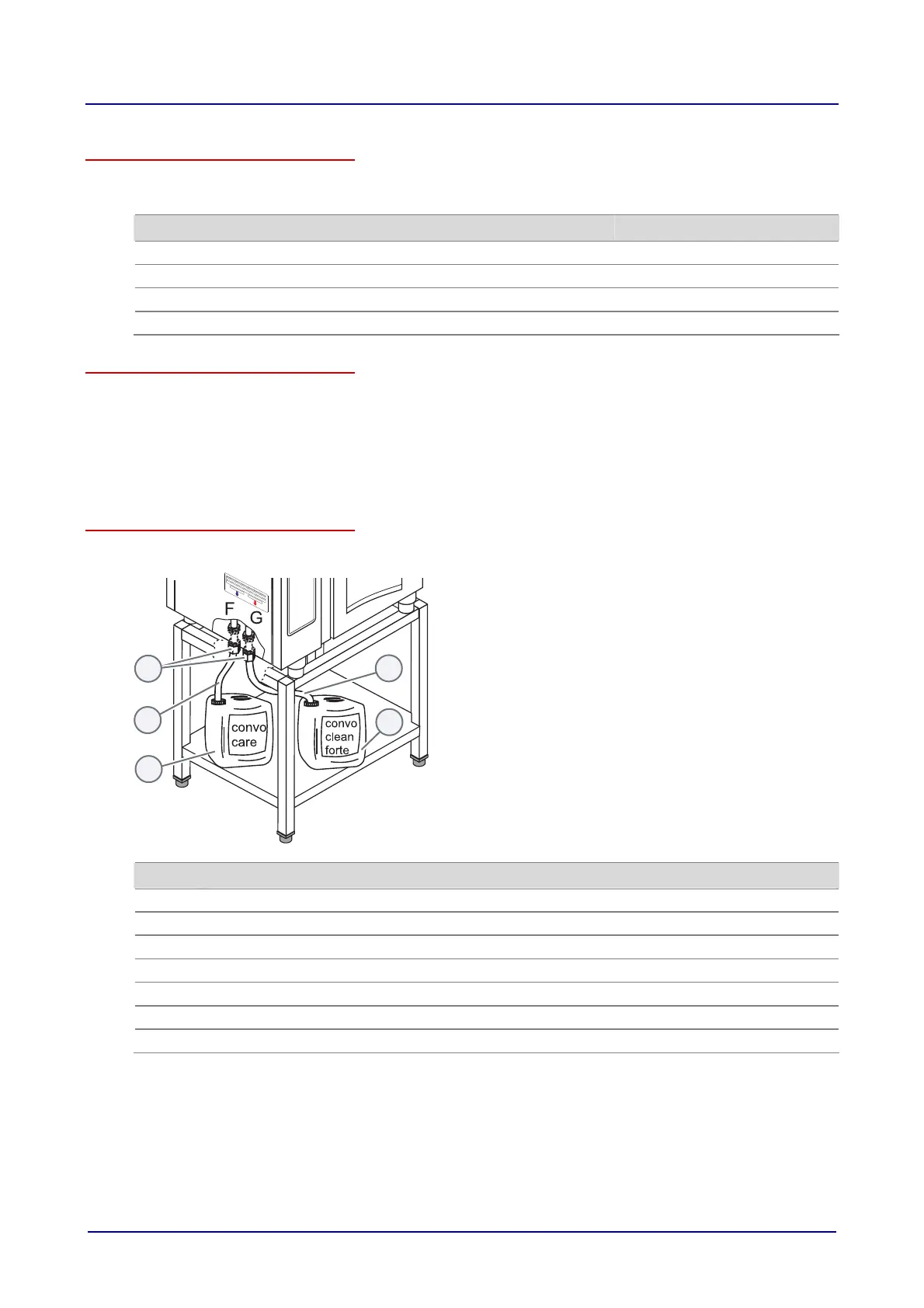

The following diagram shows the arrangement of the cleaning-agent and detergent supply system:
5
2
1
4
3
C
O
N
V
O
C
a
re
CONVOClean
Label Name
1
CONVOCare nozzle detergent canister
2
Delivery tube for nozzle-detergent suction nozzle (tube color: transparent)
3
D10 wire clip
4
Delivery tube for cleaner suction nozzle (tube color: red)
5
CONVOClean forte cleaning agent canister
F
Appliance connector for nozzle detergent supply
G
Appliance connector for cleaning agent supply
