Note 1: The current address of X and Y must be on the same circle as the destination
address.
Note 2: When the current address coincides with the target address, it indicates that
the motion track is a full circle.

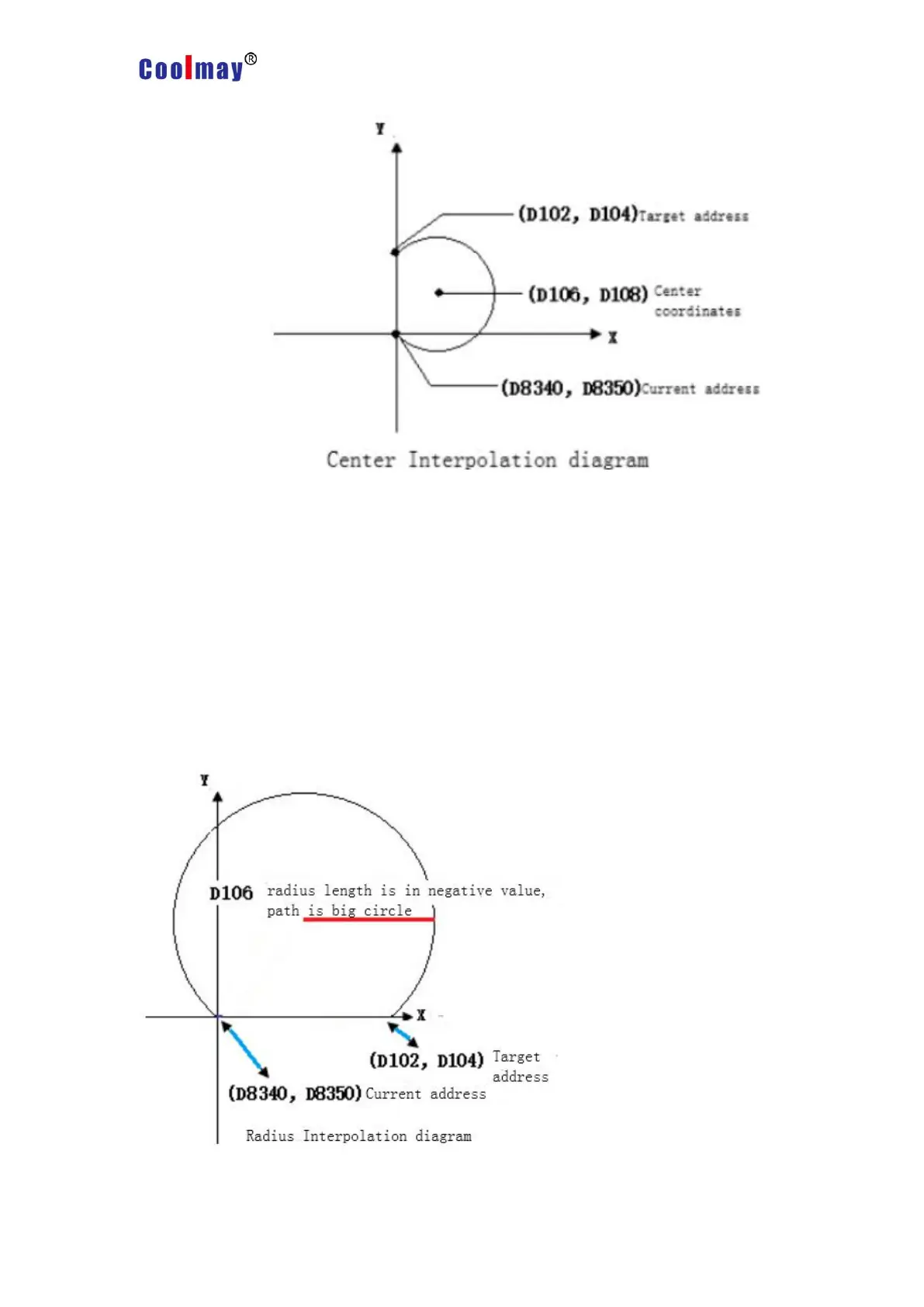

In the radius interpolation: D100 speed, D102 is the X-axis target address, D104 is the
Y-axis target address, and D106 is the radius length. Y0 and Y1 respectively pulse the
X-axis and Y-axis.
