Coolmay CX3G - Cx3 G Plc

CX3G/FX3GC PLC Programming manual
www.coolmayplc.com
3

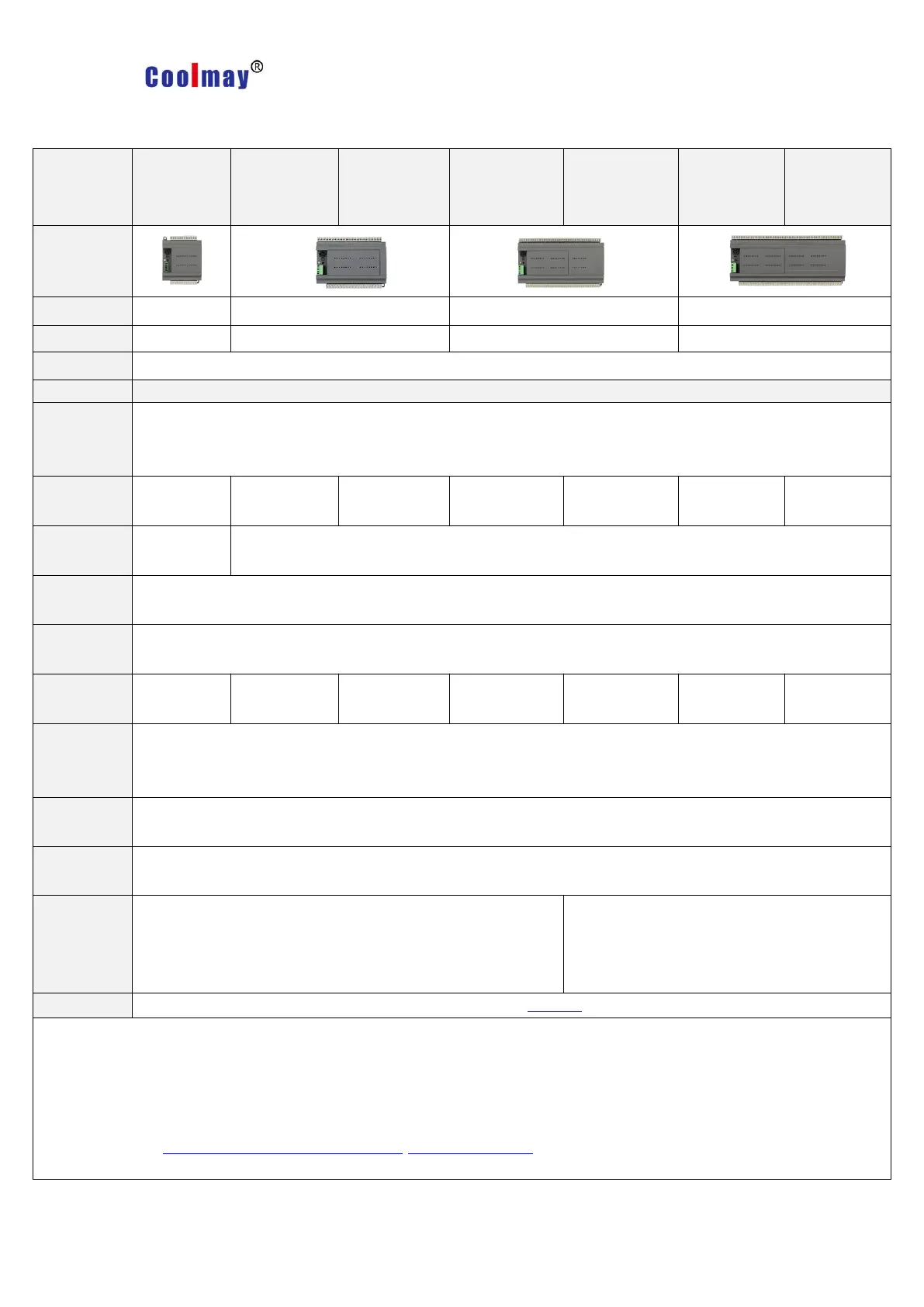

1.2 CX3G PLC
Model
CX3G-16M
CX3G-24M
CX3G-32M
CX3G-48M
CX3G-34M
CX3G-64M
CX3G-80M
Dimension
85*90*36mm
130*90*36mm
200*90*36mm
285*90*36mm
Cutout size
77*99mm
122*99mm
192*99mm
277*99mm
Installation
Fixed hole installation and DIN-Rail (35mm )
Features
Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register
I/O level
Input: Passive NPN, public terminal isolated
Transistor output: NPN
Relay output: Normally open dry contact
Digital I/O
8DI/8DO
12DI/12DO
16DI/16DO
24DI/24DO
18DI/16DO
32DI/32DO
40DI/40DO
DO type
Transistor(MT)
or mixed(2T6R)
Relay(MR) or transistor(MT) or mixed(MRT)
High speed
counting
6 channel single-phase 60KHz or AB(Z) phase 2 channel 60KHz, 1 channel 10KHz
High speed
pulse
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz
High-speed counting + high-speed pulse < 480KHz
Analog I/O
(optional)
Null
6AI/4AO
2AO
8AI/4AO
12AI/8AO
16AI/8AO
4AI/4AO
AI type
(optional)
Type E/K/S/T/J thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0-20mA/ 4-20mA
-5V~5V/ -10V~10V(except for CX3G-16M)
AO type
(optional)
0~10V/ 0-~5V/ 0~20mA/ 4~20mA
Default COM
port
1 Mini type B USB port, 1 Rs232
(
Interface terminal is mouse female port with 8 holes), 2 RS485 ports
Optional
Default 2 RS485 ports can be customized as
1 RS485, 1 RS232,
or 1 RS485, 1 CAN (2.0A/B),
or 1 RS232, 1 CAN (2.0A/B)
Default 2 RS485 ports can be customized as 1 RS485, 1
RS232,
CAN (2.0A/B) port is optional
Software
Compatible with WORKS 2
Suggested models
:
CX3G-16MT/MRT(-485/232) CX3G-24MT/MR/MRT(-6AD4DA -485/232)
CX3G-32MT/MR/MRT(-2AD -485/232) CX3G-34MT/MR/MRT(-12AD8DA -485/232)
CX3G-48MT/MR/MRT(-8AD4DA -485/232) CX3G-64MT/MR/MRT(-16AD8DA -485/232)
CX3G-80MT/MR/MRT(-4AD4DA -485/232)
Detailed info. refer to：COOLMAY CX3G PLC Programming Manual CX3G PLC user manual
