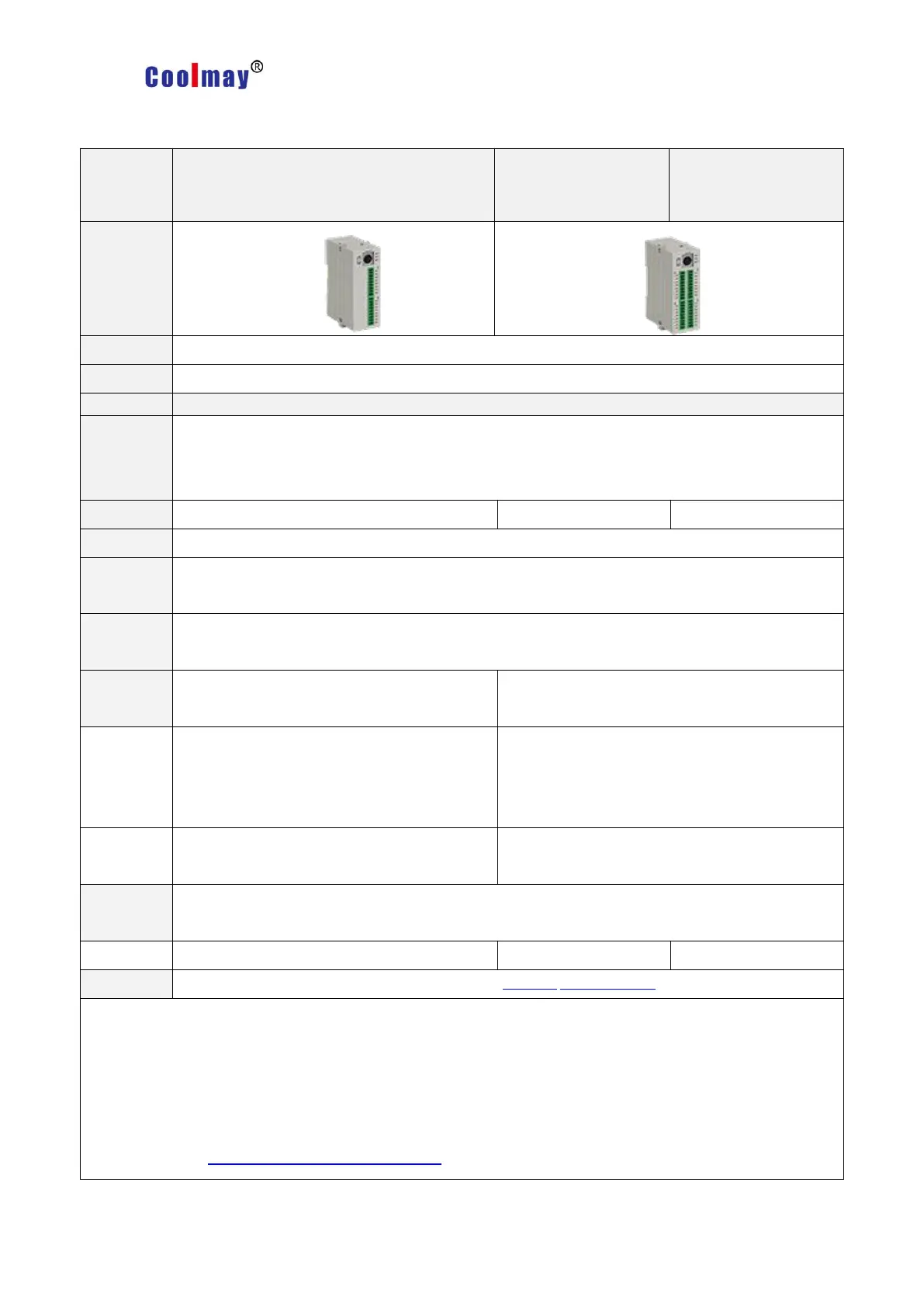

1.3 Models of FX3GC PLC
Model
FX3GC-16M
Communication/analog extension module can
be customized
FX3GC-30M-485
FX3GC-32M
Dimension
90*60*32mm
Installation
DIN-Rail (35mm ) mounting
Features
Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register
I/O level
Input: Passive NPN, public terminal isolated
Transistor Output: NPN
Relay output: NO contact
Digital I/O
8DI/8DO
16DI/14DO
16DI/16DO
DO Type
Relay(MR)/ Transistor (MT)/ Mixed (MRT)
High-speed
counting
Single phase 6 channel 60KHz or AB(Z) phase 2 channel 60KHz, 1 channel 10KHz
High-speed
pulse
8 channels,Y0-Y3 is 100KHz,Y4-Y7 is 10KHz
High-speed counting + high-speed pulse < 480KHz
Analog I/O
(optional)
6AI/4AO or 8AI/4AO or 8AI/6AO
NULL
AI type
(optional)
Type E/K/S/T/J thermocouple/ PT100/ PT1000/ NTC10K/
NTC50K/ NTC100K/
0~10V/ 0~5V/ 0-20mA/ 4-20mA
-5V~5V/ -10V~10V/ mixed
/
AO type
(optional)
0-10V/ 0-5V/ 0-20mA/ 4-20mA
/
Default COM
port
1 Mini type B USB port, 1 RS422(Interface terminal is 8 holes mouse female port)
Optional
2 RS485, 1 CAN(2.0A/B)
1 RS485
/
Software
Compatible with Mitsubishi WORKS 2/GX Developer8.86
Suggested models：FX3GC-16/32MT/MR/MRT FX3GC-30MT/MR/MRT(-485)
Analog and COM package of FX3GC-16M: 2 RS485, 1 CAN, 6AD4DA
Or 1 RS485, 1 CAN port, 8AD4DA
Or 1 RS485, 8AD/6DA
Or 2 RS485, 1 CAN
Detailed info. refer to：COOLMAY CX3G PLC Programming Manual
