CX3G/FX3GC PLC Programming manual
www.coolmayplc.com

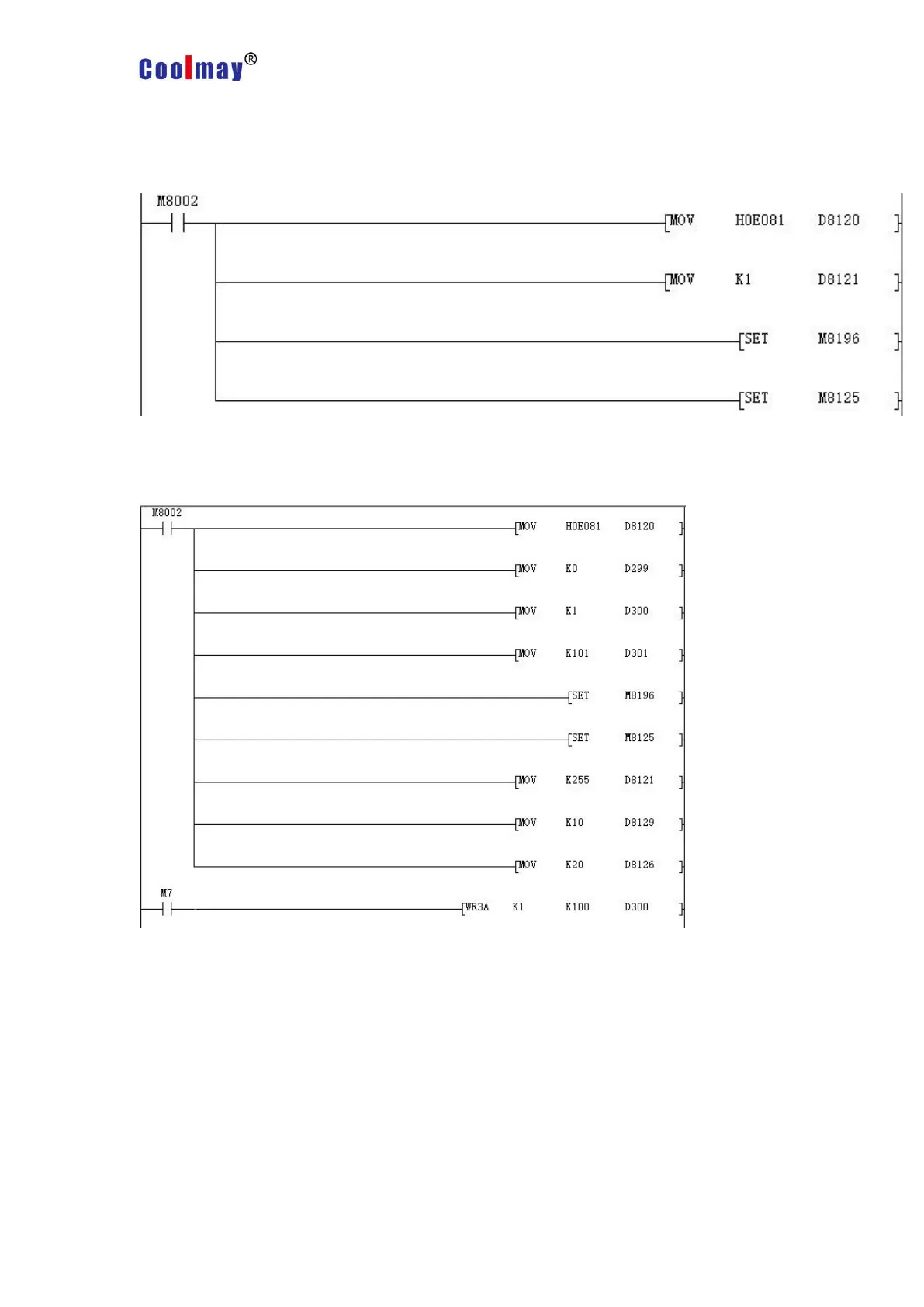

Program example:
Slave program:
Master program:
Program explanation:
This program represents that 1 data of the register D301 in the master PLC is written
to the PLC in Slave 1, and is stored in the register D100 of the slave PLC.
Use the serial port tool to monitor the results:
[2017:10:31:16:47:22][receive]01 06 00 64 00 6F 88 39
[2017:10:31:16:47:22][receive]01 06 00 64 00 6F 88 39
